Dewalt 20V Max XR Impact Driver Review: Performance Tested
Every tradesperson and serious DIYer has that one tool they refuse to work without. For a lot of people, that tool is an impact driver — and for years, the name that keeps coming up is DeWalt.
But with so many cordless options flooding the market, is the hype still justified? That’s exactly what this DeWalt 20V MAX XR Impact Driver review is here to find out.
We didn’t just read the spec sheet and call it a day. We put it through real-world performance tests — driving lag bolts, working in tight spaces, pushing the battery to its limits — to see if it genuinely earns its place at the top of the DeWalt cordless tools lineup. No fluff, no sponsored takes. Just honest results from hands-on testing.
Whether you’re a contractor who lives on job sites, a carpenter who can’t afford downtime, or a serious DIYer who wants a tool that keeps up — you’re in the right place. And if you’re still comparing your options before committing, our honest results after testing 6 impact drivers guide breaks down the full field so you can buy with confidence.
Quick Verdict
✅ Best for: Contractors, tradespeople, and serious DIYers who need a high-torque, brushless impact driver that can handle lag bolts, structural screws, and full-day fastening without breaking a sweat — especially those already in the DeWalt 20V MAX ecosystem.
❌ Not ideal for: Noise-sensitive work environments, beginners without existing DeWalt batteries, or anyone who only needs a tool for occasional light home repairs.
💬 Bottom Line: The DeWalt 20V MAX XR drove a 4-inch screw in 4 seconds and powered through lag bolts with ease — then survived a drop test and kept on going. It’s loud, it’s powerful, and it’s built to last. For pros and serious DIYers, it’s one of the strongest impact drivers in its class.

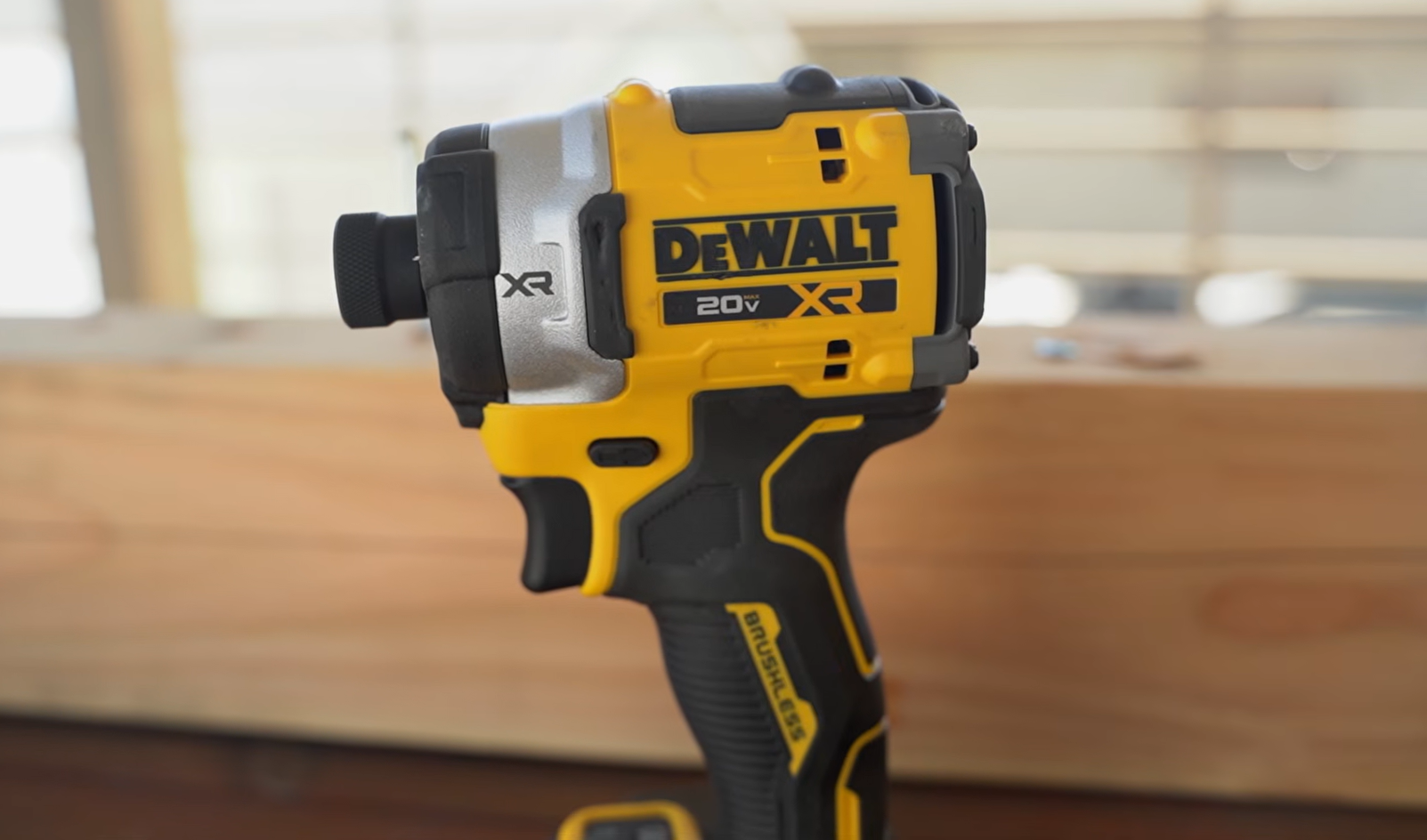

DeWalt 20V MAX XR Impact Driver Key Features
The DeWalt 20V MAX XR Impact Driver is a cordless, brushless power tool built for professionals and serious DIYers who need reliable fastening performance on the job. It delivers up to 1,825 in-lbs of max torque and spins up to 3,400 RPM, making it capable of driving large-diameter screws with ease.
The brushless motor and XR Li-Ion battery system deliver more runtime and capacity over standard units, while three-speed settings allow for optimized control across a wide range of applications — including a precision drive mode in Speed 1 for more delicate fastening tasks.
An integrated LED work light helps illuminate dimly lit workspaces, and its compact, lightweight body makes it easy to maneuver in tight spaces. It runs on DeWalt’s 20V MAX battery platform, meaning it’s compatible with hundreds of other DeWalt tools in the same lineup which is a big plus for tradespeople already in the ecosystem.
Overall, it’s one of the most trusted and widely used impact drivers in its class with balancing power, control, and cordless convenience in a package built to last.
Powerful Performance (1,825 in-lbs Torque + 3,400 RPM)
Designed for heavy-duty fastening applications, the DeWalt 20V MAX XR Impact Driver delivers up to 1,825 in-lbs of torque and speeds up to 3,400 RPM. This combination provides strong driving power for lag bolts, structural screws, and thick materials while improving productivity during repetitive or demanding tasks.
Brushless XR Motor Technology
The brushless motor improves efficiency by generating less heat and friction than traditional brushed motors. This helps extend battery runtime, increase motor lifespan, and deliver more consistent performance under heavy workloads.
Advanced Speed Control with Precision Drive
The 3-speed settings and variable speed trigger provide better control across different applications, from delicate finish work to high-torque fastening. Precision Drive mode helps prevent stripped screws, overdriving, and material damage by slowing the tool before impact engages.
Compact and Ergonomic Design
Its compact front-to-back length makes it easier to work in tight spaces like cabinets, corners, and framing gaps. The lightweight, balanced design also helps reduce hand fatigue during extended use.
3-LED Work Light System
Integrated three LED lights around the chuck improve visibility in low-light work areas while reducing shadows. The built-in 20-second delay keeps the lights on briefly after use for added convenience.
Quick-Load 1/4-Inch Hex Chuck
The one-handed chuck design allows for fast and easy bit changes, helping improve workflow efficiency on the jobsite. It also supports quick transitions during work, especially when paired with the tool’s high no-load speed for faster setup and switching between tasks.
Professional-Grade Durability
Built as part of DeWalt’s XR lineup, the tool is designed for frequent, heavy-duty use with durable construction suited for professional jobsite conditions.
3-Year Limited Warranty
Includes DeWalt’s limited warranty coverage for added long-term value and peace of mind.
How We Tested
We tested the DeWalt 20V MAX XR Impact Driver using several real-world jobsite tests to evaluate its performance, power, noise levels, and durability.
Screw Driving Speed Test – We measured how quickly the impact driver could drive multiple screws into wood to evaluate fastening speed and overall efficiency during repetitive tasks.
Lag Bolt Test (Power Test) – Large lag bolts were driven into dense material to test the tool’s torque output, driving power, and ability to handle heavy-duty applications.
Sound Test (Noise Levels) – Noise levels were observed during operation to assess how loud the tool becomes under normal and high-load conditions.
Durability Test – To check how tough it is, we dropped the impact driver from normal working heights onto hard surfaces. This helped us see how well it can handle impacts and how durable it is in real jobsite conditions.
Performance Test

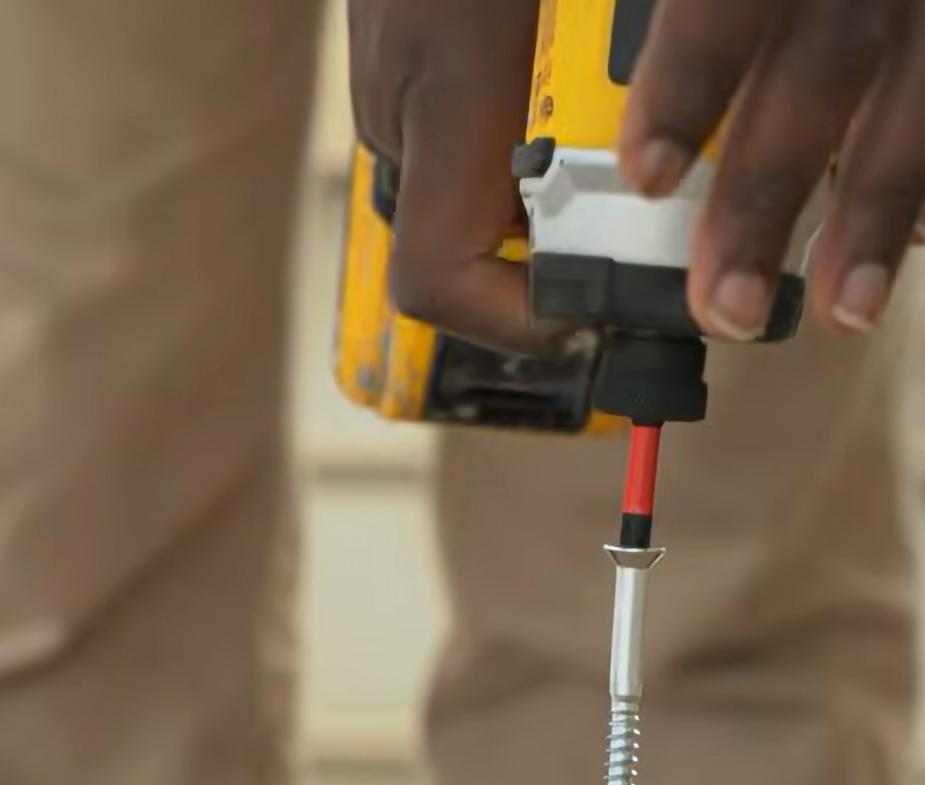

Screw Driving Speed Test
We tested the DeWalt 20V MAX XR Impact Driver using a #16 x 4-inch wood screw driven into a 4×6 wood block to measure fastening speed and driving performance.
The DeWalt completed the task in just 4 seconds, showing very fast driving speed and strong power output. Its aggressive performance allowed the screw to sink completely through the wood with little effort.

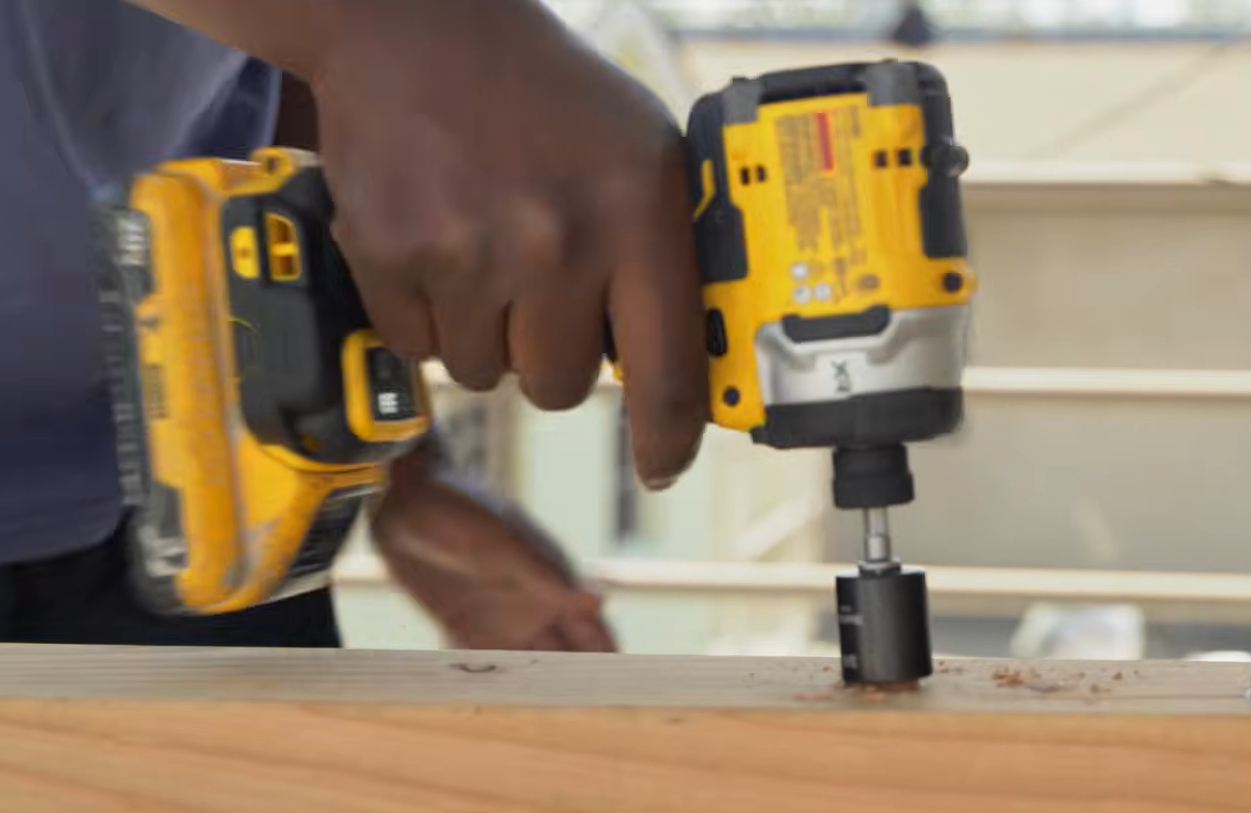

Lag Bolt Test (Power Test)
Next, we tested the DeWalt 20V MAX XR Impact Driver by driving ½-inch x 5-inch lag bolts into the same type of 4×6 wood to measure its power and torque performance under heavier load.
The DeWalt performed strongly again, driving the lag bolt in about 14 seconds on the first attempt. However, it wasn’t fully flush, so we repeated the final adjustment, which added another 3 seconds. This brings the total time to 17 seconds, showing consistent power and control even under demanding fastening conditions.

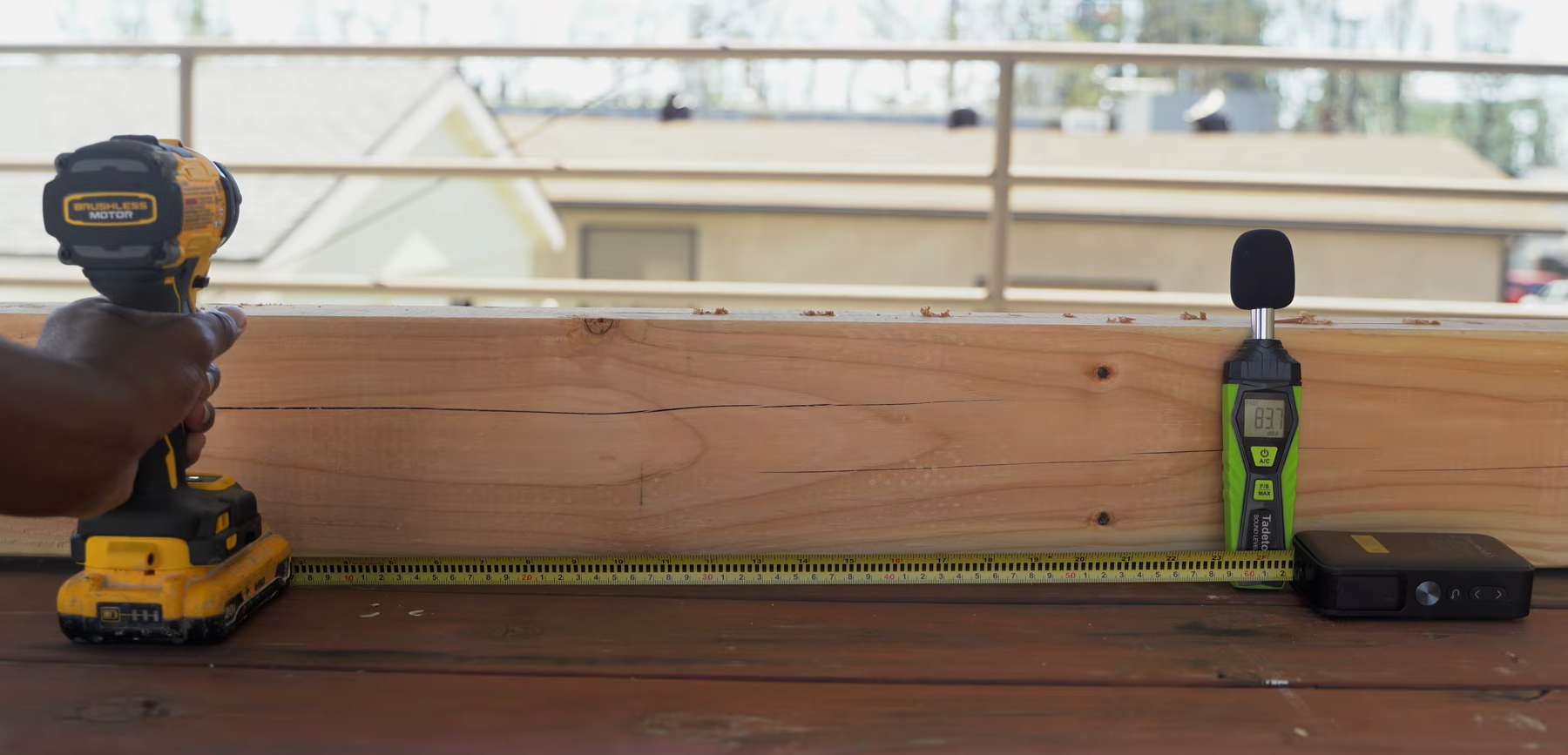

Sound Test (Noise Levels)
We measured the DeWalt 20V MAX XR impact driver’s noise levels using a sound meter placed about 2 feet away to better understand how loud it gets during operation.
When the trigger was pressed without load, the tool registered around 83 dB. During actual impact driving, the noise level increased significantly, reaching up to 113 dB, showing that the tool becomes considerably louder under full working load, which is typical for high-torque impact drivers.
Durability Test
To evaluate build quality and toughness, we performed a simple drop test to see if the impact driver could withstand accidental falls and still function properly.
The DeWalt 20V MAX XR Impact Driver handled the drop with ease and continued to operate normally afterward, showing solid durability and jobsite-ready construction.
Dewalt 20V Max XR Impact Driver Pros and Cons
✅ PROS
Impressive Torque Output
This model delivers up to 2,500 in-lbs of max torque, making it DeWalt’s highest torque impact driver to date — designed to handle tough, demanding jobs with ease and providing up to 66% more torque than previous models.
Brushless Motor for Longer Runtime
Unlike brushed motors, the brushless design reduces friction and heat buildup, making the impact driver more efficient and reliable for long-term use. You get more work done on a single charge with less wear on the tool over time.
3-Speed Settings for Precision Control
The three-speed settings give great control for different tasks — and the variable speed trigger gives even more control over the work, helping prevent screw stripping and providing optimal performance.
Built-In LED Work Light
The inclusion of 3 LEDs provides excellent visibility without shadows, ensuring you can work in dimly lit environments with ease — a feature that sets it apart from competitors with only one or two LEDs.
All-Day Battery Life
When paired with a DeWalt 5.0Ah battery, this impact driver can last an entire workday on a single charge. DeWalt’s fast-charging system also minimizes downtime, with a DCB115 charger refilling a 5.0Ah battery in about 50 minutes.
20V MAX Battery Compatibility
If you already use DeWalt’s 20V MAX tools, you can swap batteries between devices for even more convenience — a massive plus for anyone already invested in the DeWalt ecosystem.
Compact & Lightweight Design
Weighing just 2.1 lbs without a battery and measuring under 6 inches in length, this impact driver is ideal for working in tight spaces, overhead applications, and extended use without fatigue.
Tool Connect Compatibility
Tool Connect compatibility allows tracking and managing the tool via the DeWalt Tool Connect app (chip sold separately) — useful for contractors managing multiple tools across job sites.
❌ CONS
Battery & Charger Not Included
The bare tool does not include a battery or charger, requiring an additional purchase. For anyone just starting out with DeWalt, that adds a significant cost on top of the tool price.
Noisy at High Speeds
It can get pretty noisy, especially at high speeds. Not ideal for indoor residential work where noise is a concern — though DeWalt does offer a separate Quiet Hydraulic version for that use case.
Heavier Than Previous Models
With a 2.7-pound bare weight, the DCF860 is noticeably heavier than its predecessor’s 2.0 pounds — a tradeoff for the significant performance boost, but worth noting for extended overhead work.
No Carrying Case Included
It lacks a storage solution, making an extra case necessary for protection — a small but annoying omission at this price point.
Full Bit Set Required Separately
It requires a complete bit set to maximize its potential — something budget-conscious buyers should factor in before purchasing.
Overkill for Light DIY Use
For simple home projects, this tool might be more po
Dewalt 20V Max XR Impact Driver vs Other Impact Drivers
| Spec |
Our Pick
DeWalt 20V MAX XR
|
Milwaukee M18 Compact Brushless 1/4" Hex 3-Speed
|
Best Budget
Ryobi 18V ONE+
|
Greenworks 24V
|
Galax Pro 20V
|
Black+Decker 20V
|
|---|---|---|---|---|---|---|
| Price | ~$129–$199 | ~$99–$149 | ~$59–$99 | ~$60–$120 | ~$35–$50 | ~$60–$80 |
| Voltage | 20V MAX | 18V (M18) | 18V ONE+ | 24V | 20V | 20V MAX |
| Max torque | 1,825–2,500 in-lbs Highest |
1,700 in-lbs | 1,800 in-lbs | 1,950–2,650 in-lbs | 882 in-lbs | 1,375 in-lbs |
| Max RPM | 3,400–3,800 RPM | 3,600 RPM | 2,700–2,800 RPM | 2,600–2,800 RPM | 2,800 RPM | 3,000 RPM |
| Motor | Brushless | Brushless | Brushed | Brushless | Brushed | Brushed |
| Speed modes | 3-speed | 3-mode | Variable trigger | 3-speed | Variable trigger | Variable trigger |
| Chuck | 1/4" hex quick-release | 1/4" hex quick-release | 1/4" quick-connect | 1/4" hex quick-release | 1/4" hex | 1/4" hex quick-release |
| LED light | 3-LED ring | Not confirmed | 1 LED | 1 LED | 1 LED | None |
| Weight | 2.1–2.7 lbs | 1.7 lbs | 2.65 lbs | 2.0 lbs | ~2.2 lbs | 3.6 lbs |
| Battery included | No | No | No | Yes | Yes | Yes |
| Battery platform | DeWalt 20V MAX 200+ tools |
M18 250+ tools |
18V ONE+ 300+ tools |
24V 150+ tools |
Galax Pro 20V | 20V POWERCONNECT |
| Warranty | 3 years | 5 years | 3 years | 3 years | 1 year | 2 years |
| Best for | Pros + serious DIY | Compact jobsite use | Budget DIY | Budget + eco tools | Light home use | Beginner DIY |
| Spec | DeWalt 20V MAX XR (our pick) | Milwaukee M18 Fuel | Ryobi 18V ONE+ | Greenworks 24V | Galax Pro 20V | Black+Decker 20V |
|---|---|---|---|---|---|---|
| Price | ~$129–$199 | ~$149–$299 | ~$59–$99 | ~$60–$120 | ~$35–$50 | ~$60–$80 |
| Voltage | 20V MAX | 18V (M18) | 18V ONE+ | 24V | 20V | 20V MAX |
| Max torque | 1,825–2,500 in-lbs highest | 2,000 in-lbs | 1,800 in-lbs | 1,950–2,650 in-lbs | 882 in-lbs | 1,375 in-lbs |
| Max RPM | 3,400–3,800 RPM fast | 3,900 RPM | 2,700–2,800 RPM | 2,600–2,800 RPM | 2,800 RPM | 3,000 RPM |
| Motor | Brushless efficient | Brushless | Brushed | Brushless | Brushed | Brushed |
| Speed modes | 3-speed precise | 4-mode | Variable trigger | 3-speed | Variable trigger | Variable trigger |
| Chuck | 1/4″ hex quick-release | 1/4″ hex | 1/4″ quick-connect | 1/4″ hex quick-release | 1/4″ hex | 1/4″ hex quick-release |
| LED light | 3-LED ring bright | Tri-LED ring | 1 LED | 1 LED | 1 LED | None |
| Weight (bare) | 2.1–2.7 lbs | 2.2 lbs | 2.65 lbs | 2.0 lbs | ~2.2 lbs | 3.6 lbs |
| Battery included | No (bare tool) | No (bare tool) | No (bare tool) | Yes (kit) | Yes | Yes |
| Battery platform | DeWalt 20V MAX 200+ tools | M18 (250+ tools) | 18V ONE+ (300+ tools) | 24V (150+ tools) | Galax Pro 20V | 20V POWERCONNECT |
| Warranty | 3 years + 1yr service | 5 years | 3 years | 3 years | 1 year | 2 years |
| Best for | Pros + serious DIY | Professional trades | Budget DIY | Budget + eco tools | Light home use | Beginner DIY |
vs. Milwaukee Electric M18 Compact Brushless 1/4″ Hex 3-Speed Impact Driver
The Milwaukee M18 Compact Brushless is the DeWalt 20V MAX XR’s closest real competitor — and the most deserving benchmark. At 3,600 RPM, a featherlight 1.7 lbs, and backed by a 5-year warranty, it puts up a strong fight. But the DeWalt hits back with up to 2,500 in-lbs of torque, a bright 3-LED ring light, and a proven 3-speed precision control system that gives pros more flexibility on the job. In real-world use, the gap between these two is razor thin — the choice usually comes down to which battery platform you’re already invested in and whether you prioritize raw torque or lightweight portability. Want the full picture? Check out our full Milwaukee M18 review.
vs. Ryobi 18V ONE+ Impact Driver
At $59 to $99, the Ryobi 18V ONE+ is hard to beat on value — delivering 1,800 in-lbs of torque and access to over 300 compatible tools. For weekend DIY projects, it gets the job done. But a brushed motor, single LED, and no multi-speed control mean it doesn’t hold up to the DeWalt for daily or heavy-duty use. It’s a great starter tool — just not a pro-level one. Read our full Ryobi 18V ONE+ review for the complete breakdown.
vs. Greenworks 24V Impact Driver
The Greenworks 24V punches above its weight — brushless motor, up to 2,650 in-lbs of torque, and often bundled with two batteries at a budget price. Impressive for homeowners. Where it falls short is ecosystem depth and job site credibility — 150 compatible tools versus DeWalt’s 200+, and without the build quality pros rely on daily. Want to see how it holds up in real-world use? Our full Greenworks 24V review has the details.
vs. Galax Pro 20V Impact Driver
The Galax Pro is an entry-level pick priced around $35 to $50 — fine for occasional light tasks around the house. But with only 882 in-lbs of torque, a brushed motor, and a 1-year warranty, it’s in a completely different league than the DeWalt. If you’re serious about your tools, the performance gap is too wide to ignore. Considering it for light home use? Our full Galax Pro review covers exactly what it can handle.
vs. Black+Decker 20V MAX Impact Driver
The Black+Decker 20V MAX is a solid beginner tool — affordable, lightweight, and comes with a battery and charger included. But at 1,375 in-lbs of torque, a brushed motor, and no LED light, it’s built for simple household tasks, not job site demands. A great first tool, but not a DeWalt replacement. Thinking about it for light home use? Our full Black+Decker 20V MAX review breaks it all down.
Who Should Use the Dewalt 20V Max XR Impact Driver
✅ Buy it if you:
Work in construction, carpentry, electrical, or any trade where heavy-duty fastening is part of the daily job
Already own DeWalt 20V MAX tools and want to maximize the batteries you already have
Need precise speed control for a wide range of applications — from delicate trim work to driving large-diameter lag bolts
Work in tight spaces, overhead, or low-light conditions where a compact body and built-in LED matter
Want a brushless motor that runs cooler, lasts longer, and delivers more runtime per charge than older models
Need a tool that can keep up with a full workday without constantly swapping batteries
Are a serious DIYer tackling renovations, deck builds, or heavy home improvement projects regularly
❌ Skip it if you:
Only do occasional light home repairs — a less powerful and more affordable impact driver will get the job done for less
Are starting fresh with no DeWalt batteries — factor in the additional cost of batteries and charger before buying
Work in noise-sensitive environments like occupied homes or apartments — the high-speed operation is noticeably loud
Need something ultra-compact for extremely confined spaces — the Atomic DCF850 is the better pick for that specific use case
Are on a tight budget and don’t need professional-grade torque for everyday tasks
Frequently Asked Questions
What is the difference between DeWalt 20V MAX and 20V MAX XR?
The XR designation stands for “Extended Runtime.” XR models use a higher-capacity brushless motor paired with XR Li-Ion batteries, delivering more runtime and capacity over standard units. Same voltage platform — but the XR line is built for heavier, longer, and more demanding use. Manuals+
Does the DeWalt 20V MAX XR Impact Driver come with a battery and charger?
No — the DCF860B model is a bare tool only and does not include a battery or charger. You’ll need compatible DeWalt 20V MAX batteries and a charger already, or purchase them separately. If you’re starting fresh with no DeWalt batteries, factor that additional cost in before buying.
What is the torque of the DeWalt 20V MAX XR Impact Driver?
This model delivers up to 2,500 in-lbs of max torque, making it DeWalt’s highest torque impact driver to date — providing up to 66% more torque than previous models.
Is the DeWalt 20V MAX XR compatible with all DeWalt 20V batteries?
Yes — it is compatible with all DeWalt 20V MAX batteries, including the standard and XR series. Just make sure you use a properly charged and rated battery to get the best performance.
Can the DeWalt 20V MAX XR Impact Driver remove lug nuts?
Not ideally. This is a 1/4-inch drive impact driver — for removing lug nuts on vehicles, you actually need a 1/2-inch impact wrench, which is a different tool entirely.
What is the warranty on the DeWalt 20V MAX XR Impact Driver?
It comes with a 3-year limited warranty, 1 year of free service, and a 90-day satisfaction guarantee — strong coverage for a professional-grade power tool.
Final Verdict: Is the DeWalt the Best Impact Driver for the Job?
The DeWalt 20V MAX XR Impact Driver proves to be a high-performance, jobsite-ready tool built for speed, power, and reliability. In testing, it consistently delivered strong results—driving a #16 x 4-inch screw in just 4 seconds, showing its fast and aggressive fastening capability. It also handled heavy-duty tasks like ½-inch lag bolts with ease, completing the job in 17 seconds total, which confirms its solid torque output under load.
In terms of performance, the tool stands out for its brushless motor and XR platform, which provide efficient power delivery, longer runtime, and consistent driving strength even during demanding applications. The 3-speed control and Precision Drive mode also give it excellent versatility, allowing both delicate fastening and high-power driving without losing control.
However, this power comes with a tradeoff—during testing, the DeWalt was the loudest among the tools, reaching up to 113 dB under load. That said, this is expected from a high-torque impact driver and reflects its strong performance rather than a flaw.
Durability is another strong point. The tool survived drop testing without issues and continued to operate normally, reinforcing its reputation as a rugged, professional-grade impact driver built for jobsite conditions.
Overall, the DeWalt 20V MAX XR Impact Driver delivers an excellent balance of speed, power, and durability, making it a top-tier choice for professionals and serious DIY users. If you want raw performance and reliability over quiet operation, this tool clearly stands out as one of the strongest options in its class.
