Milwaukee M18 Impact Driver Review: Real Tests & Honest Results
If you’re shopping for a compact, reliable impact driver that doesn’t sacrifice performance for portability, the Milwaukee M18 Compact Brushless 1/4″ Hex 3-Speed Impact Driver is one of the most trusted options in its class. It’s built for tradespeople and serious DIYers who need consistent fastening power in tight spaces, backed by Milwaukee’s brushless motor technology, 3-mode drive control, and the wide M18 battery ecosystem. Despite its small 4.4-inch, 1.7 lb design, it still delivers strong everyday performance for driving screws, lag bolts, and general jobsite work without feeling underpowered.
In this review, we break down how it actually performs in real-world use. But if you want a broader view of how it compares to other top models, check out our full comparison test of six impact drivers.
Quick Verdict
✅ Best for: Tradespeople, electricians, plumbers, carpenters, and serious DIYers who need a lightweight, compact, and reliable brushless impact driver for daily jobsite use especially those already invested in the M18 battery ecosystem.
❌ Not ideal for: Casual homeowners who only pick up a power tool a few times a year, budget-conscious buyers looking for the cheapest option, or professionals who regularly tackle heavy-duty lag bolt and structural fastening work where maximum torque is non-negotiable.
💬 Bottom Line: The Milwaukee M18 Compact Brushless 1/4″ Hex 3-Speed isn’t the most powerful impact driver on the market, but it’s one of the most practical. It’s light enough to use all day, compact enough to fit where others can’t, backed by a best-in-class 5-year warranty, and supported by one of the strongest battery ecosystems in the industry. For the price, it’s hard to beat.

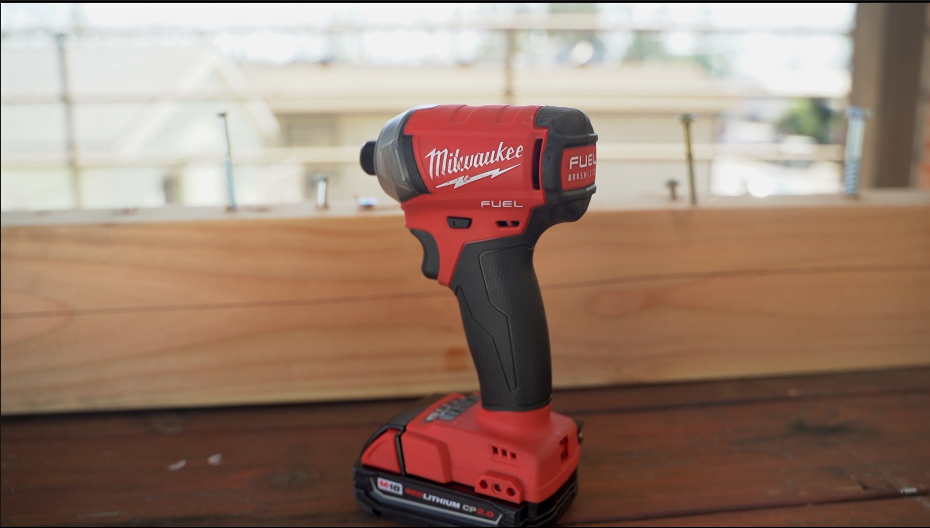

Milwaukee M18 Compact Brushless Impact Driver: Key Features
The Milwaukee M18 Compact Brushless Impact Driver is a cordless power tool designed for fast and efficient fastening in a wide range of applications. It delivers strong torque in a compact, easy-to-handle body, making it suitable for both professional jobsite work and general construction tasks — including driving self-tapping screws into metal, wood, and other materials.
Powered by the M18 battery system, it offers reliable performance and portability without being tied to a cord. Its design focuses on speed, control, and accessibility in tight spaces, making it a go-to tool for driving screws and bolts quickly and efficiently.
1,700 in-lbs of Torque
This impact driver delivers dependable fastening power for a wide range of tasks, from everyday screwdriving to more demanding jobs like driving self-tapping screws through sheet metal and structural materials.
3 Drive Control Modes
The three speed modes give users better control depending on the task — whether you need precision for small screws or full power for tougher fastening jobs. This helps reduce material damage and improves overall efficiency.
Brushless Motor Technology
The brushless motor delivers faster speed, longer runtime, and improved durability by reducing internal friction and heat buildup. This results in more power with more consistent performance and better battery efficiency compared to brushed alternatives.
Compact and Jobsite-Friendly Design
At just 4.4 inches in length, its compact body allows it to fit into tight or awkward spaces, making it especially useful for overhead work, cabinetry, and confined areas where larger tools struggle to reach.
Built-In LED Work Light
The integrated LED light improves visibility in low-light or enclosed work areas, helping increase accuracy and safety when working in dim conditions.
Quick-Change 1/4″ Hex Chuck
The quick-change chuck system allows fast and easy bit swaps without slowing down workflow, especially useful for repetitive fastening tasks.
How We Tested
To assess how well the Milwaukee M18 Impact Driver performs, we put it through a series of practical jobsite-style tests focused on speed, power, noise, and durability.
For fastening performance, we conducted a screw driving test by timing how quickly the tool could drive multiple screws into wood. This helped us gauge its efficiency and consistency during repetitive tasks.
We also ran a lag bolt test to measure its power. By driving large lag bolts into dense material, we were able to evaluate the driver’s torque output and how well it handles more demanding applications.
To understand noise levels, we observed how loud the tool gets during both standard use and under heavier loads, giving a clearer picture of what to expect on the job.
Finally, we evaluated durability by performing drop tests from typical working heights onto hard surfaces. This helped us assess its build quality, impact resistance, and how well it holds up over time in real jobsite conditions.
Performance Test

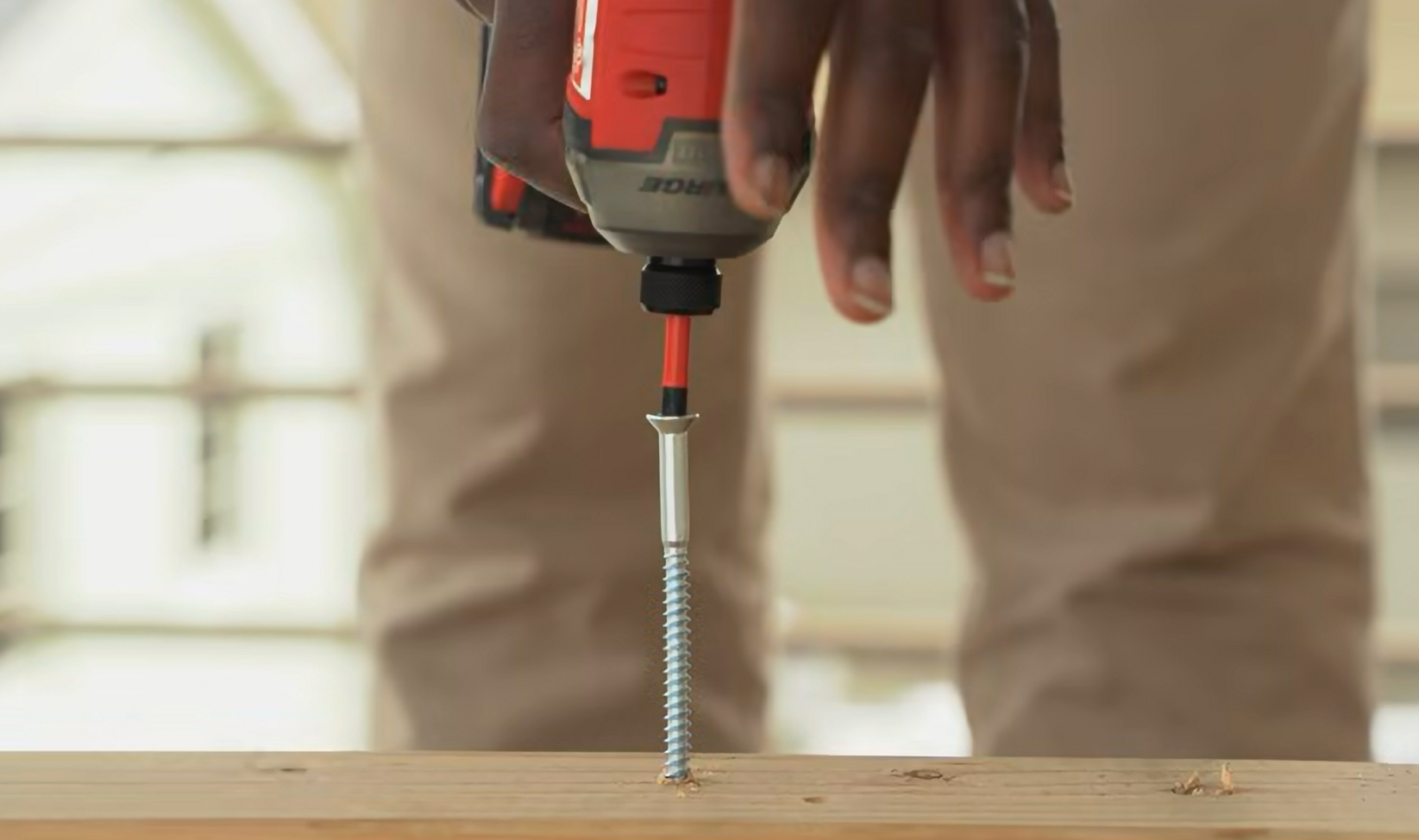

Screw Driving Speed Test
For this test, we evaluated how quickly the tool could drive screws into wood. We used #16 x 4-inch wood screws and drove them into a 4×6 wood block to simulate a typical fastening task.
The impact driver started off strong with fast initial speed, but performance slowed as the screw went deeper into the wood. The screw was fully driven and flush with the surface at around 11 seconds.

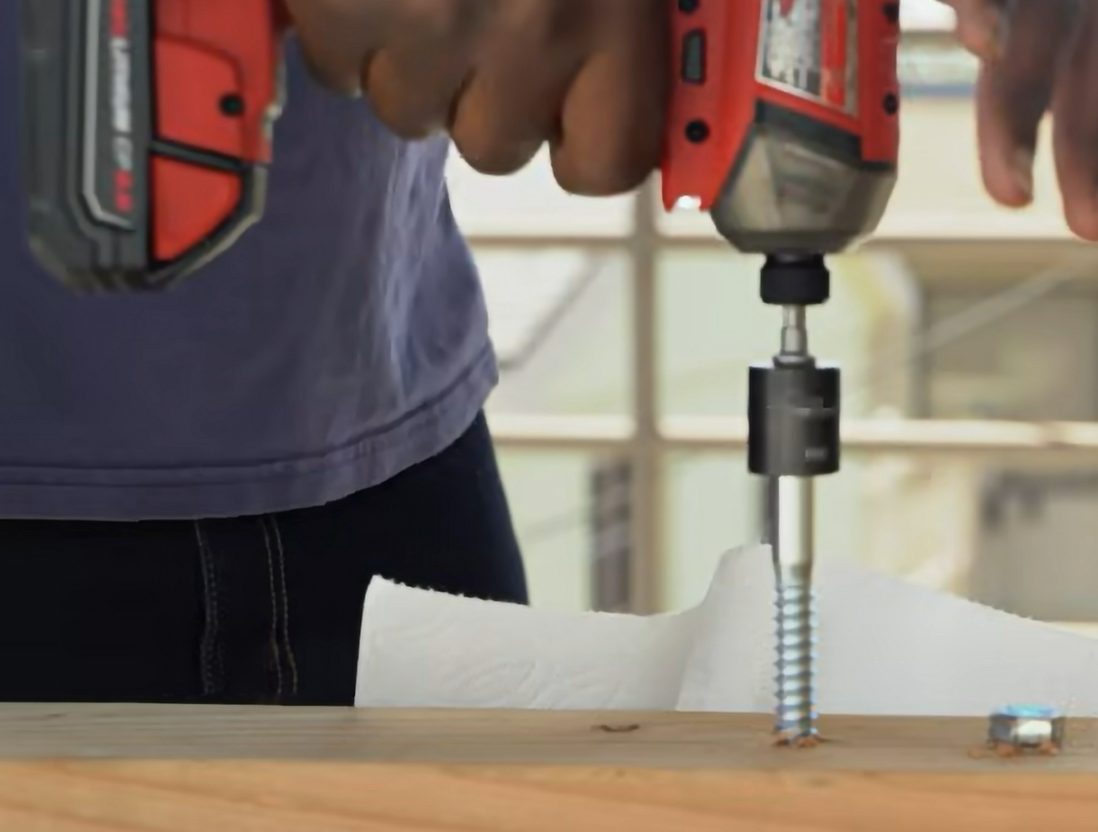

Lag Bolt Test (Power Test)
Next, we tested how well the impact driver handles heavy-duty fastening using ½-inch x 5-inch lag bolts driven into the same wood material.
While the tool showed strong performance initially, it struggled to maintain power as the bolt went deeper. We also adjusted the angle during operation, but this didn’t improve performance. The driver gradually lost speed and eventually stopped turning the bolt at around 22 seconds.

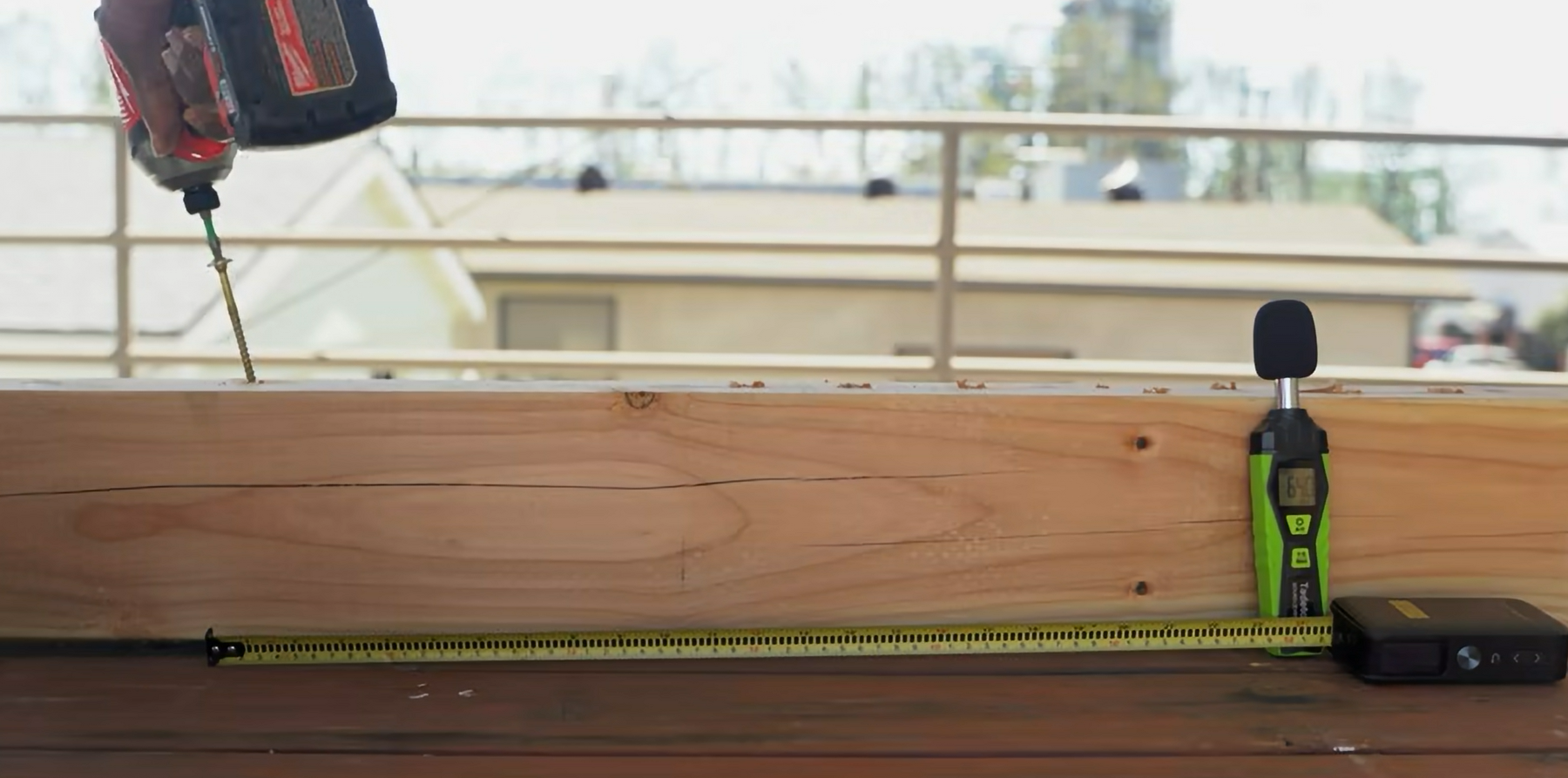

Sound Test (Noise Levels)
Since impact drivers can be quite loud, we measured noise levels during operation using a sound meter placed approximately 2 feet from the tool.
At idle (trigger pressed without load), the Milwaukee M18 reached up to 78 decibels. When actively driving a screw, noise levels increased significantly, peaking at around 96 decibels during impact.
Durability Test (Drop Test)
Durability is an important factor when choosing an impact driver, so we conducted a drop test to see how well the tool would hold up under impact and whether it would still function afterward.
After being dropped, the power tool showed no issues. It powered back on immediately and continued operating normally, indicating it can withstand accidental drops and typical jobsite wear.
Milwaukee M18 Impact Driver Pros and Cons
✅ PROS
Extremely powerful for its size
Brushless motor for longer runtime and durability
Compact and lightweight design
Compatible with the entire M18 battery ecosystem
4-mode drive control for precision
LED lighting for low-light work
Low vibration for reduced fatigue
Fast charging with M18 batteries
Excellent build quality and durability
Widely available replacement parts and service centers
❌ CONS
Higher price point compared to competitors
Battery and charger often sold separately
Can be overkill for light home use
Slightly heavier than some rival models
No built-in battery fuel gauge on all models
Belt clip placement can feel awkward for some users
Loud operation compared to some competitors
Milwaukee M18 Impact Driver vs Other Impact Drivers
| Spec |
Featured Pick
Milwaukee M18 Compact Brushless 1/4" Hex 3-Speed
|
Pro Pick
DeWalt 20V MAX XR
|
Budget Pick
Ryobi 18V ONE+
|
Greenworks 24V
|
Galax Pro 20V
|
Black+Decker 20V
|
|---|---|---|---|---|---|---|
| Price | ~$99–$149 | ~$129–$199 | ~$59–$99 | ~$60–$120 | ~$35–$50 | ~$60–$80 |
| Voltage | 18V (M18) | 20V MAX | 18V ONE+ | 24V | 20V | 20V MAX |
| Max torque | 1,700 in-lbs | 1,825–2,500 in-lbs Highest |
1,800 in-lbs | 1,950–2,650 in-lbs | 882 in-lbs | 1,375 in-lbs |
| Max RPM | 3,600 RPM | 3,400–3,800 RPM | 2,700–2,800 RPM | 2,600–2,800 RPM | 2,800 RPM | 3,000 RPM |
| Motor | Brushless Efficient |
Brushless | Brushed | Brushless | Brushed | Brushed |
| Speed modes | 3-mode Precise |
3-speed | Variable trigger | 3-speed | Variable trigger | Variable trigger |
| Chuck | 1/4" hex quick-release | 1/4" hex quick-release | 1/4" quick-connect | 1/4" hex quick-release | 1/4" hex | 1/4" hex quick-release |
| LED light | Not confirmed | 3-LED ring Bright |
1 LED | 1 LED | 1 LED | None |
| Weight (bare) | 1.7 lbs Lightest |
2.1–2.7 lbs | 2.65 lbs | 2.0 lbs | ~2.2 lbs | 3.6 lbs |
| Battery included | No Bare tool |
No Bare tool |
No Bare tool |
Yes Kit |
Yes | Yes |
| Battery platform | M18 250+ tools |
DeWalt 20V MAX 200+ tools |
18V ONE+ 300+ tools |
24V 150+ tools |
Galax Pro 20V | 20V POWERCONNECT |
| Warranty | 5 years Longest |
3 years + 1yr service |
3 years | 3 years | 1 year | 2 years |
| Best for | Compact jobsite use | Pros + serious DIY | Budget DIY | Budget + eco tools | Light home use | Beginner DIY |
Milwaukee M18 Impact Driver vs Other Impact Drivers
Spec | Milwaukee M18 Compact Brushless 1/4″ Hex 3-Speed | DeWalt 20V MAX XR | Ryobi 18V ONE+ | Greenworks 24V | Galax Pro 20V | Black+Decker 20V |
|---|---|---|---|---|---|---|
Price | ~$99–$149 | ~$129–$199 | ~$59–$99 | ~$60–$120 | ~$35–$50 | ~$60–$80 |
Voltage | 18V (M18) | 20V MAX | 18V ONE+ | 24V | 20V | 20V MAX |
Max torque | 1,700 in-lbs | 1,825–2,500 in-lbs highest | 1,800 in-lbs | 1,950–2,650 in-lbs | 882 in-lbs | 1,375 in-lbs |
Max RPM | 3,600 RPM | 3,400–3,800 RPM | 2,700–2,800 RPM | 2,600–2,800 RPM | 2,800 RPM | 3,000 RPM |
Motor | Brushless efficient | Brushless | Brushed | Brushless | Brushed | Brushed |
Speed modes | 3-mode precise | 3-speed | Variable trigger | 3-speed | Variable trigger | Variable trigger |
Chuck | 1/4″ hex quick-release | 1/4″ hex quick-release | 1/4″ quick-connect | 1/4″ hex quick-release | 1/4″ hex | 1/4″ hex quick-release |
LED light | Not confirmed | 3-LED ring bright | 1 LED | 1 LED | 1 LED | None |
Weight (bare) | 1.7 lbs lightest | 2.1–2.7 lbs | 2.65 lbs | 2.0 lbs | ~2.2 lbs | 3.6 lbs |
Battery included | No (bare tool) | No (bare tool) | No (bare tool) | Yes (kit) | Yes | Yes |
Battery platform | M18 — 250+ tools | DeWalt 20V MAX — 200+ tools | 18V ONE+ — 300+ tools | 24V — 150+ tools | Galax Pro 20V | 20V POWERCONNECT |
Warranty | 5 years longest | 3 years + 1yr service | 3 years | 3 years | 1 year | 2 years |
Best for | Compact jobsite use | Pros + serious DIY | Budget DIY | Budget + eco tools | Light home use | Beginner DIY |
vs. DeWalt 20V MAX XR Impact Driver
The DeWalt 20V MAX XR is the closest competitor to the Milwaukee M18 Compact Brushless, priced between $129 and $199. It delivers higher torque at up to 2,500 in-lbs and features a bright 3-LED ring light — two areas where it has a clear edge. That said, it’s heavier at up to 2.7 lbs and costs more. If you’re not already in the DeWalt ecosystem, the Milwaukee offers comparable performance at a lower entry price with a longer 5-year warranty. Read our full DeWalt 20V MAX XR review for the complete breakdown.
vs. Ryobi 18V ONE+ Impact Driver
At $59 to $99, the Ryobi 18V ONE+ is one of the most affordable options on the market with access to over 300 compatible tools in its battery ecosystem. It delivers 1,800 in-lbs of torque which is actually slightly more than the Milwaukee on paper. However, its brushed motor, single LED, and variable trigger-only control make it a step down in precision and long-term durability. It’s a solid choice for occasional DIY use, but not built for daily jobsite demands. Read our full Ryobi 18V ONE+ review for the complete breakdown.
vs. Greenworks 24V Impact Driver
The Greenworks 24V runs $60 to $120 and actually posts impressive torque numbers at up to 2,650 in-lbs. It also comes with a battery included, which adds value upfront. However, its battery ecosystem is limited to around 150 compatible tools, and its RPM tops out at 2,800 compared to the Milwaukee’s 3,600. For eco-conscious buyers who want a budget-friendly brushless option, it’s worth considering — but the Milwaukee wins on speed, ecosystem size, and brand reliability. Read our in-depth Greenworks 24V review for the complete breakdown.
vs. Galax Pro 20V Impact Driver
The Galax Pro 20V is the most affordable option on this list at just $35 to $50, making it tempting for light home use. But the numbers tell the story — only 882 in-lbs of torque, a brushed motor, and a limited 1-year warranty put it in a completely different category from the Milwaukee. It works fine for hanging shelves or assembling furniture, but it’s not designed for demanding or repeated use. Read our full Galax Pro 20V review for the complete breakdown.
vs. Black+Decker 20V Impact Driver
The Black+Decker 20V sits in the $60 to $80 range and comes with a battery included, which helps offset its limitations. It offers 1,375 in-lbs of torque, a brushed motor, and no LED light — making it one of the weaker performers in this comparison. It’s a decent beginner tool for light household tasks, but falls short on torque, motor quality, and weight at 3.6 lbs. For anyone stepping up from beginner to regular use, the Milwaukee is a far better long-term investment. Read our full Black+Decker 20V review for the complete breakdown.
Who Should Use the Milwaukee M18 Impact Driver
✅ Best For:
Professional contractors who need reliable, heavy-duty performance on job sites daily
Electricians and plumbers who frequently drive screws and fasteners in tight spaces
Carpenters and woodworkers who need precise torque control for delicate materials
Auto mechanics who need high torque for loosening and tightening bolts
Deck and fence builders who drive hundreds of screws in a single day
Remodelers and renovators who tackle a wide variety of fastening tasks
Milwaukee M18 tool ecosystem users who already own M18 batteries and want to maximize their investment
❌ Not Ideal For:
Casual DIYers who only use an impact driver a few times a year
Budget-conscious buyers who don’t need professional-grade performance
Beginners who may find the power overwhelming for simple home tasks
Light-duty users who mostly drive small screws into soft materials
Frequently Asked Questions
What is the difference between the Milwaukee M18 Compact Brushless and the M18 FUEL?
The M18 FUEL is Milwaukee’s premium line featuring their POWERSTATE brushless motor, REDLINK PLUS intelligence, higher torque at 2,000 in-lbs, 3,900 RPM, and a 4-mode drive control including a dedicated Self-Tapping Screw Mode. The Compact Brushless is Milwaukee’s standard brushless option — lighter, more affordable, and better suited for everyday fastening tasks. For casual to moderate jobsite use, the Compact Brushless gets the job done. For heavy-duty daily professional use, the FUEL pulls ahead.
Is the Milwaukee M18 Compact Brushless worth it?
Yes — especially if you’re already in the M18 ecosystem. You get a brushless motor, 1,700 in-lbs of torque, 3-mode drive control, a 5-year warranty, and compatibility with 250+ M18 tools, all in a lightweight 1.7 lb body. It’s a strong mid-tier option that doesn’t cut corners on build quality.
Does the Milwaukee M18 Compact Brushless come with a battery?
No. The bare tool (model 3651-20) does not include a battery or charger. You will need to purchase an M18 REDLITHIUM battery separately, or look for a kit version that bundles them together.
What batteries are compatible with the Milwaukee M18 Compact Brushless Impact Driver?
It is compatible with all M18 REDLITHIUM batteries. The larger the battery capacity (such as 3.0Ah or 5.0Ah), the more runtime and performance you will get out of the tool.
How many speed settings does the Milwaukee M18 Compact Brushless have?
It has 3-Mode Drive Control — a low speed mode for precision on small fasteners, a mid speed mode for general screwdriving, and a high speed mode for maximum driving power on tougher applications.
Is the Milwaukee M18 Compact Brushless good for tight spaces?
Yes. At just 4.4 inches in length and 2.1 inches wide, it is specifically designed for access in confined areas like cabinetry, electrical panels, and overhead installations where larger tools won’t fit.
How long is the warranty on the Milwaukee M18 Compact Brushless?
Milwaukee backs this tool with a 5-year warranty — one of the longest in its class and a strong indicator of its build quality and durability.
Is Milwaukee M18 FUEL better than the Compact Brushless for professionals?
For heavy-duty daily use, yes. The M18 FUEL has been found to outperform the non-FUEL M18 brushless by a significant margin in demanding applications. However, for tradespeople who need a compact, reliable everyday driver without the premium price tag, the Compact Brushless remains a solid professional-grade choice.
Can I use my old M18 batteries with the Milwaukee M18 Compact Brushless?
Yes — all M18 REDLITHIUM batteries are cross-compatible. However, older or smaller 2.0Ah batteries may limit performance. For best results, a 3.0Ah or higher battery is recommended.
Final Verdict: Is the Milwaukee M18 Impact Driver a Reliable Power Tool?
The Milwaukee M18 Compact Brushless 1/4″ Hex 3-Speed is a well-built, reliable impact driver that hits the sweet spot between performance, portability, and value. At 1,700 in-lbs of torque and just 1.7 lbs, it handles the majority of everyday jobsite tasks with ease — and our drop, screw driving, and lag bolt tests confirmed it’s built to last.
It won’t outmuscle the DeWalt on torque or match the M18 FUEL’s full feature set, but for most tradespeople and serious DIYers, it doesn’t need to. What it does offer is a brushless motor that runs cooler and longer than brushed alternatives, a 3-mode drive control that gives you real precision across different materials, and a 4.4-inch compact frame that gets into spaces most impact drivers simply can’t reach. Whether you’re running wire as an electrician, hanging cabinets as a carpenter, or fastening deck boards all day long — this tool keeps up without wearing you down.
The 5-year warranty — the longest in this comparison — backs up Milwaukee’s confidence in the build quality. And with access to 250+ M18 compatible tools, every battery you own works harder across your entire kit. That’s not just a tool purchase, that’s an investment in a platform that grows with you.
See how the Milwaukee M18 Compact Brushless Impact Driver compares in our full guide of budget-friendly to pro-level impact drivers below.
