Foxelli MX20B Review: We Put This LED Headlamp Through 6 Real-World Tests
A good headlamp should do more than just provide light—it should be comfortable to wear, reliable during movement, and powerful enough for different situations like hiking, camping, running, or working in dark spaces.
In this Foxelli MX20B review, we put this LED headlamp through 6 real-world tests to evaluate its brightness, beam performance, comfort, battery life, and overall reliability. Instead of just looking at the specs, we tested how it actually performs in everyday and outdoor situations to help you decide if it’s worth buying.
If you’re comparing different options, you can also check out our headlamp comparison test where we tested 7 headlamps to see which ones stood out before making your choice.
⭐ Quick Verdict
The Foxelli MX20B surprised us. For a budget headlamp running on three AAA batteries, it put up numbers we didn’t expect — recording 1,794 lux in our brightness test and outlasting our battery runtime expectations at maximum brightness. It passed every single one of our 6 real-world tests, from water resistance to drop impact, without skipping a beat. Lightweight, simple to use, and ready straight out of the box, this little headlamp has a lot going for it. Keep reading to see exactly how it performed.
⭐ Best For: Casual campers, dog walkers, night runners, and anyone who needs a lightweight, reliable headlamp for everyday use
🚫 Not Ideal For: Serious hikers, trail runners, or anyone who needs high-lumen output and USB rechargeability
✅ Our Verdict: Worth buying for the price. Keep reading to see how it held up in our 6 real-world tests.
Foxelli MX20B Review: Key Features & Specifications
The Foxelli MX20B is a straightforward, no-frills LED headlamp that covers the basics well — white and red light modes, a tilting lamp head so you can aim the beam where you actually need it, and a 165-foot beam distance that handles most outdoor tasks without issue. It runs on three AAA batteries, which are included in the box, so there’s nothing extra to buy before your first use.

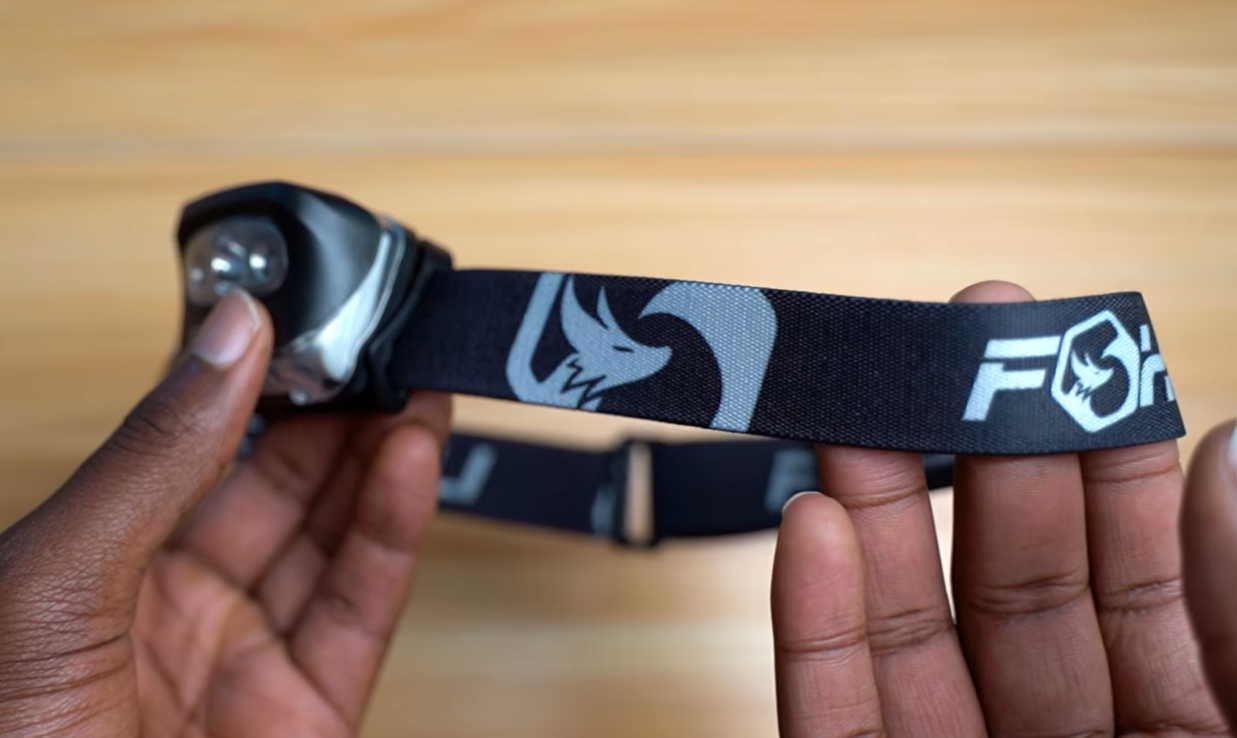

It has an adjustable head strap that is wide and fully adjustable, designed to fit different head sizes without pressure points. Foxelli MX20BF claims it’s comfortable enough that you’ll forget you’re wearing it, and at just 3.2 ounces, this light weight headlamp makes that easy to believe.
Key Features
165-Foot Beam with Multiple Light Modes
The MX20B puts out up to 165 lumens and throws a beam up to 165 feet, delivering a bright light that’s strong enough to illuminate a trail, campsite, or work area without straining your eyes. It offers multiple white light modes, allowing you to adjust the brightness based on your needs, plus a red light mode for situations where you want to preserve your night vision. An SOS and strobe mode are also built in for emergencies.
One-Button Operation
Everything is controlled through a single glove-friendly button, so you can switch modes on the fly without fumbling around — even when your hands are cold or you’re wearing gloves in the field.
45-Degree Tilting Head
The Foxelli headlamp head pivots up to 45 degrees, letting you angle the beam precisely where you need it — whether that’s straight ahead on a trail or downward while working with your hands.
IPX5 Water Resistance
The Foxelli MX20B carries an IPX5 rating, meaning it can handle water sprayed from any direction without failing. It won’t survive full submersion, but it holds up fine in rain or wet conditions.
Lightweight and Comfortable
Weighing just 3.2 ounces with batteries installed, the MX20B is light enough to wear for extended periods without neck or head fatigue. The adjustable head strap makes a noticeable difference in comfort, providing a secure, ergonomic fit that stays in place during runs, hikes, or other high-movement activities.
Up to 45 Hours of Battery Life
Running on three AAA batteries which are included in the box — the Foxelli MX20B is claimed to last up to 45 hours at its lowest setting. Foxelli uses Energizer batteries straight from the factory, so you’re ready to go right out of the package.
Specifications
| Specification | Details |
|---|---|
| Product Name | Foxelli MX20B LED Headlamp Flashlight |
| Model | MX20B |
| Max Lumen Output | 165 lumens |
| Beam Distance | 165 ft (50 m) |
| Beam Angle | 45° |
| Light Modes | White, Red, SOS, Strobe |
| Light Source | LED |
| Number of Light Sources | 1 |
| Battery Type | 3x AAA Alkaline (included) |
| Power Source | Battery powered |
| Battery Runtime | Up to 45 hours |
| Water Resistance | IPX5 |
| Weight | 3.2 oz (with batteries) |
| Mounting Type | Head mount |
| Headband | Wide, adjustable elastic |
| Additional Features | Adjustable, Durable, Lightweight, Waterproof |
| Smart Home Compatible | No |
How We Tested the Foxelli MX20B LED Headlights
Test 1: Comfort Test
We wore the Foxelli MX20B for an extended period to see how well the headband fits, how the weight feels, and whether it stays in place during movement.
Test 2: Brightness Test
We used a Lux Meter app held one foot from a wall to measure how much light the Foxelli MX20B actually puts out at its brightest setting.
Test 3: Real-World Night Visibility
We took the Foxelli MX20B outside after dark and stood 25 feet away from a gate to see how well it lights up the area in a real setting.
Test 4: Waterproof & Water Resistance Test
The Foxelli MX20B was fully submerged underwater for 15 seconds, then sprayed with a hose for 15 seconds. After each test, we checked if it still worked and looked for any signs of water getting in.
Test 5: Drop Test
We dropped the Foxelli MX20B from waist height onto a hard surface, then checked for any damage and made sure everything still worked properly.
Test 6: Battery Runtime Test
We set the Foxelli MX20B to maximum brightness and left it running until the battery died to see how long it actually lasts.
Performance Test Results
Test 1: Comfort Test
Setup: The MX20B features a wide, adjustable headband that Foxelli claims is comfortable enough that you won’t even notice you’re wearing it. We wore it for an extended period to put that claim to the test.
Observation: The headband felt comfortable and secure throughout. The only thing we noticed was a slight pressure from the lamp housing against the forehead, but nothing uncomfortable enough to be a distraction during use.
Bottom Line: It mostly lives up to Foxelli’s comfort claim. The minor forehead pressure keeps it from being perfect, but it’s still a comfortable headlamp to wear for extended periods.

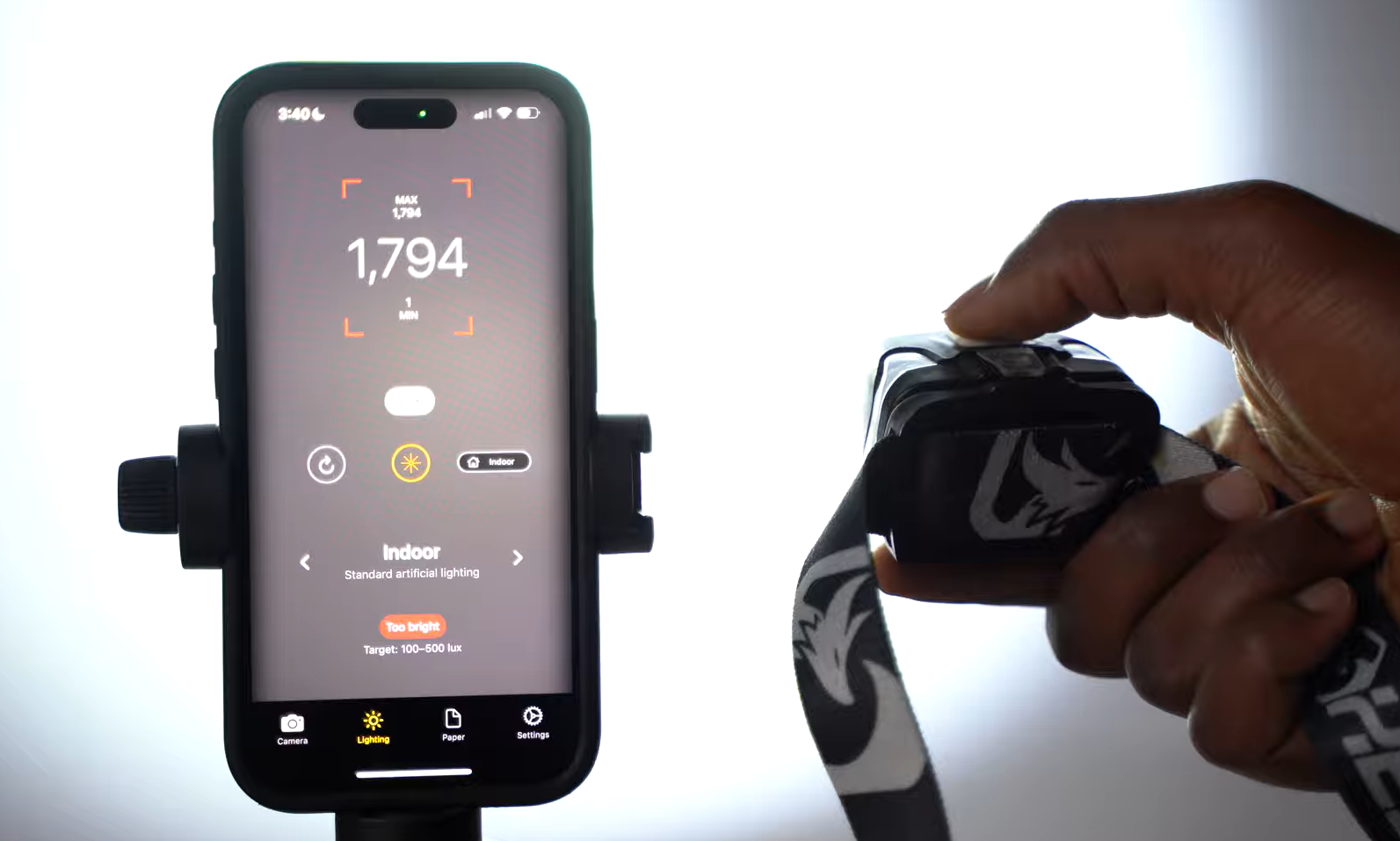

Test 2: Brightness Test
Setup: We used a Lux Meter app placed exactly one foot from a wall to measure output. Distance was confirmed using a Fanttik A10 Pro laser tape measure to make sure the reading was accurate.
Observation: With the MX20B set to its brightest setting, the Lux Meter reading climbed and settled at 1,794 lux — a strong result for a headlamp in this price range.
Bottom Line: 1,794 lux is an impressive brightness reading. It tells you the MX20B puts out a solid amount of usable light right where you need it.

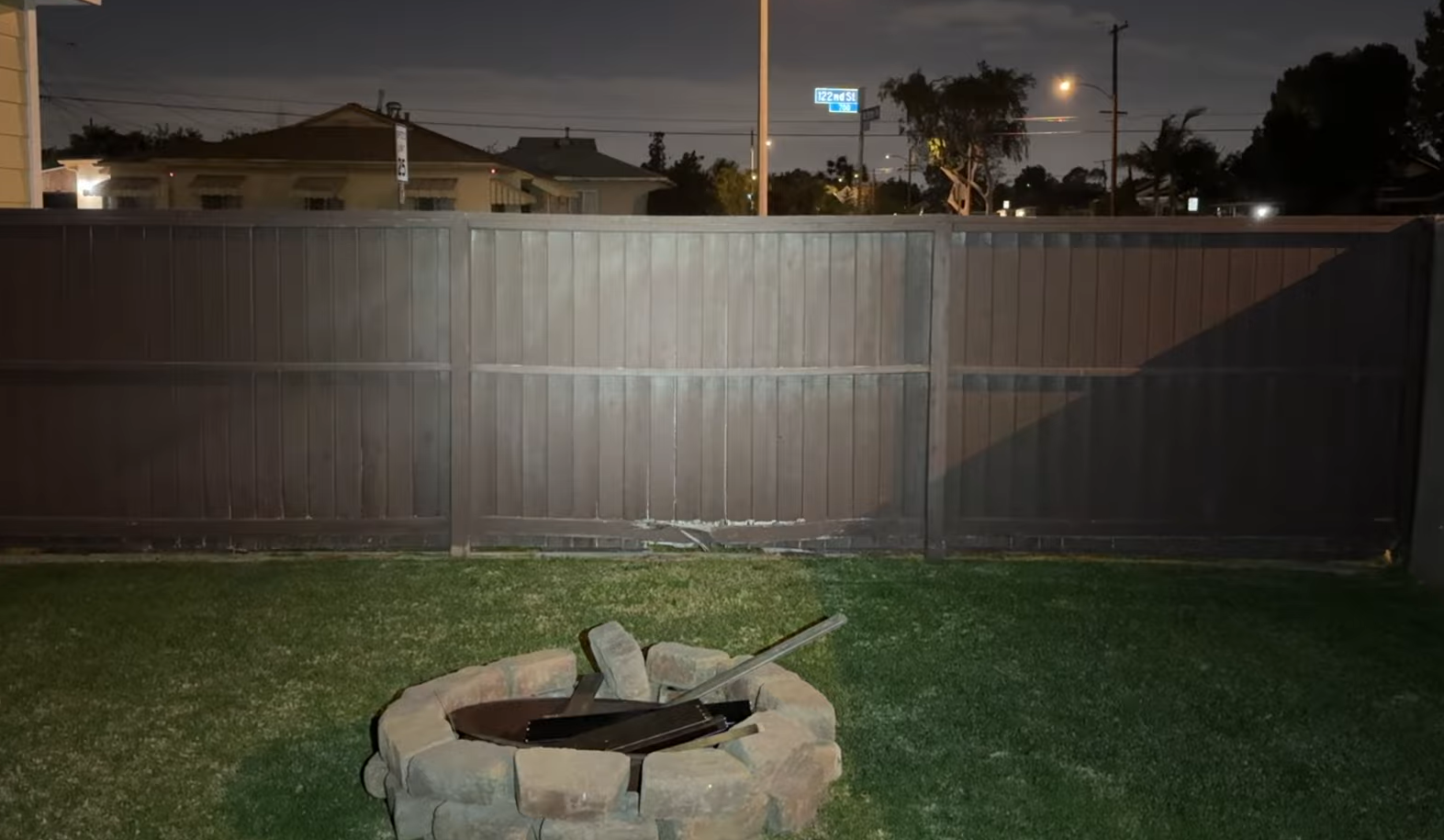

Test 3: Real-World Night Visibility
Setup: We took the MX20B outside after dark and stood 25 feet away from a gate to see how well it illuminates the area at a realistic distance.
Observation: With the MX20B set to its brightest setting, the gate was clearly lit from 25 feet away. Walking around with it on, the beam provided a bright, wide field of view with no trouble seeing what was ahead.
Bottom Line: The MX20B handles real-world night visibility well. The beam is bright enough to light up your surroundings confidently, whether you’re standing still or on the move.

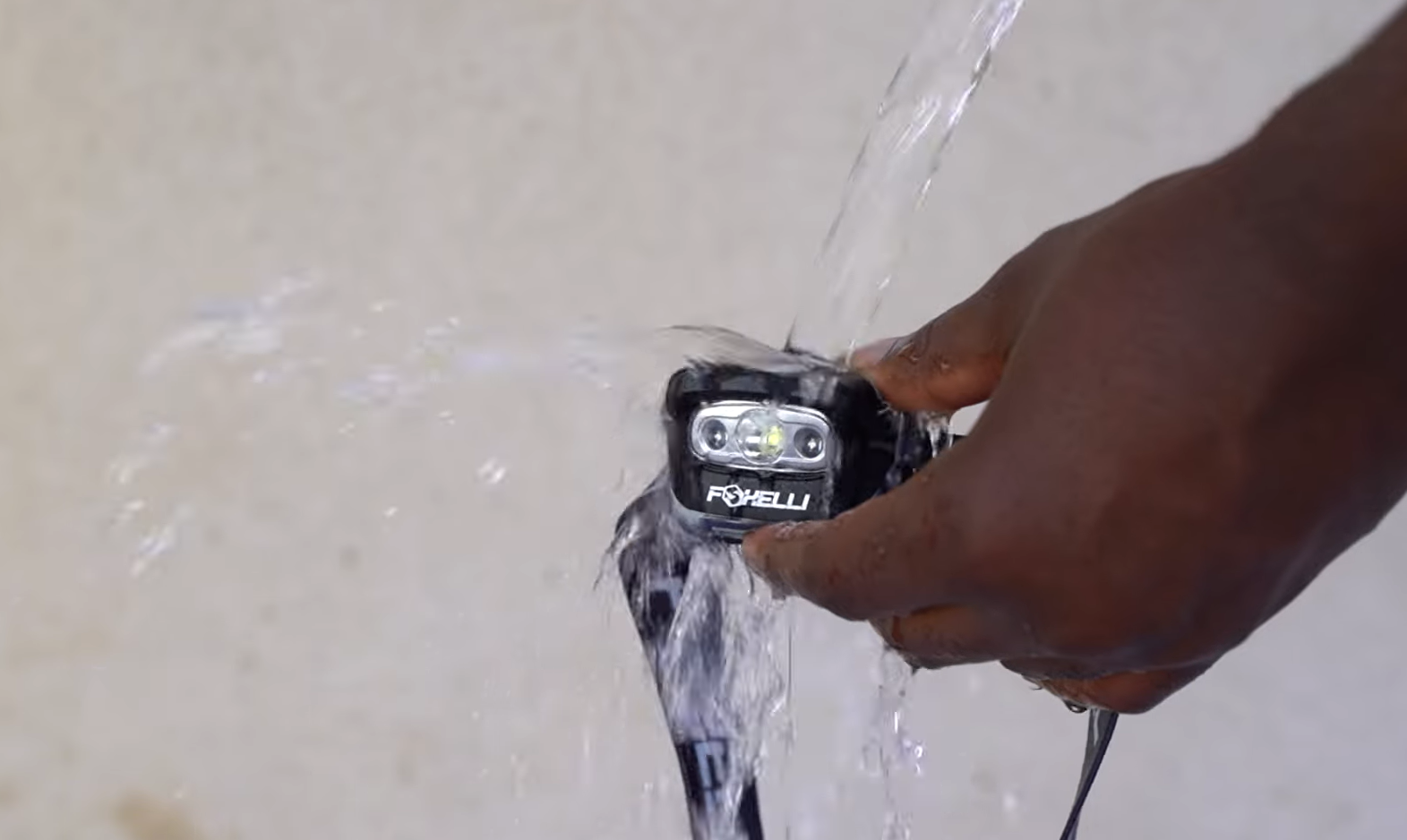

Test 4: Waterproof & Water Resistance Test
Setup: The Foxelli MX20B carries an IPX5 water resistance rating, meaning it’s designed to handle water sprayed from any direction. We ran a hose directly over the unit for 15 seconds to put that claim to the test.
Observation: After being sprayed with the hose, the MX20B powered on and functioned normally with no issues.
Bottom Line: It passed the water resistance test without any problems. The IPX5 rating holds up — the MX20B can handle rain and splashing without skipping a beat.
Test 5: Drop Test
Setup: We dropped the MX20B from waist height onto a hard surface to simulate an accidental real-world drop.
Observation: After the drop, the MX20B powered on and functioned normally with no issues. No cracks or visible damage were found on the unit.
Bottom Line: It passed the drop test without any problems. The MX20B can take an accidental drop and keep going.
Test 6: Battery Runtime Test
Setup: We set the Foxelli MX20B to maximum brightness and left it running continuously to see how long the battery truly lasts.
Observation: The MX20B outlasted our expectations — even after an extended runtime, it showed no signs of dimming or dying.
Bottom Line: The battery life on the MX20B is impressive. It kept going strong at maximum brightness longer than expected, making it a reliable choice when you need a headlamp that won’t quit on you mid-activity.
Overall Results
| Test | Result | Score |
|---|---|---|
| Comfort Test | Comfortable and secure fit with minor forehead pressure from the lamp housing | 9/10 |
| Brightness Test | Recorded 1,794 lux at maximum brightness — strong output for its class | Pass |
| Real-World Night Visibility | Clearly lit a gate from 25 feet away with a bright, wide field of view | Pass |
| Waterproof & Water Resistance Test | Passed hose spray test — powered on and functioned normally after 15 seconds | Pass |
| Drop Test | Passed waist-height drop — no damage, no loss of function | Pass |
| Battery Runtime Test | Showed no signs of dimming or dying after extended runtime at maximum brightness | Pass |
Foxelli MX20B LED Headlights Pros and Cons
✅ Pros
Bright output at 1,794 lux — strong performance for its price point
165-foot beam distance handles most outdoor tasks well
Lightweight at 3.2 ounces — easy to wear for extended periods
Wide, adjustable headband fits different head sizes comfortably
Multiple light modes — white, red, SOS, and strobe
45-degree tilting head lets you aim the beam where you need it
IPX5 water resistant — holds up in rain and splashing
Passed drop test with no damage or loss of function
Strong battery life — showed no signs of dying at maximum brightness
3 AAA Energizer batteries included out of the box
Single glove-friendly button for easy one-handed operation
❌ Cons
Slight pressure from the lamp housing against the forehead during extended wear
IPX5 rated only — not fully waterproof, not suitable for submersion
Runs on AAA batteries — no rechargeable option
Foxelli MX20B LED Headlamp Flashlight Vs Other Headlamps
| Specification | Foxelli MX20B | LHKNL (2-Pack) | BIAT (2-Pack) | Danforce Bold-S | Nebo Transcend 1500 | Olight Perun 3 | Nitecore HC75 UHE |
|---|---|---|---|---|---|---|---|
| Max Lumens | 165 lm | 1,200 lm | 350 lm | 1,080 lm | 1,500 lm | 3,000 lm | 3,000 lm |
| Beam Distance | 165 ft (50 m) | N/A | 150 ft (46 m) | 800 ft (244 m) | 423 ft (129 m) | 524 ft (160 m) | 630 ft (192 m) |
| Water Resistance | IPX5 | IPX4 | IPX4 | Water Resistant | IPX7 | IP68 | IP68 |
| Battery Type | 3x AAA (included) | Built-in 1,500 mAh Li-ion | Built-in Li-ion | 2x 18650 Li-ion (included) | 18650 3,200 mAh Li-ion | 21700 5,000 mAh Li-ion | 21700 5,500 mAh Li-ion |
| Max Runtime | 45 hrs (low) | 4–10 hrs | N/A | 10 hrs | 28 hrs (low) | 20 days (moonlight) | 84 hrs (low) |
| Light Modes | White, Red, SOS, Strobe | 8 modes (White, Red, SOS, Motion Sensor) | 6 modes (COB, Spotlight, Strobe, Motion Sensor) | 5 modes (White x3, Red, Strobe) | 5 modes (Turbo, High, Medium, Low, Strobe) | 7 modes (White x5, Red x2, SOS) | 7 modes (White x5, Red x2, SOS, Beacon) |
| Weight | 3.2 oz | 1.87 oz | 2.47 oz | 10.6 oz (0.66 lb) | 4.9 oz (0.31 lb) | 5.29 oz | 7.37 oz |
| Tilt / Adjustability | 45° tilt | 60° rotation | 90° rotation | 90° tilt | Adjustable tilt | Right-angle design | 120° adjustable |
| Charging | Not rechargeable | USB rechargeable | USB rechargeable | USB rechargeable | USB-C rechargeable | Magnetic USB-A charging | USB-C rechargeable |
| Units Per Pack | 1 | 2 | 2 | 1 | 1 | 1 | 1 |
vs. LHKNL Headlamp Flashlight (2-Pack)
The LHKNL puts out significantly more light at 1,200 lumens compared to the Foxelli MX20B’s 165 lumens, and it adds a motion sensor feature that lets you turn the light on and off with a hand wave — something the MX20B doesn’t have. It also comes as a 2-pack, which gives you more value per purchase on paper. That said, the MX20B has a clear edge in water resistance — rated at IPX5 versus the LHKNL’s IPX4 — meaning it handles direct water spray better. The MX20B also runs on standard AAA batteries, so you’re never stuck waiting for a charge, while the LHKNL’s built-in 1,500 mAh battery is convenient but limits you once it’s drained. If raw brightness and value per unit are your priority, the LHKNL wins. If you want a lighter, simpler headlamp that you can power up anywhere with off-the-shelf batteries, the MX20B is the more practical pick. Read our full LHKNL headlamp flashlight review to see how it performed in our hands-on tests.
vs. BIAT Headlamp (2-Pack)
Both the BIAT and the Foxelli MX20B are budget-friendly options, but they take different approaches. The BIAT offers a 230-degree wide beam that floods your surroundings without needing to turn your head — a genuinely useful feature for close-range tasks and work in tight spaces. It also comes as a 2-pack. The MX20B, however, pulls ahead in water resistance with its IPX5 rating versus the BIAT’s IPX4, and it throws a beam farther at 165 feet compared to the BIAT’s 150 feet. The BIAT’s 350 lumens sits between the two but its wide-angle design makes it feel brighter up close. For general outdoor use where you need throw distance and weather protection, the MX20B holds its own. For indoor tasks or close-range work where a wide flood beam matters more than distance, the BIAT has the advantage. Read our full BIAT Headlamp review to see how it performed in our hands-on tests.
vs. Danforce Bold-S LED Headlamp
The Danforce Bold-S is a step up in almost every measurable spec — 1,080 lumens versus 165, an 800-foot beam distance versus 165 feet, and a rechargeable 18650 lithium-ion battery versus the MX20B’s disposable AAAs. It also comes with a focus system that lets you adjust the beam from flood to spot, which the MX20B doesn’t offer. Where the MX20B holds an advantage is weight — at 3.2 ounces it’s considerably lighter than the Bold-S at 10.6 ounces, which matters if you’re wearing it for long periods. The MX20B is also the more grab-and-go option since it runs on batteries you can buy anywhere. The Bold-S is the better performer for demanding outdoor use, but if you want something lightweight, simple, and low-maintenance, the MX20B is the easier daily carry. Read our full Danforce Bold-S review to see how it performed in our hands-on tests.
vs. Nebo Transcend 1500 Rechargeable Headlamp
The Nebo Transcend 1500 is in a different class entirely. It delivers up to 1,500 lumens with a 423-foot beam, a rotary mode dial, smart power control, a detachable magnetic base that doubles as a work light, and IPX7 waterproofing — all features the MX20B doesn’t come close to matching. It also charges via USB-C, which is far more convenient than swapping out AAA batteries. The MX20B’s only real advantages here are price, simplicity, and weight. If you need a headlamp purely for light occasional use and don’t want to spend much, the MX20B gets the job done. For anyone who needs reliable, high-performance lighting for serious outdoor activities or work, the Transcend 1500 is the considerably stronger option. Read our full Nebo Transcend 1500 review to see how it performed in our hands-on tests.
vs. Olight Perun 3 Headlamp Flashlight
The Olight Perun 3 is a premium, high-performance headlamp that outclasses the MX20B in nearly every category. It puts out 3,000 lumens, throws a beam up to 524 feet, carries an IP68 waterproof rating that allows full submersion up to two meters, and offers seven lighting modes including a moonlight mode that can run for up to 20 days on a single charge. It also functions as a standalone flashlight with a magnetic tailcap, pocket clip, and lanyard — making it far more versatile than the MX20B. The trade-off is price, size, and complexity. The MX20B is lighter, simpler, and much more affordable. For everyday casual use where budget matters, the MX20B is sufficient. For anyone who needs a serious, multi-purpose light that performs in demanding conditions, the Perun 3 is worth every dollar. Read our full Olight Perun 3 review to see how it performed in our hands-on tests.
vs. Nitecore HC75 UHE Rechargeable Headlamp
The Nitecore HC75 UHE is a professional-grade headlamp built for industrial and heavy-duty use — and it shows in the specs. It matches the Olight Perun 3 at 3,000 lumens but throws its beam even farther at 630 feet, features a zoomable E-focus system that lets you seamlessly switch between spotlight and floodlight, and carries an IP68 rating with 2-meter impact resistance. Its 5,500 mAh battery supports up to 84 hours of runtime at low output. The HC75 UHE is also heavier at 7.37 ounces. The Foxelli MX20B sits at the complete opposite end of the spectrum — it’s a lightweight, no-frills, budget-friendly option for casual outdoor use. If you’re comparing the two, they’re built for entirely different users. The MX20B covers everyday needs simply and affordably. The HC75 UHE is for professionals and serious outdoor enthusiasts who need maximum performance and durability in demanding environments. Read our full Nitecore HC75 UHE review to see how it performed in our hands-on tests.
Who Should Buy the Foxelli MX20B LED Headlamp Flashlight?
The Foxelli MX20B LED headlamp is a reliable, no-fuss headlamp built for everyday casual use. It’s lightweight, simple to operate, and ready straight out of the box with batteries included — a solid choice for anyone who needs a dependable light without spending a lot.
Buy it if:
You need an affordable, everyday headlamp for casual use
You prefer AAA batteries over built-in rechargeable options
You want something lightweight that won’t weigh you down on runs or hikes
You need a backup or emergency headlamp to keep in your bag or car
You’re looking for a reliable kid’s headlamp that the whole family can use
Skip it if:
You need high-lumen output for serious trail work or demanding outdoor conditions
You prefer the convenience of USB rechargeability
You need full waterproof protection for submersion
You’re looking for a professional or heavy-duty lighting solution
Frequently Asked Questions
How do I switch to red light mode on the Foxelli MX20B?
Simply press and hold the power button for 1.5 seconds and the light will switch to red mode. To go back to white light, press and hold the same button again for 1.5 seconds.
How bright is the red light mode?
The red light mode puts out 40 lumens — low enough to keep your night vision intact while still giving you enough light to see what you’re doing.
How long do the batteries last?
Battery life depends on which mode you’re using. On the lowest setting, you can get up to 45 hours of runtime. On a mid-level setting, expect around 12 hours. At maximum brightness, the battery lasts approximately 5 hours.
What kind of batteries does the Foxelli MX20B use?
It runs on three standard AAA batteries. The good news is Foxelli includes a set of Energizer batteries right in the box, so you can use it straight out of the package without needing to buy anything extra.
How do I adjust the brightness?
Everything is controlled through a single button. Just press it to cycle through the available brightness levels until you land on the one you need.
Is the Foxelli MX20B waterproof?
It carries an IPX5 water resistance rating, which means it can handle rain, splashing, and water sprayed from any direction without an issue. Keep in mind it is not designed for full submersion, so avoid dunking it underwater.
Can I buy replacement parts for the MX20B?
Foxelli does not sell replacement parts individually. If something breaks or stops working, your best bet is to reach out to their customer support team directly and they’ll help you sort it out.
Is the Foxelli MX20B good for running?
Yes — the wide, adjustable headband is designed to stay secure during physical activity, and at just 3.2 ounces it’s light enough that it won’t slow you down. It’s a solid pick for early morning or late evening runs.
Final Verdict: Is the Foxelli MX20B Worth Buying?
The Foxelli MX20B LED headlamp does exactly what it promises and for most casual users, that’s enough. It’s lightweight, comfortable, and simple to use, with a solid 1,794 lux brightness reading and a 165-foot beam that handles everyday outdoor tasks without issue. It passed every test we put it through, from water resistance to drop impact, and the included Energizer batteries mean you’re ready to go straight out of the box.
It’s not built for serious outdoor enthusiasts or demanding conditions — the 165-lumen output and AAA battery setup make that clear. But that’s not who this headlamp is designed for. For casual campers, runners, dog walkers, or anyone who needs a reliable backup light that won’t break the bank, the MX20B delivers solid value in a no-fuss package.
If you’re looking for a straightforward, affordable headlamp that gets the job done, the Foxelli MX20B is well worth considering.
