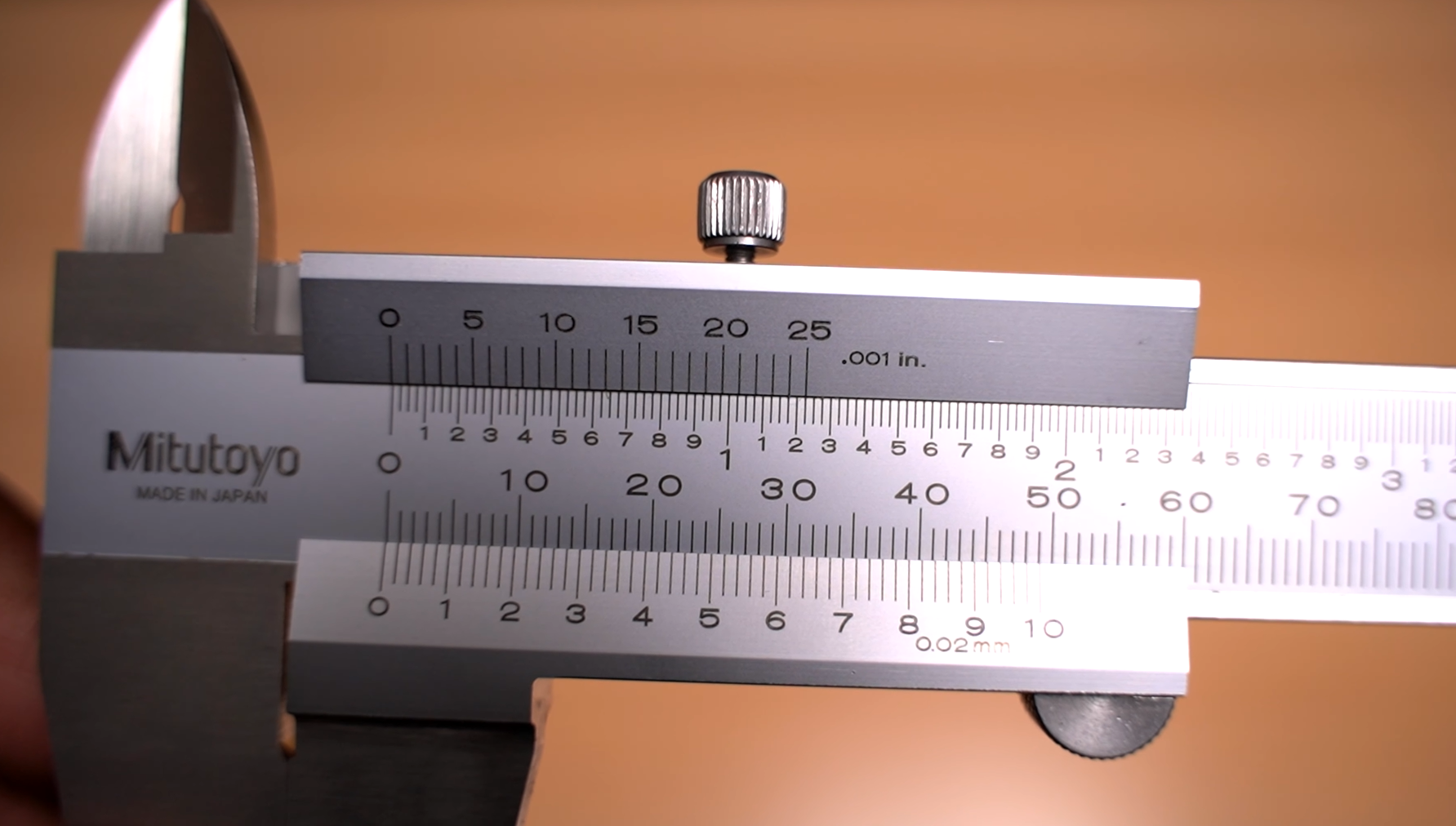

Mitutoyo Vernier Caliper Review: Is It Worth the Price?
When it comes to precision measuring tools, not all calipers are created equal. Whether you’re a machinist, engineer, or serious hobbyist, having a tool you can trust to deliver accurate and repeatable measurements every single time isn’t just a preference, it’s a necessity.
The Mitutoyo Vernier Caliper has long been a staple in professional workshops and industrial settings, but is it still worth it when there are so many digital alternatives available today? We put it through a series of hands-on performance tests — covering external, internal, depth, and step measurements — to give you a clear, honest answer.
If you’ve been exploring your options and comparing good calipers, you may have already come across our hands-on accuracy testing of four popular calipers. But in this review, we’re taking a closer look at what makes the Mitutoyo stand out from the crowd and whether it lives up to its reputation.
⚡ Quick Verdict
Best for: Engineers, machinists, and serious hobbyists who need professional-grade precision
Not ideal for: Casual users or beginners looking for quick, easy readings
Verdict: Worth the investment if accuracy and durability are non-negotiable
👉 Bottom line: The Mitutoyo Vernier Caliper is a battle-tested precision tool that delivers consistent, accurate measurements across every test we ran. The vernier scale takes some getting used to, and it costs more than budget digital alternatives — but if you need a caliper that will last decades and never let you down on the job, this is it.
Key Specifications
1. Material & Build Quality
Hardened stainless steel construction
Satin chrome finish for glare reduction and corrosion resistance
Designed for durability in industrial environments
2. Measurement Capability
Four-way measurement function:
Outside diameter (OD)
Inside diameter (ID)
Depth measurement
Step measurement
3. Scale & Reading Design
Raised sliding surfaces to reduce wear on scale markings
14-degree angled vernier scale face for improved visibility
Designed to minimize parallax error for more accurate readings
4. Accuracy & Standards
Meets Federal Accuracy Specifications GGG-C-111B
Built for high-precision industrial measurement applications
5. Durability & Usability Features
Smooth sliding mechanism for precise movement
Locking screw to hold measurements in place
Resistant to defacement and scale wear over time
Performance Test Results
To evaluate the overall accuracy, usability, and consistency of the Mitutoyo Vernier Caliper, we tested the Mitutoyo caliper across multiple performance areas, including smoothness, outside measurements, internal measurements, and depth measurements.

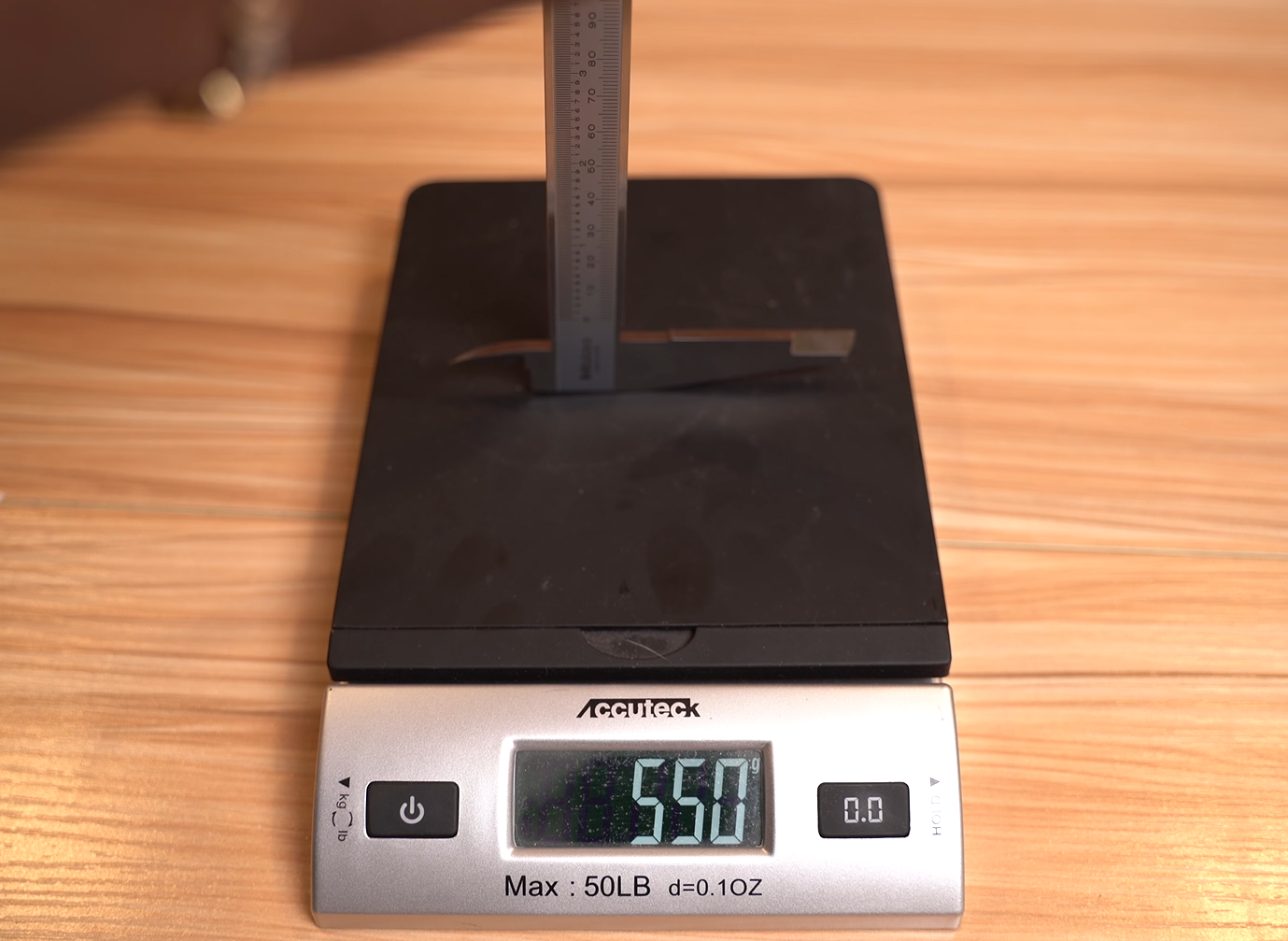

Smoothness Test
During the smoothness test, the caliper’s sliding resistance was measured as the jaws were closed.
Results
Initial resistance stayed steady at around 540 grams while sliding
As the jaws moved closer together, resistance gradually increased
Near full closure, the force peaked at approximately 626 grams
Key Insight
The increasing resistance indicates a slightly tighter glide toward the end of the jaw movement, which is common in precision calipers to maintain control and measurement stability.
Accuracy Test – Outside Measurements

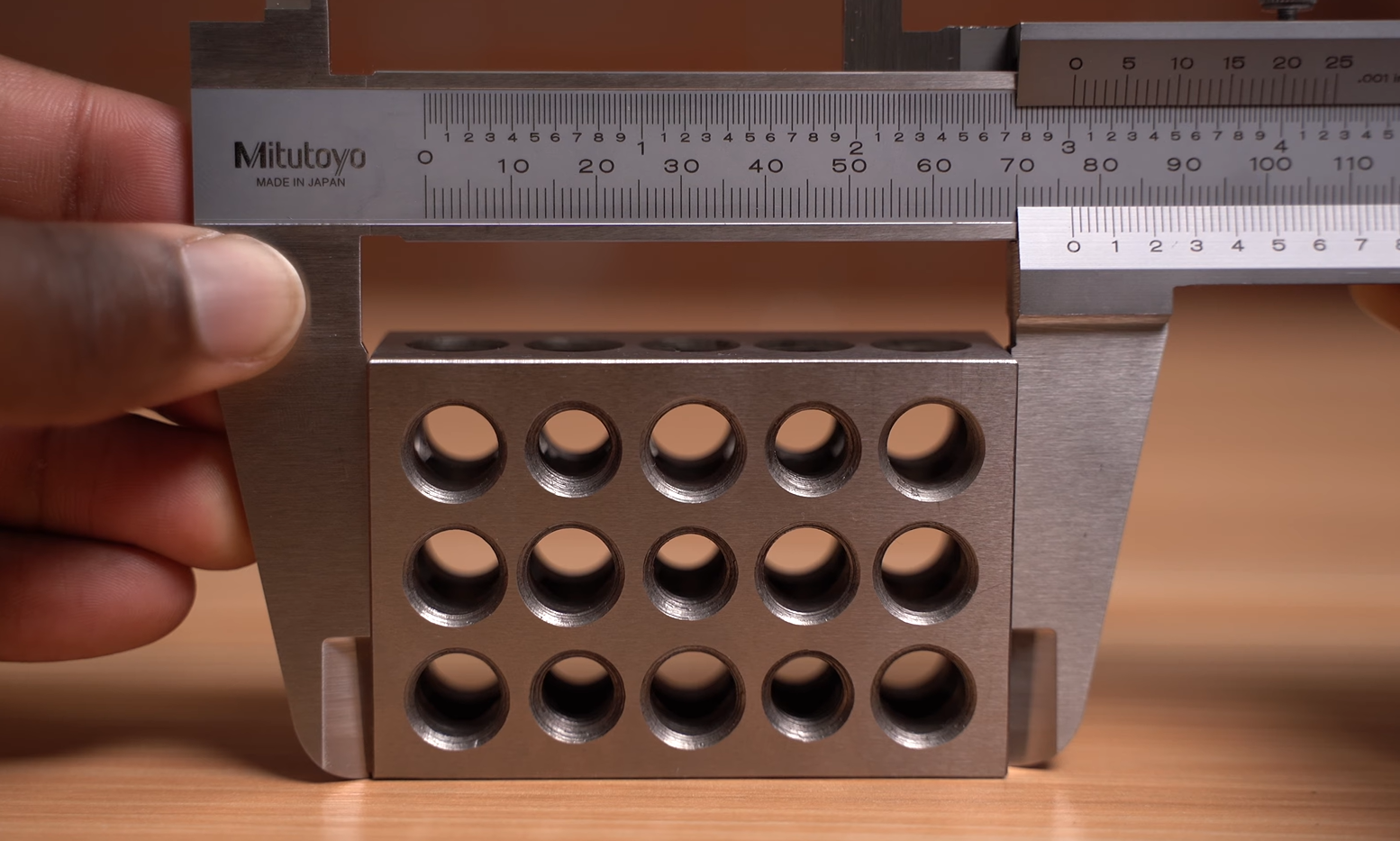

3-Inch Block
To evaluate accuracy, a 1-2-3 block was used to measure external dimensions with the caliper’s outside jaws.
Results
The 3-inch side of the block was measured first
The zero line aligned perfectly with the 3-inch mark on the scale
This confirms an accurate reading of exactly 3 inches
Key Insight
The caliper demonstrated precise measurement accuracy, with no visible deviation when checking a standard reference block.

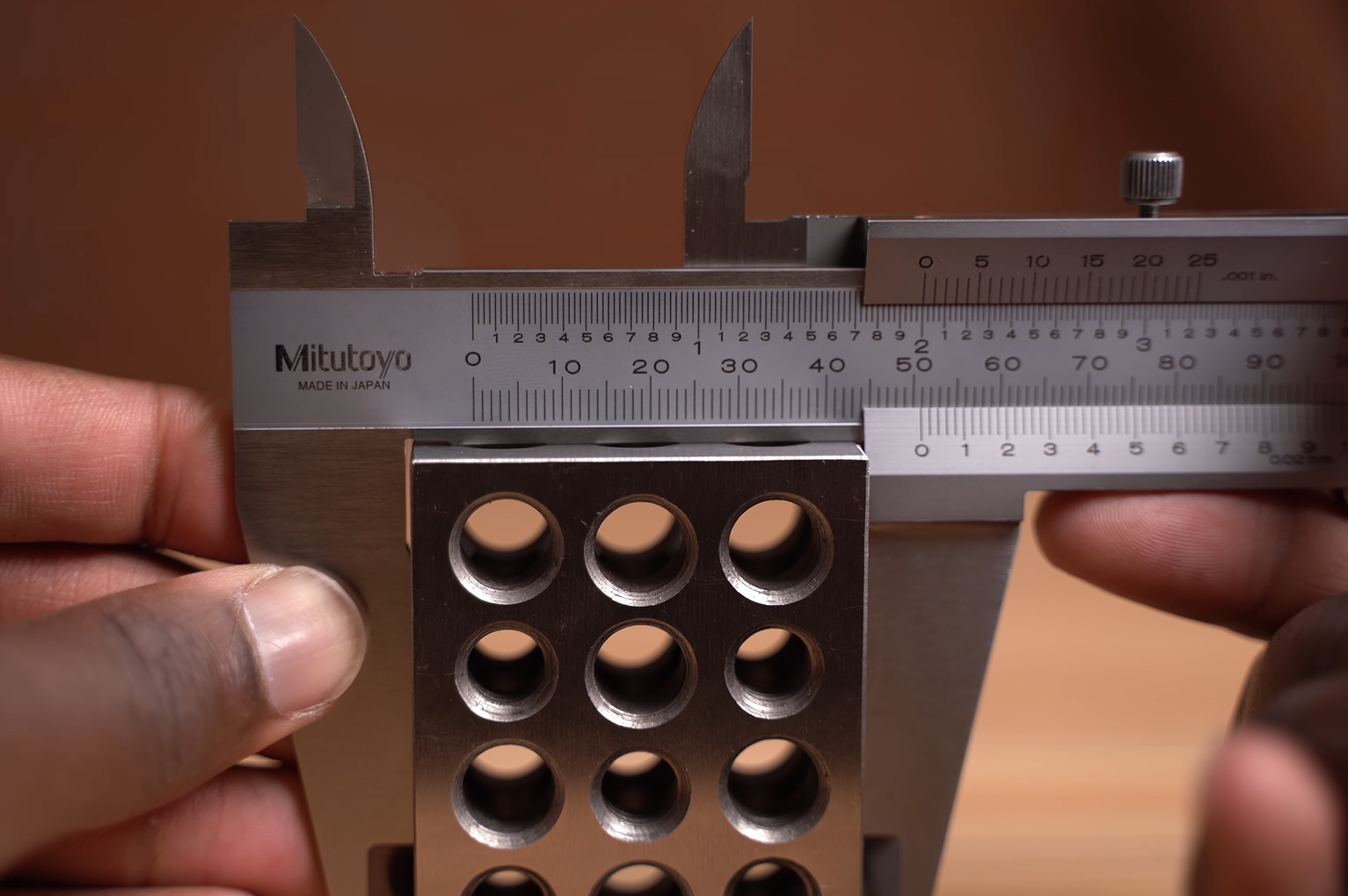

2-Inch Block
The caliper was then used to measure the 2-inch side of the 1-2-3 gauge block using the outside jaws.
Results
The zero line aligned perfectly with the 2-inch mark
This confirms a precise reading of 2 inches
Key Insight
The measurement shows consistent accuracy, with the caliper correctly matching the standard reference dimension.

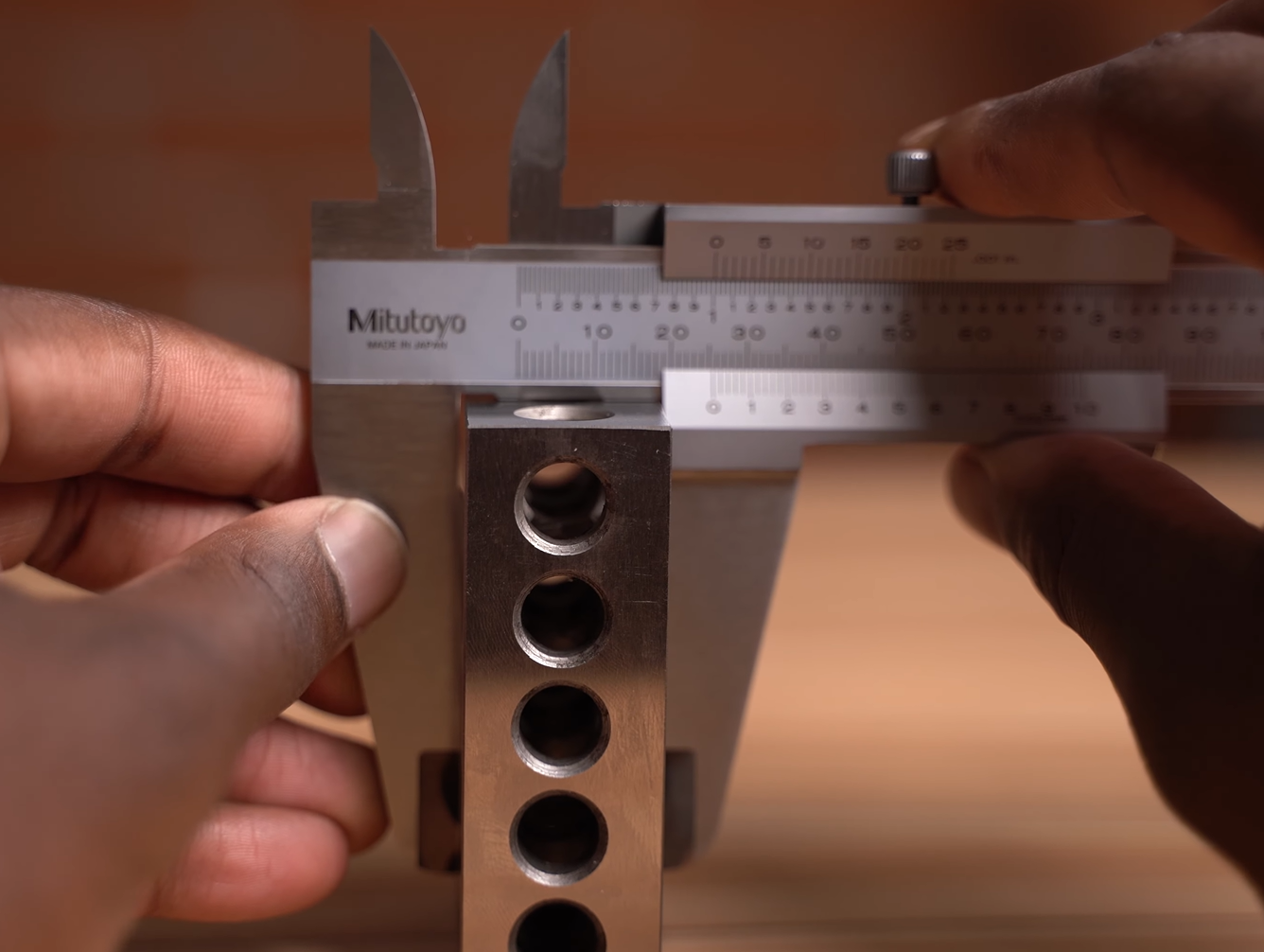

1-Inch Block
The caliper was used to measure the 1-inch side of the 1-2-3 block using the outside jaws.
Results
The zero line aligned perfectly with the 1-inch mark
This confirms a precise reading of 1 inch
Key Insight
The result shows consistent and reliable accuracy, with the caliper correctly matching the standard reference block across all measured sizes.

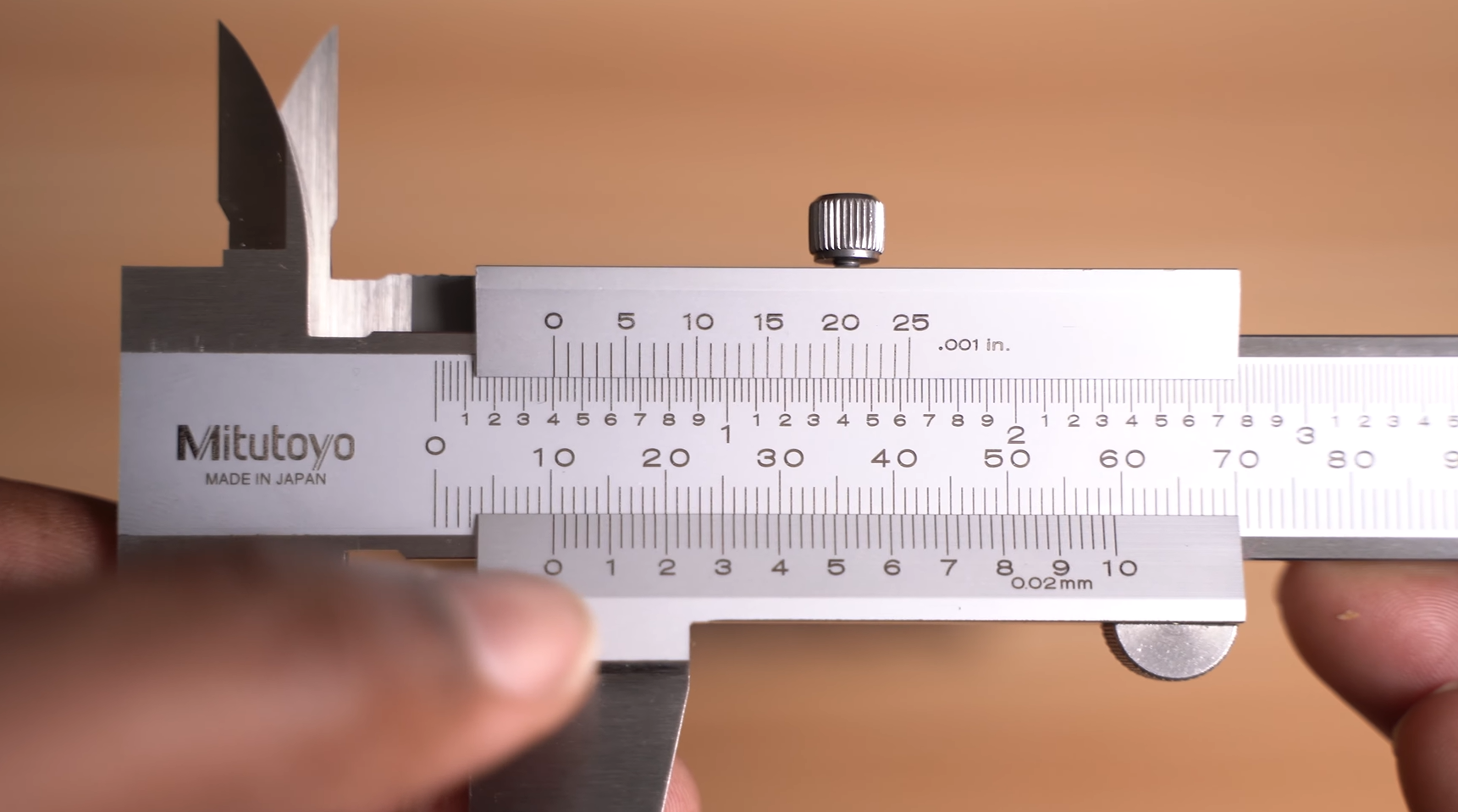

Accuracy Test – Internal Measurements
Calipers are not only used for measuring outside dimensions but they can also accurately measure inside measurements using the inside jaws.
In this test, the inside diameter of the circles was measured. The millimeter scale on the bottom row was used for reading the results, and the measurement was taken by aligning the zero line.
Results
Zero line aligns at 10 mm
Key Insight
The caliper accurately measures internal dimensions, not just external sizes
It provides consistent and reliable readings for precision measurements

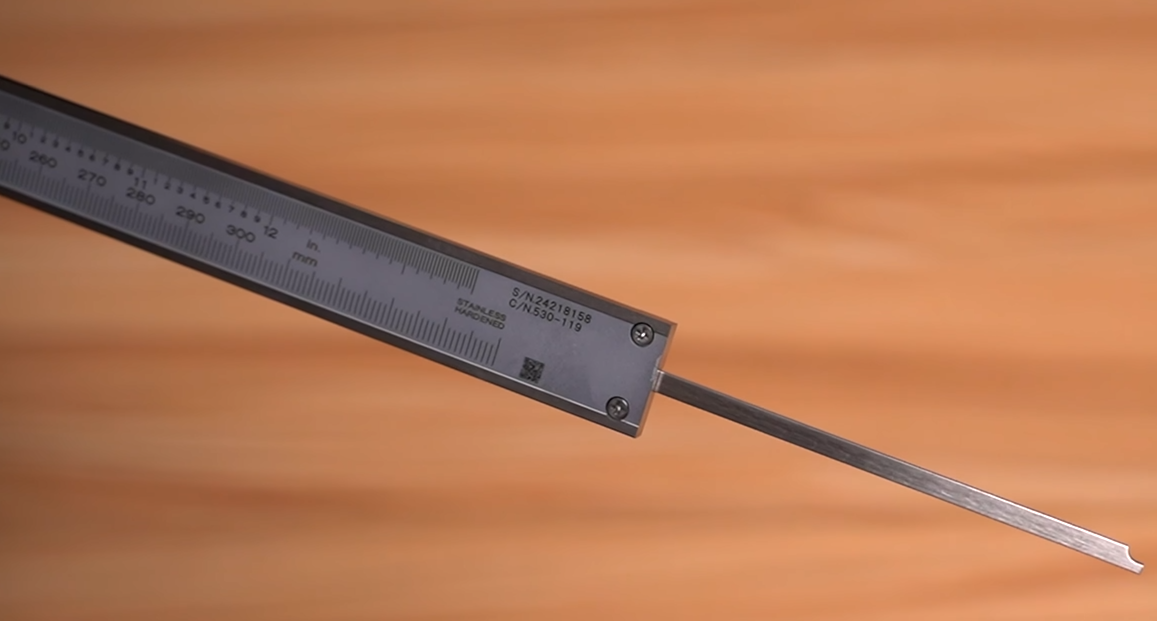

Depth Measurement Test
We also tested the 1-inch depth using the depth rod of the caliper. With the Mitutoyo caliper, the zero line aligned perfectly with the 1-inch mark, confirming a precise depth measurement of 1 inch.
Results
Zero line aligns at 1 inch
Key Insight
The caliper provides accurate depth measurements
It maintains consistent precision across different measurement types (external, internal, and depth)
Mitutoyo Vernier Caliper Pros and Cons
✅ Pros
Industry-leading accuracy
Built to tight tolerances, delivering precise and repeatable measurements across every use.
Exceptional build quality
Crafted from hardened stainless steel, making it durable enough for heavy daily use in professional environments.
No battery required
Vernier scale reading means you never have to worry about dead batteries mid-job.
Trusted brand
Mitutoyo is one of the most respected names in precision measurement, widely used and recognized across industries worldwide.
Long lifespan
With proper care, a Mitutoyo caliper can last decades, making it a cost-effective long-term investment.
Wide measurement range
Available in various sizes to accommodate different measurement needs.
❌ Cons
Higher price point
Costs more than most digital or dial calipers, which may be a barrier for casual users or beginners.
Learning curve
Reading a vernier scale takes practice and may not be intuitive for first-time users.
Slower to read
Compared to digital calipers, vernier scale readings require more time and attention, which can slow down workflow.
No digital output
Lacks data output features found in digital models, which may be a drawback for environments that require measurement logging.
Overkill for light use
If you only need occasional measurements, the precision and price may be more than your projects actually demand.
Mitutoyo vs Other Digital Calipers
Feature | Mitutoyo Vernier Caliper ★ Top Pick | Jiavarry Digital Caliper | Hardell Digital Caliper | Starrett Electronic Slide Caliper |
|---|---|---|---|---|
Type | Vernier (manual) | Digital | Digital | Electronic |
Price Range | $80 – $150 | $15 – $25 | $20 – $35 | $130 – $150 |
Accuracy | ±0.001 in / 0.02mm | ±0.001 in / 0.03mm | ±0.001 in / 0.03mm | ±0.001 in / 0.02mm |
Build Material | Hardened stainless steel | Stainless steel | Stainless steel | Hardened stainless steel |
Battery Required | No | Yes | Yes | Yes |
Ease of Reading | Requires practice | Instant digital display | Instant digital display | Instant digital display |
Measurement Range | 0 – 6 in / 150mm | 0 – 6 in / 150mm | 0 – 6 in / 150mm | 0 – 6 in / 150mm |
Data Output | No | Some models | No | Yes |
Durability | Excellent — decades of use | Moderate | Moderate | Excellent |
Best For | Professionals, machinists, engineers | Budget-conscious beginners | Everyday DIY and hobbyist use | Professional and lab environments |
Note: Prices and specs are approximate and may vary by retailer.
vs. Jiavarry Digital Caliper
The Jiavarry is a budget-friendly entry point for beginners, but it trades accuracy and durability for its low price. While its digital display makes readings faster and easier, it falls short of the Mitutoyo’s precision and build quality. For occasional home use it gets the job done, but professionals and serious users will quickly notice the difference in feel and reliability.
vs. Hardell Digital Caliper
The Hardell sits in a similar budget range as the Jiavarry and is a decent option for everyday DIY projects. It offers a straightforward digital display and adequate accuracy for light use, but its moderate durability means it’s not built for heavy or repeated professional use. The Mitutoyo, by contrast, is engineered to last decades — making it the smarter long-term investment for anyone relying on consistent, precise measurements.
vs. Starrett Electronic Slide Caliper
The Starrett is the closest competitor to the Mitutoyo, sharing a similar price range and professional-grade build quality. It adds a digital display and data output capability, which gives it an edge in environments that require measurement logging. However, the Mitutoyo’s battle-tested reputation, battery-free operation, and industry-wide trust still make it the preferred choice for machinists and engineers who prioritize reliability above all else.
Bottom line
The Mitutoyo Vernier Caliper stands out for its unmatched durability, precision, and zero reliance on batteries. Budget options like the Jiavarry and Hardell work for casual use, and the Starrett competes at a professional level — but when long-term reliability and accuracy matter most, the Mitutoyo remains the benchmark.
Who Should Use the Mitutoyo Vernier Caliper?
1. Engineers & Professional Machinists
Best for professionals who require highly precise and reliable measurements.
Common industries:
Manufacturing
Quality control
Metalworking
Mechanical engineering
Why it works well:
Exceptional measurement accuracy
Durable, professional-grade construction
Reliable for environments where measurement consistency is critical
2. Skilled Tradespeople
Ideal for trades that depend on exact dimensions and tight tolerances.
Examples:
Toolmakers
Metal fabricators
Precision technicians
Benefits:
Long-term durability
Consistent accuracy for daily professional use
3. Serious Hobbyists & DIY Builders
A great option for enthusiasts who want higher-quality tools instead of budget alternatives.
Popular uses:
Woodworking projects
3D printing calibration
Mechanical builds
Custom fabrication
Advantages:
Greater precision than cheap calipers
Long lifespan, reducing the need for replacements
4. Engineering Students & Educators
Widely used in technical and engineering programs.
Why it’s useful for learning:
Industry-recognized measurement brand
Helps students practice with tools used in real-world workplaces
Reliable for lab work and technical training
Who It May Not Be For
Casual Home Users
If you only need quick or occasional measurements, a standard digital caliper may be more practical.
Reason:
Lower cost
Easier to read
Sufficient for non-precision tasks
Frequently Asked Questions
1. What is a Mitutoyo vernier caliper used for?
Mitutoyo vernier caliper is used to measure internal, external, depth, and step dimensions of objects with high precision, commonly in engineering, machining, and quality control.
2. How accurate is a Mitutoyo caliper?
Most Mitutoyo vernier calipers are accurate up to 0.02 mm or 0.001 inch, depending on the model, making them suitable for precise industrial measurements.
3. How do you read a Mitutoyo vernier caliper?
You read the main scale first, then match the vernier scale line that aligns perfectly with a main scale line. The combined value gives the final measurement.
4. What is the difference between vernier, dial, and digital calipers?
Vernier: Manual reading, no battery needed
Dial: Uses a dial indicator for easier reading
Digital: Displays measurements on an electronic screen for fastest reading
5. How do you zero or calibrate a Mitutoyo caliper?
Close the jaws fully and press the zero button (digital) or align the scales at zero (vernier/dial). Calibration may also involve checking against a gauge block for accuracy.
6. Why is Mitutoyo better than other caliper brands?
Mitutoyo is known for high precision, durability, smooth sliding mechanism, and long-term reliability, making it a preferred brand in professional industries.
7. What is the price of a Mitutoyo vernier caliper?
Prices typically range from mid to high level, depending on size and type, with basic models being more affordable and industrial-grade versions costing significantly more.
Final Verdict: Is the Mitutoyo Vernier Caliper Worth It?
The Mitutoyo Vernier Caliper is a reliable choice for professionals who need high accuracy, durability, and long-term performance. It consistently delivers precise results across external, internal, and depth measurements, supported by its solid stainless steel construction and smooth sliding mechanism.
However, it does require learning how to read a vernier scale and comes at a higher price compared to basic digital calipers, making it less ideal for casual users.
Verdict: Highly recommended for professionals and serious hobbyists who prioritize precision and long-term reliability in their measuring tools.
See how Mitutoyo Vernier Caliper compares with other digital calipers in our head-to-head video below.
