Starrett Electronic Caliper EC799A-6/150 Review: Is It Worth It?
When it comes to precision measuring tools, Starrett is a name that has earned its reputation over more than 140 years in the industry. The EC799A-6/150 is one of their most popular electronic slide calipers and for good reason. It is built for machinists, engineers, and serious workshop users who need consistent, reliable readings without compromise.
But at $80–$120, it sits in a price range where the competition is real. Budget-friendly options have gotten surprisingly capable, and even professional users are asking whether the Starrett name alone justifies the cost.
In this review, we break down everything you need to know — specs, real-world performance, who it is built for, and where it falls short so you can decide if it is the right tool for your work. If you are still weighing your options against other brands, our head-to-head caliper accuracy test covers a head-to-head accuracy test that puts the Starrett in direct comparison with other top picks on the market.
Quick Verdict
Best for: Professional machinists, engineers, and QC inspectors who need dependable accuracy, last-reading retention, and shop-floor reliability every day
Not ideal for: Casual users, hobbyists, and budget-conscious buyers who do not need professional-grade precision — the Hardell or Jiavarry cover those needs at a fraction of the cost
Verdict: A well-built, high-precision professional tool that delivers consistent accuracy and durability — held back only by the lack of an IP rating, no fraction mode, and a price that casual users cannot justify
👉 Bottom line: The Starrett EC799A-6/150 features hardened stainless steel construction, ±0.02mm accuracy, 30-minute auto-off, last-reading retention, and optional certification traceability on SLC models. While not the cheapest or most feature-packed, it delivers consistent, reliable performance backed by over 140 years of Starrett precision—making it a strong choice for professional users.

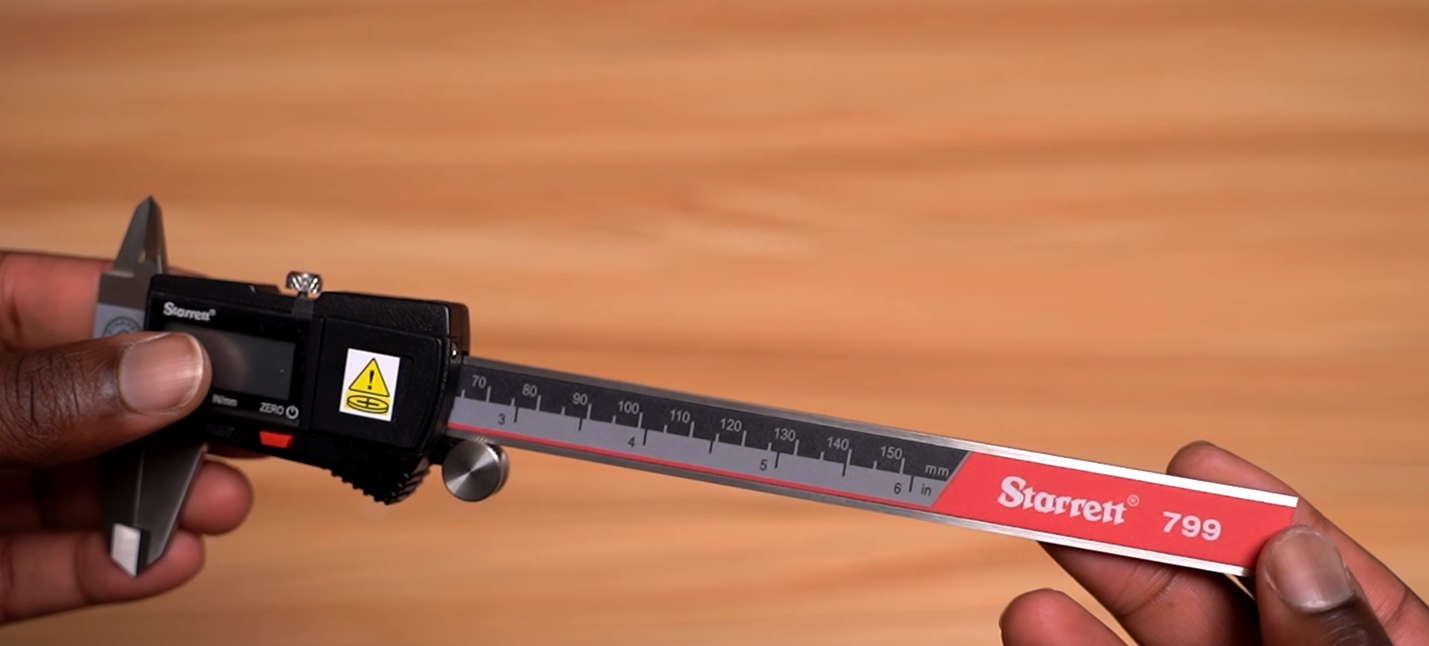

Starrett EC799A-6/150 Electronic Caliper : Key Specifications and Features

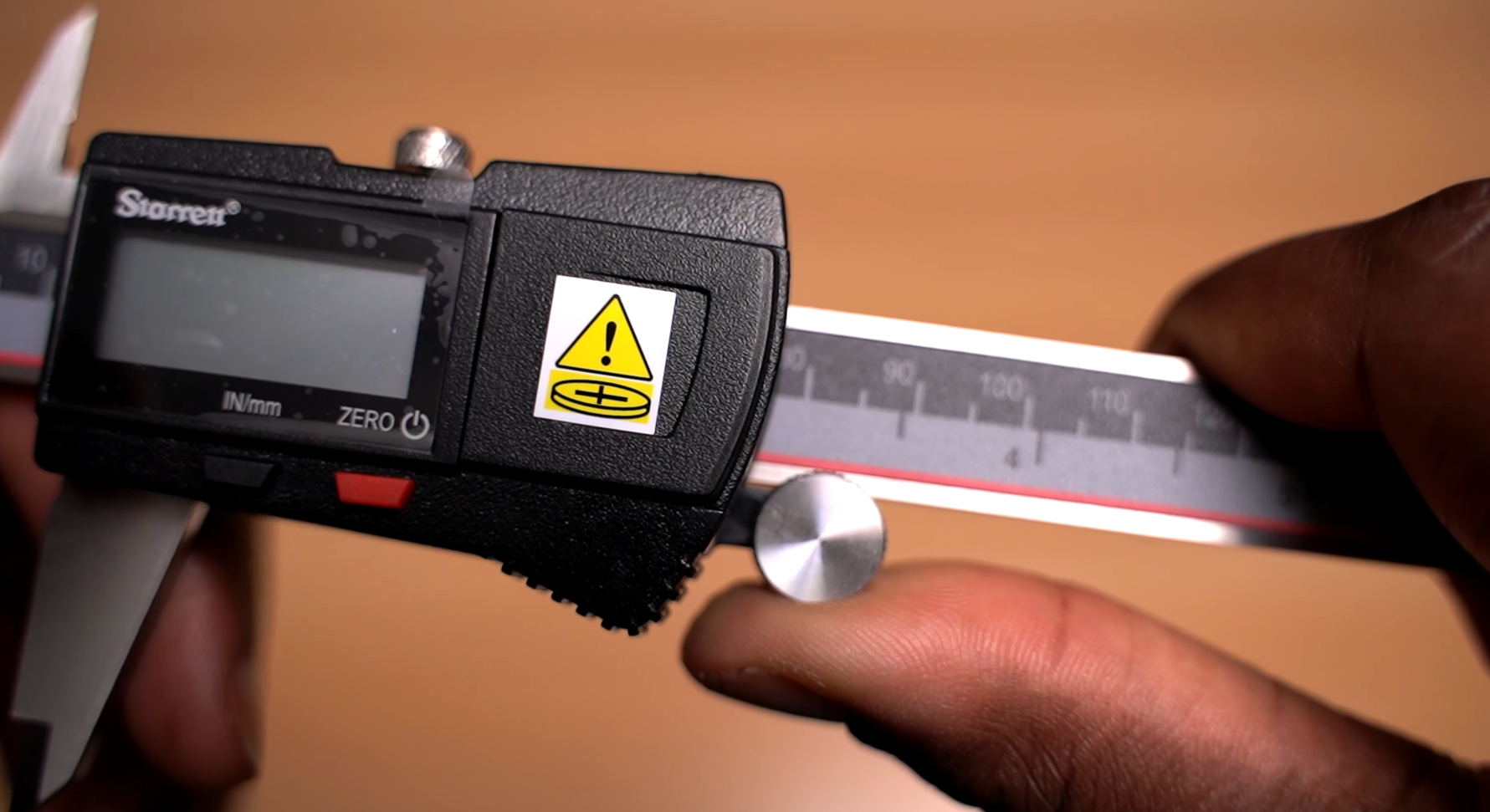

The Starrett EC799 Electronic Caliper is a professional-grade digital slide caliper designed for high-precision measurement work in machining, engineering, and quality control. Manufactured by Starrett, a company known for precision metrology tools, the EC799 combines durable stainless steel construction with a streamlined profile and an easy-to-read digital interface, making it suitable for both industrial and serious workshop use.
Measurement Range
Typically available in 6″, 8″, 12″, and extended models up to 40″, making it suitable for both small precision parts and larger industrial measurements.
Resolution (0.01 mm / 0.0005 in)
Delivers fine, high-resolution readings that allow precise measurement of very small dimensional differences.
Material (Hardened Stainless Steel)
Built with hardened stainless steel measuring surfaces for long-term durability, wear resistance, and protection against corrosion.
Easy-to Read LCD Display
Features a large, high-contrast LCD screen that makes measurements easy to read quickly and reduces the chance of reading errors.
Unit Conversion (inch/mm switching)
Allows instant switching between imperial and metric units using the function buttons, improving workflow efficiency across different measurement standards.
Auto Shut-Off
Automatically powers down after about 30 minutes of inactivity to help conserve battery and support long battery life during regular use.
Reactivation Function
Wakes instantly with any slide movement or button press, with the last measuring position retained, allowing users to continue measuring without needing recalibration.
Zero Function
Lets users reset the display to zero at any point, enabling comparative or differential measurements easily.
Ergonomic Design
Lightweight and comfortable to handle, designed for smooth one-handed operation in workshop or field use. It also features an ergonomic thumb wheel for fine adjustment, allowing precise and controlled measurements with ease.
Measurement Types
Supports outside, inside, depth, and step measurements, making it a versatile all-in-one precision measuring tool.
How We Tested This
We evaluated the Starrett electronic caliper to see how it performs in terms of sliding smoothness and overall measurement precision.
Smoothness Test: We assessed how easily the caliper’s jaws open and close by observing the resistance during movement.
Outside Measurement Accuracy Test: We verified external measurement accuracy using a 1-2-3 block set (3″, 2″, and 1″).
Inside Measurement Accuracy Test: We tested internal readings by measuring known inside diameters and comparing the results.
Depth Measurement Test: We checked the depth rod’s precision by measuring objects with predetermined depths.
Performance Test Results
To evaluate the accuracy, usability, and consistency of the Starrett electric slide caliper, we tested its performance in key areas such as smooth operation, external measurements, internal measurements, and depth readings.

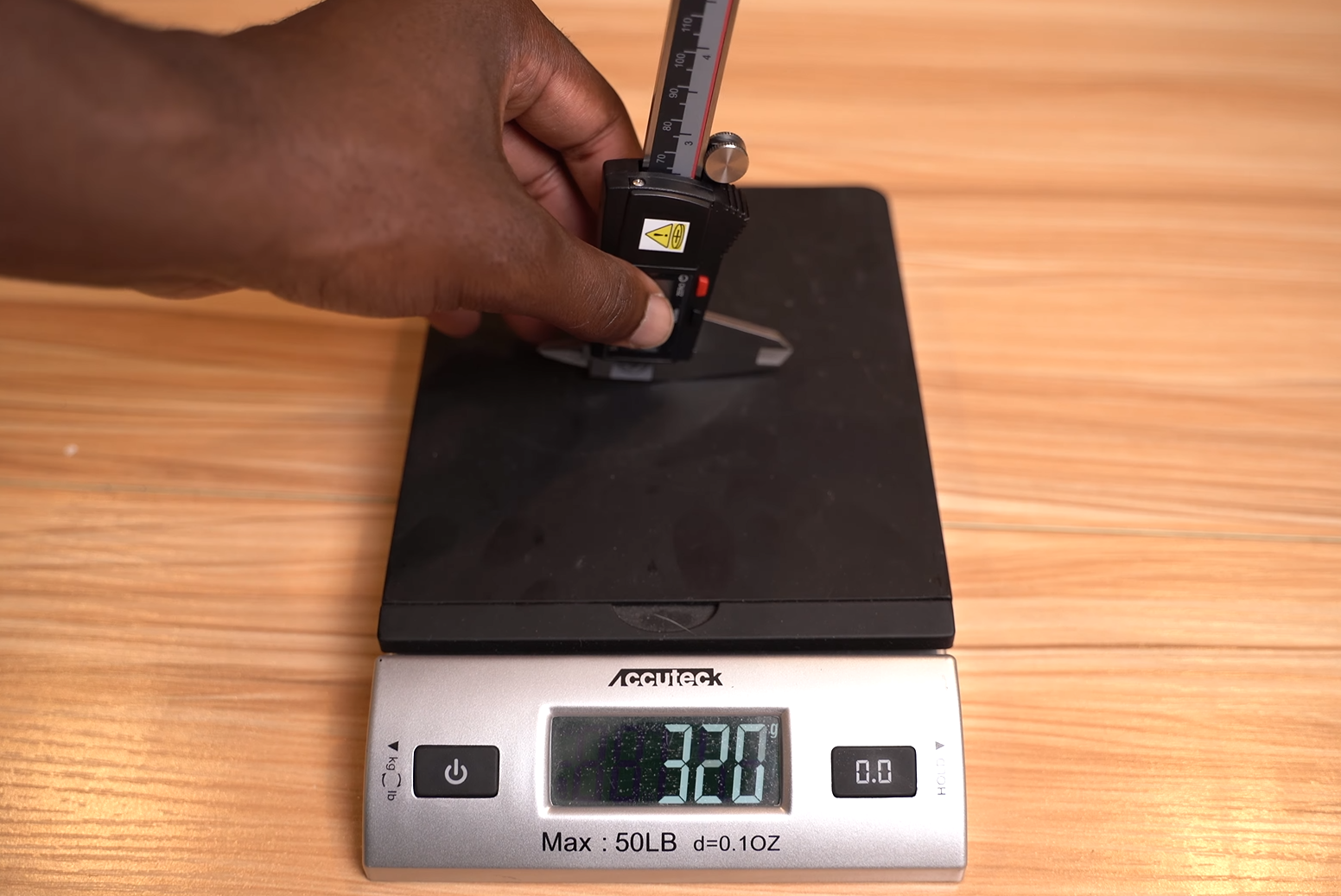

Smoothness Test
We used a scale to determine the amount of force required to close the caliper jaws.
Results
The reading stayed consistent at around 290 grams throughout most of the sliding range, only increasing slightly to about 320 grams when the jaws were fully closed.
Accuracy Test – Outside Measurements
We tested accuracy by measuring a 1-2-3 block using the caliper’s outside jaws.

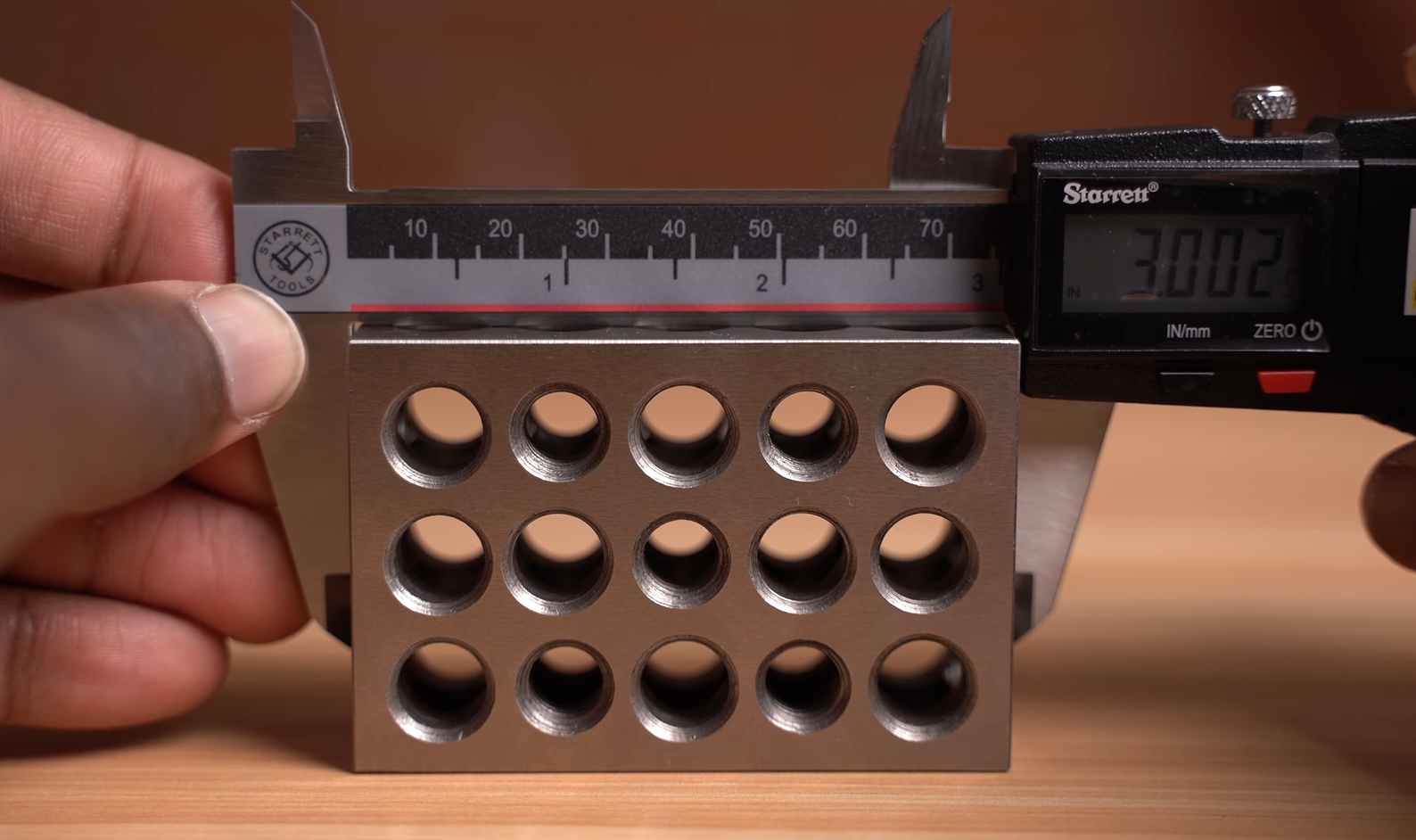

3-Inch Block
This measurement read 3.002 inches, showing very high accuracy for this test.

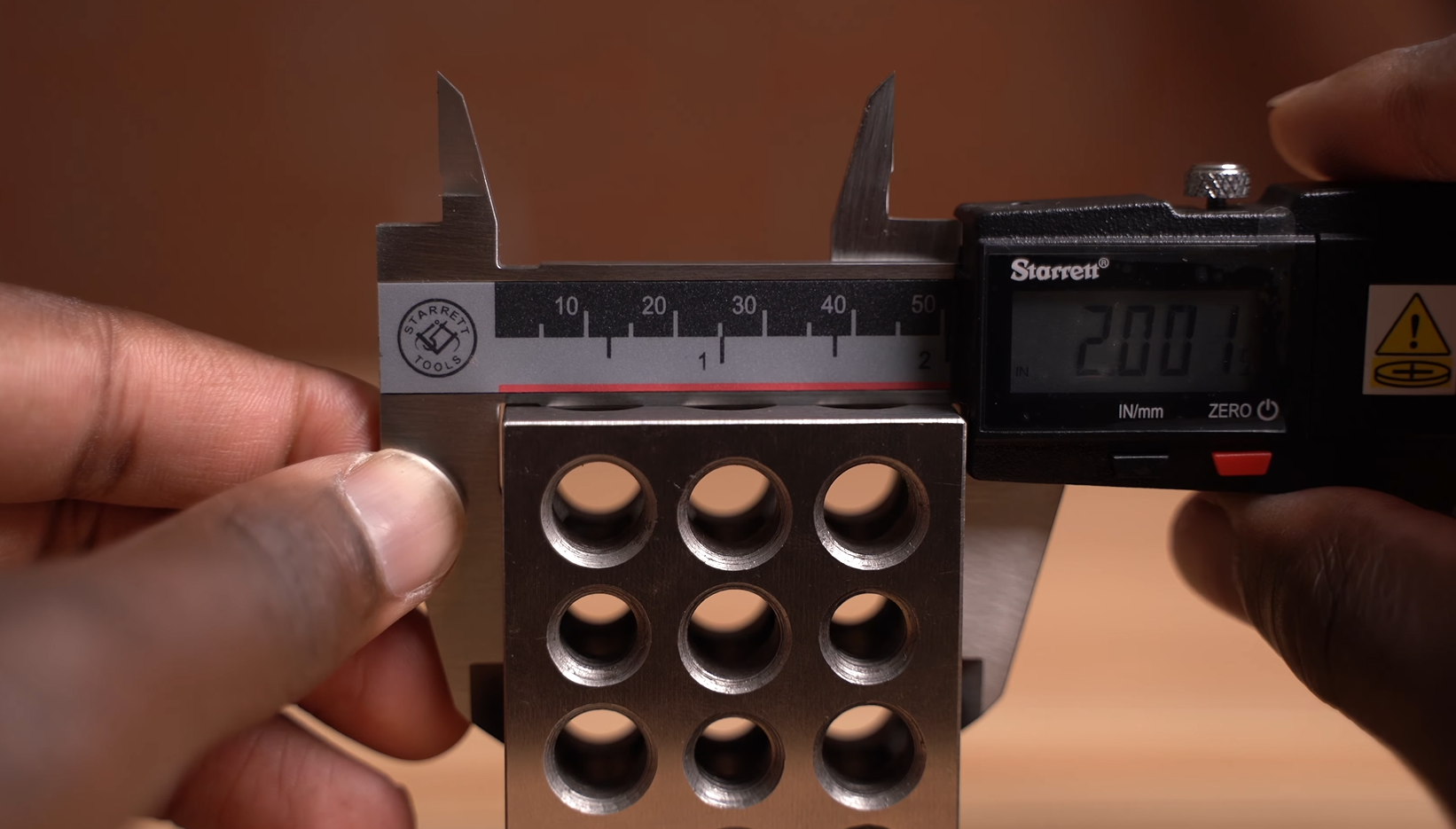

2-Inch Block
This read 2.001 inches, with minimal deviation from the expected value.

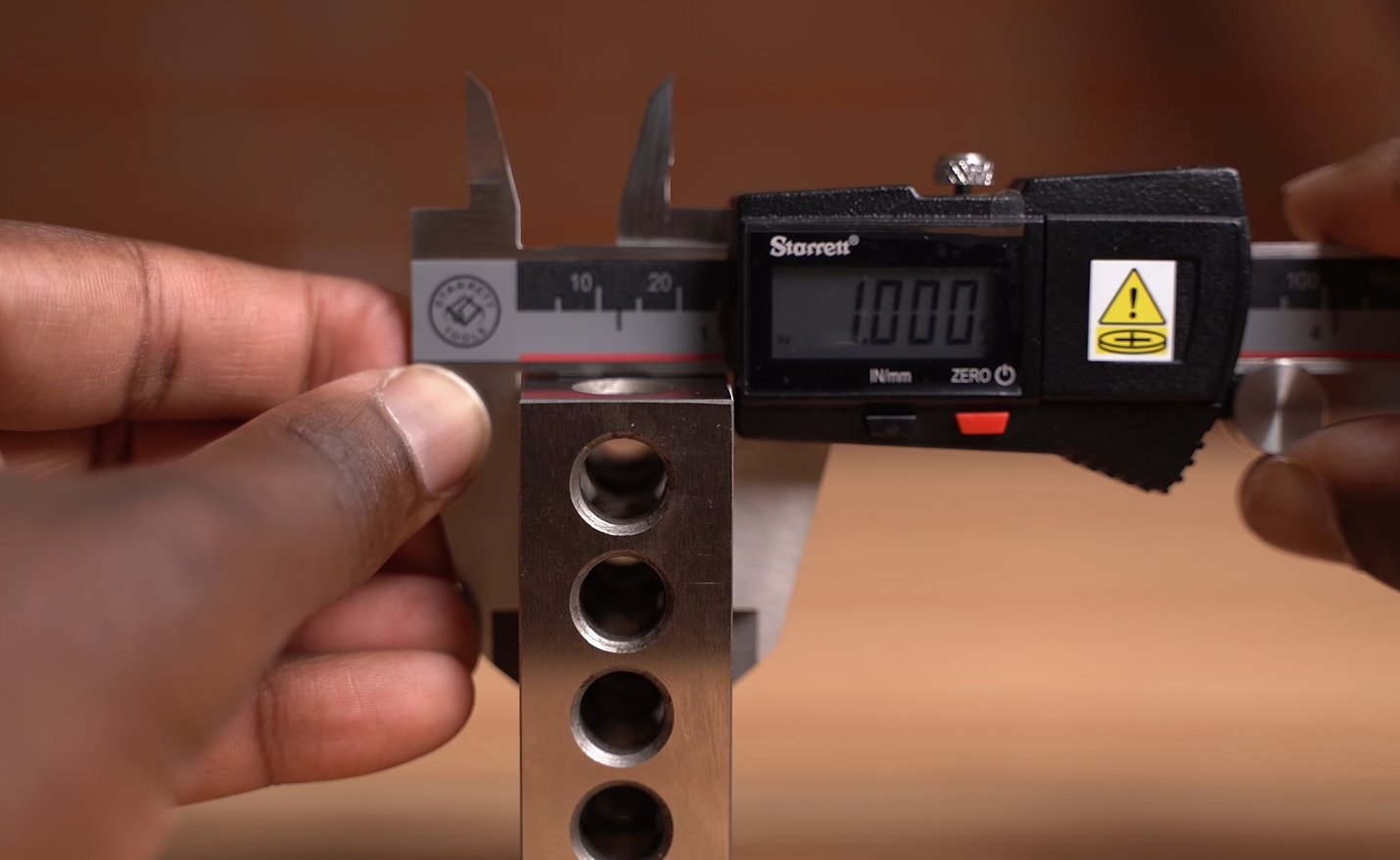

1-Inch Block
This measurement read 1.000 inches, showing perfect accuracy.
Overall Results
In the outside measurement test, the Starrett delivered accurate and consistent readings across the 1-inch, 2-inch, and 3-inch blocks. All measurements stayed very close to the expected values, showing strong reliability in external measurement performance and stable repeatability across different sizes.
Accuracy Test – Internal Measurements
The Starrett read 10.08 mm, showing strong accuracy in internal measurements. The result had only minimal deviation from the expected value, indicating consistent performance when measuring inside dimensions. This level of precision makes it reliable for tasks that require tight tolerances and repeatable internal readings.
Depth Measurement Test
We checked depth accuracy using the caliper’s depth rod on a block with a known 3-inch depth. The Starrett measured 3.000 inches, showing precise and accurate depth readings.

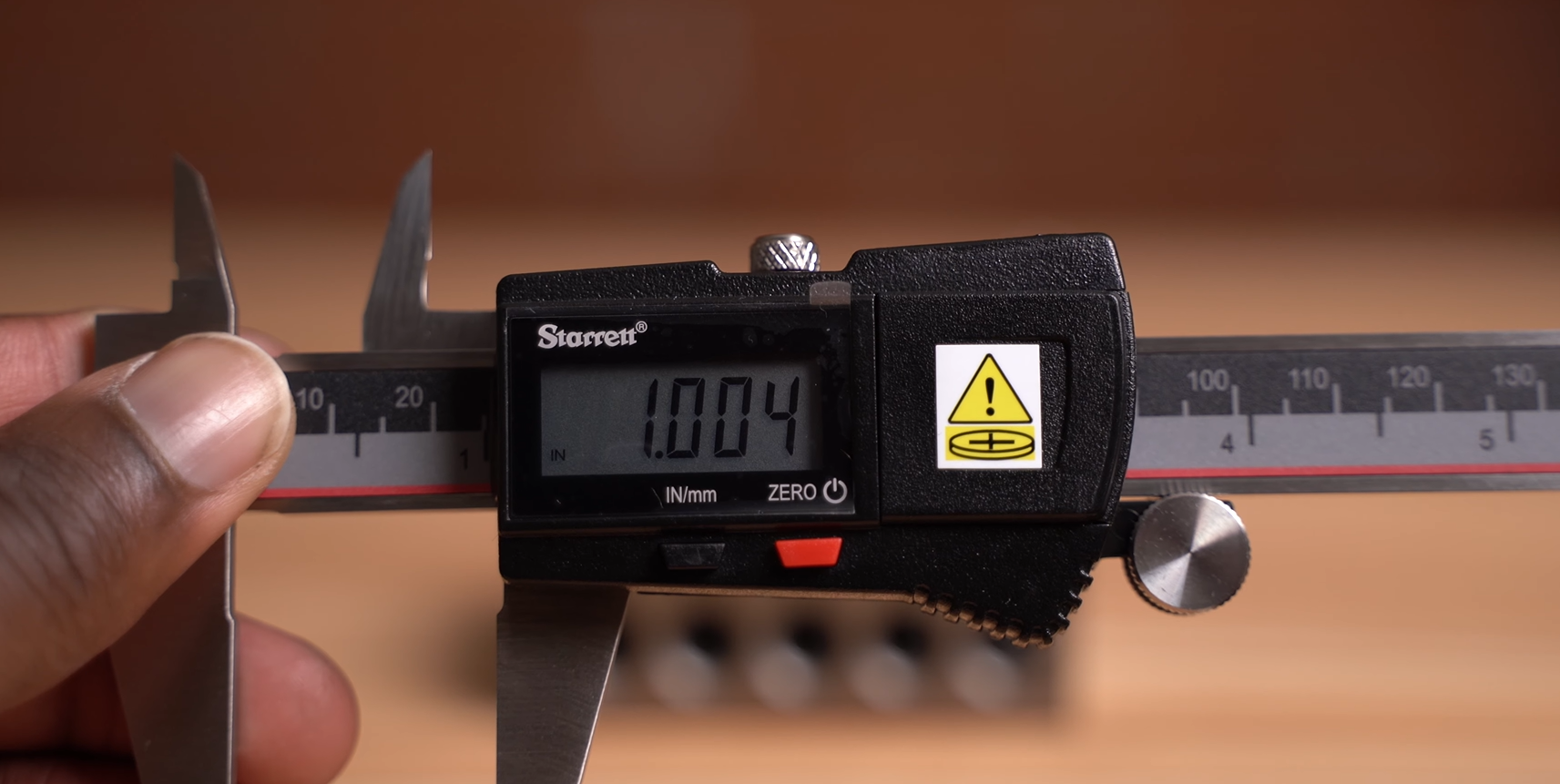

1-Inch Depth Test
The caliper read 1.004 inches when measuring a 1-inch depth block. This shows very accurate depth measurement with only a very small deviation from the expected value.
Starrett Electric Slide Caliper Pros and Cons
✅ Pros
Durable Stainless Steel Construction
Hardened stainless steel construction ensures long tool life, yet the caliper remains lightweight and ergonomic.
Last Reading Memory Function
Retains the last measured reading even when shut off — a practical advantage over most budget calipers that lose their position on power-off.
Extended Auto-Off Battery Saving
Auto-off activates after 30 minutes of no slide movement, which is far more generous than the 5-minute cut-off found on most competitors.
Smooth Precision Control
Fine adjustment thumb wheel ensures smooth, precise operation, and the zero setting works at any position.
Clear Digital Display
Large, high-contrast LCD digital readout makes readings clear and easy without squinting.
Data Connectivity Support (DataSure Compatible)
Compatible with Starrett DataSure Wireless Data Collection Systems, providing a modern way to record and manage measurements— useful for shop floor documentation.
Certified for Professional Use
Comes with a Standard Letter of Certification on SLC models, giving it traceability for professional and quality control environments.
Trusted Industry Standard
A long-standing machinist’s first choice, backed by a brand with over 140 years of precision tool manufacturing.
❌ Cons
Carries No IP rating
This means it is not certified for protection against water, coolant, or dust — a limitation for heavy shop environments. Users needing IP protection must upgrade to the Starrett 798 series.
Only Switches Between inch and mm
No fraction mode, which budget competitors like Hardell and Jiavarry offer as standard.
No SPC output on the A Model
Data output is only available on the B-series variant, meaning you need to buy the right model upfront if data logging is required.
High Price Point
Price sits at $80–$120+, making it a harder sell for casual or hobbyist users who do not need professional-grade reliability.
Basic Plastic Case
The included case is plastic, which feels underwhelming at this price point compared to the padded or hard-shell cases offered by some competitors.
Starrett EC799A 6 150 Caliper vs Other Digital Calipers
| Feature |
Featured
Starrett EC799A-6/150
|
Mitutoyo 530-119
|
Hardell Digital Caliper
|
Jiavarry Digital Caliper
|
|---|---|---|---|---|
| Type | Electronic (LCD) | Vernier (analog scale) | Digital (LCD) | Digital (LCD) |
| Range | 0–6" / 0–150mm | 0–12" / 0–300mm Largest range |
0–6" / 0–150mm Also 8" & 12" models |
0–6" / 0–150mm |
| Accuracy | ±0.02mm / ±0.001" High precision |
±0.04mm / ±0.0015" | ±0.03mm / ±0.001" | ±0.02mm / ±0.001" High precision |
| Resolution | 0.01mm / 0.0005" | 0.02mm / 0.001" | 0.01mm / 0.0005" | 0.01mm / 0.0005" |
| Measurement modes | OD, ID, depth, step | OD, ID, depth, step | OD, ID, depth, step | OD, ID, depth, step |
| Unit switching | mm / inch only | Dual scale printed No button needed |
mm / inch / fraction 3 units |
mm / inch / fraction 3 units |
| Build material | Hardened stainless steel Industrial grade |
Hardened stainless steel, satin-chrome | Stainless steel, waterproof | Stainless steel, IP54 rated |
| IP rating | Not rated | N/A (analog) | Select models only | IP54 certified |
| Power | CR2032 long-life battery Retains reading when off |
None (analog) No battery needed |
CR2032 or USB-C rechargeable | LR44 battery |
| Auto-off | 30 minutes Most generous |
N/A | 5 minutes | 5 minutes |
| Data output | RS232 on B model SPC compatible |
None | None | None |
| Best for | Machinists / Professional | Scientific / Industrial | DIY / Hobbyist | DIY / Budget |
| Price (approx.) | ~$80–$120 | ~$237–$267 | $28–$60 | ~$20 |
featured Starrett EC799A-6/150 | Mitutoyo 530-119 | Hardell Digital Caliper | Jiavarry Digital Caliper | |
|---|---|---|---|---|
Type | Electronic (LCD) | Vernier (analog scale) | Digital (LCD) | Digital (LCD) |
Range | 0–6″ / 0–150mm | 0–12″ / 0–300mm | 0–6″ / 0–150mm | 0–6″ / 0–150mm |
Accuracy | ±0.02mm / ±0.001″ | ±0.04mm / ±0.0015″ | ±0.03mm / ±0.001″ | ±0.02mm / ±0.001″ |
Resolution | 0.01mm / 0.0005″ | 0.02mm / 0.001″ | 0.01mm / 0.0005″ | 0.01mm / 0.0005″ |
Measurement modes | OD, ID, depth, step | OD, ID, depth, step | OD, ID, depth, step | OD, ID, depth, step |
Unit switching | mm / inch only | Dual scale printed | mm / inch / fraction | mm / inch / fraction |
Build material | Hardened stainless steel | Hardened stainless steel, satin-chrome | Stainless steel, waterproof | Stainless steel, IP54 rated |
IP rating | Not rated | N/A (analog) | Select models only | IP54 certified |
Power | CR2032 long-life battery | None (analog) | CR2032 or USB-C rechargeable | LR44 battery |
Auto-off | 30 minutes | N/A | 5 minutes | 5 minutes |
Data output | RS232 on B model | None | None | None |
Best for | Machinists / Professional | Scientific / Industrial | DIY / Hobbyist | DIY / Budget |
Price (approx.) | ~$80–$120 | ~$237–$267 | $28–$60 | ~$20 |
vs Mitutoyo 530-119
The Starrett edges ahead on convenience — digital readout, 30-minute auto-off, and last-reading retention make it faster to use in a busy shop environment. The Mitutoyo 530-119 counters with a wider 0–12″ range, no battery dependency, and a satin-chrome hardened build that many industrial users trust for long-term durability. Where the Starrett suits machinists who want speed and digital precision, the Mitutoyo is the go-to for scientific research and industries where analog reliability and a larger range matter more. For a deeper breakdown, see our Mitutoyo 530-119 vernier caliper review.
vs Hardell Digital Caliper
Both are electronic calipers, but the Starrett is built for a different level of use. Its 30-minute auto-off, last-reading retention, RS232 data output on the B model, and hardened stainless steel construction give it a clear advantage in professional settings. Hardell closes the gap with USB-C recharging, fraction mode, and a much lower price of $28–$60 vs $80–$120. For casual workshop or hobby use, Hardell is the smarter buy. For shop-floor reliability and documentation, the Hardell digital caliper review shows where it performs best.
vs Jiavarry Digital Caliper
These two are not competing for the same buyer. The Starrett brings hardened stainless steel, 30-minute auto-off, last-reading retention, and RS232 data output — none of which the Jiavarry offers. Ironically, the Jiavarry does win on one point: its certified IP54 rating for water and dust protection, which the Starrett EC799A lacks. At $20, the Jiavarry is a solid budget pick for hobbyists. At $80–$120, the Starrett is built for professionals who need shop-floor reliability and measurement documentation. For budget comparisons, see our Jiavarry digital caliper review.
Bottom line
On specs alone, the Starrett matches the Jiavarry on accuracy at ±0.02mm, leads on auto-off at 30 minutes, and is the only one that retains its last reading when powered off. It loses ground on IP rating and it is the only digital option here without fraction mode. Solid professional specs at a mid-to-premium price, but how it performs against the others in real testing is a different story. Our head-to-head caliper review breaks down the results across all four so you can decide with confidence.
Who Is the Starrett EC799 Electronic Caliper For?
Good For
Professional machinists and engineers
Ideal for users who need consistent, high-precision measurements in industrial and workshop environments.
Quality control and inspection technicians
Suitable for repetitive measuring tasks where accuracy and reliability are critical.
Serious hobbyists and woodworkers
A strong upgrade for users who want better build quality and more dependable readings than entry-level calipers.
DIY users with precision needs
Helpful for projects that require accurate measurements and easy unit conversion in a durable tool.
Not ideal for casual users
May be unnecessary for basic, occasional measuring tasks due to its professional-grade features and build.
Not Ideal For
Casual or occasional users
Not necessary for basic household measurements or infrequent use where high precision isn’t critical.
Budget-focused buyers
May be overkill if you only need a simple caliper for rough measurements, as there are cheaper alternatives that cover basic needs.
Users wanting ultra-cheap tools for light tasks
Entry-level calipers will be more practical if durability and long-term accuracy are not priorities.
Frequently Asked Questions
1. What is the difference between the Starrett EC799A and EC799B?
The only difference is data output. The EC799A has no SPC output, while output is available on the B models. If you need to connect your caliper to a computer or data collection system for measurement logging or statistical process control, go with the EC799B. For standalone shop use, the Starrett EC799A is sufficient.
2. Does the Starrett EC799A retain its reading when turned off?
Yes. The Starrett EC799 series calipers retain the last measured reading even when shut off. This is one of its most practical advantages — you never lose your position mid-task, and reactivating the display requires just a button press or any movement of the slide.
3. How long does the battery last on the Starrett EC799A?
The caliper turns off after 30 minutes of no slide movement, which helps preserve battery life significantly. It runs on a single CR2032 lithium coin cell. Battery life varies by usage, though real-world machinist feedback suggests it lasts considerably longer than older Starrett models that were known for draining batteries quickly.
4. Is the Starrett EC799A waterproof?
No. The EC799A carries no IP rating, meaning it has no certified protection against water, coolant, or dust. For environments with coolants, water, chips, and dirt, Starrett’s 798 series is the better choice as it includes IP67 protection.
5. Is the Starrett EC799A worth the price?
For professional machinists, yes. It is constructed with features that have made Starrett slide calipers the machinist’s first choice for many years — hardened stainless steel build, generous 30-minute auto-off, last-reading retention, and a trusted brand with over 140 years in precision tools. For casual or hobbyist use, the price is harder to justify when budget alternatives like Hardell deliver solid accuracy at a fraction of the cost.
Final Verdict: Is the Starrett Slide Caliper Worth It?
For professional machinists and engineers — yes, without hesitation.
The Starrett EC799A-6/150 delivers where it counts most in a shop environment. Hardened stainless steel construction, ±0.02mm accuracy, a generous 30-minute auto-off, and last-reading retention on power-off make it a genuinely reliable tool for daily professional use. The Standard Letter of Certification on SLC models adds traceability that serious work environments require, and the Starrett name carries real weight in precision tool circles for good reason.
That said, it has limitations worth being honest about. No IP rating means it is not suited for coolant-heavy environments — for that, you need to step up to Starrett’s 798 series. The EC799A model also lacks data output, so if SPC workflow integration matters to you, the EC799B is the version to buy. And at $80–$120, hobbyists and casual users will find better value elsewhere.
Buy it if you are a: Professional machinist, engineer, QC inspector, or serious workshop user who needs dependable accuracy and shop-floor reliability every day.
Skip it if you are a: Hobbyist, DIYer, or occasional user — the Hardell or Jiavarry deliver strong everyday performance at a fraction of the price.
Bottom line: The Starrett EC799A-6/150 is not the flashiest caliper on the market and it will not win on price. What it offers is something more valuable in a professional setting — consistency, durability, and a tool you can trust to perform the same way every single time. For the right user, it is absolutely worth it.
