Bosch GMS120-27 Wall Scanner Review: We Put It Through a Live Wall Test
Most stud finders do one thing — find studs. The Bosch GMS120-27 claims to do a lot more. Wood studs, steel studs, live electrical wiring, copper pipes, and non-magnetic metals — all behind your wall, all detected by one device. That is a bold claim for a single tool, and at $103.38 it had better deliver.
We built a dedicated mock wall loaded with six different materials and put the Bosch GMS120-27 through every scenario a real wall could throw at it. No cherry-picked tests, no ideal conditions, just a straight, honest evaluation of what this wall scanner can and cannot do.
If you are a contractor, electrician, plumber, or serious DIYer trying to decide whether the Bosch is worth adding to your toolkit, this Bosch GMS120-27 wall scanner review gives you the full picture. And if you are still comparing it against other top stud finders, check out our complete Franklin Sensors ProSensor 710+ vs Bosch GMS120-27 comparison to see how they stack up head to head.
⭐ Quick Verdict
The Bosch GMS120-27 is a professional-grade multi-material wall scanner that goes well beyond basic stud finding. It passed our wood stud, ducting hose, and copper pipe detection tests, but struggled with live electrical wire detection through drywall and triggered a false positive during sewer pipe detection. A capable tool for trade professionals — but not without its limitations.

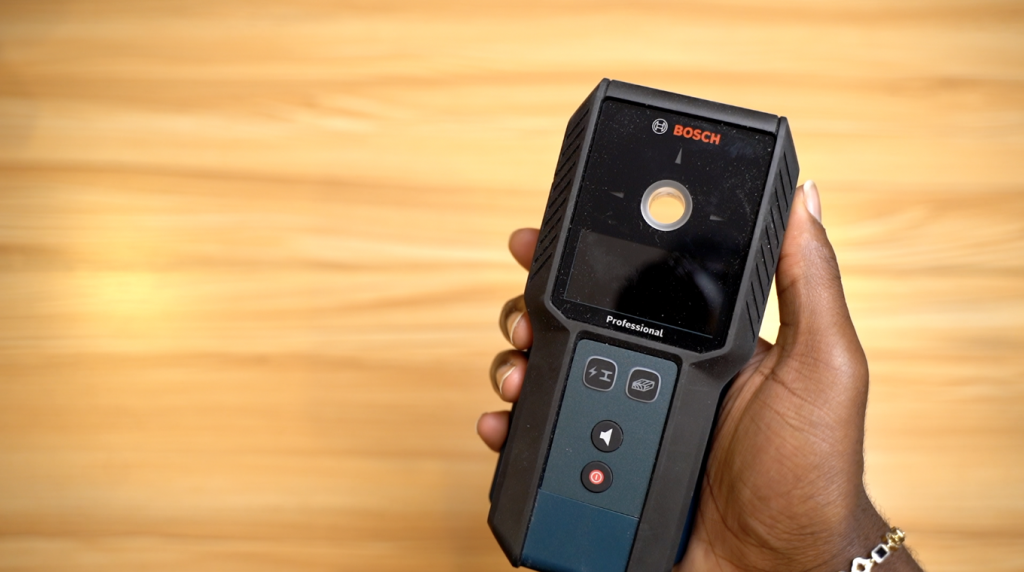

Bosch GMS120 27 Wall Scanner Review: Key Features & Specifications
The Bosch GMS120-27 is a professional-grade multi-function wall scanner built for anyone who needs to know exactly what is behind a wall before drilling. Unlike basic stud finders that only locate wood studs, the GMS120-27 goes several steps further — detecting wood and steel studs, magnetic and non-magnetic metals, live electrical wiring, and copper pipes all in one device. With a scan depth of up to 4.7 inches and an IP54 rating for dust and water resistance, it is built to handle real job site conditions.
Key Features
Multi-Material Detection
The GMS120-27 detects four types of materials behind walls in a single device — wood and steel studs, magnetic and non-magnetic metals, live electrical wiring, and copper pipes — making it a true all-in-one wall scanner.
Deep Scan Capability With Varying Detection Depths
Detection depths vary by material — up to 120mm for non-magnetic metal, 100mm for magnetic metal, 50mm for live electrical wires, and 30mm for wood studs — giving it one of the deepest and most versatile detection ranges in its category.
Color-Coded Illuminated Marking Ring
The color-coded illuminated marking ring makes fast, accurate work of transferring detection results — displaying object center indication and material identification clearly without any guesswork.
Center Identification With Marking Hole
The built-in center finder pinpoints the exact center of any detected object and lets you mark the precise drilling point directly through the built-in marking hole — no separate measurement step needed.
Dual Power Options
The GMS120-27 offers two power source options — two AA batteries or a USB-C rechargeable Bosch LM-BAT 3.7V Lithium-Ion 1.0 Ah battery pack — keeping it running on the job without downtime.
USB-C Charging
The optional Li-Ion battery charges via USB-C using any standard 5V power supply including laptops, power banks, and car chargers — one of the most convenient charging options available on a professional wall scanner.
IP54 Rated Jobsite-Tough Construction
The GMS120-27 was developed for tough job sites with IP54 dust and splash water protection plus a shock-absorbing rubber casing — built to handle real working conditions that would damage lesser tools.
Intuitive User Interface
The easy-to-use detector offers simple mode selection with dedicated modes for wood, metal, and live AC wiring — allowing users to switch quickly between detection types without complicated menus or settings.
Live Wire Detection Up to 50mm
The GMS120-27 detects live electrical cables up to 50mm deep — alerting users before they drill into a potentially dangerous area, adding a critical safety layer that basic stud finders completely lack.
Professional Grade Build for Trade Use
The Bosch GMS120-27 was designed to help trade professionals identify concerns behind walls, making it the preferred choice for electricians, plumbers, contractors, and remodelers who need reliable, accurate results on every job.
Specifications
| Specification | Details |
|---|---|
| Product Name | Bosch GMS120-27 Wall Scanner |
| Price | $103.38 |
| Dimensions | 7.32 x 3.4 x 1.3 inches |
| Weight | 0.64 lb |
| Max Detection Depth — Non-Magnetic Metal | Up to 4.7 inches (120mm) |
| Max Detection Depth — Magnetic Metal (Steel) | Up to 4 inches (100mm) |
| Max Detection Depth — Live Electrical Wiring | Up to 2 inches (50mm) |
| Max Detection Depth — Wood Studs | Up to 1.5 inches (30mm) |
| Detection Modes | 3 — Wood, Metal, AC Wiring |
| Display Type | Color-coded illuminated marking ring with center indication |
| IP Rating | IP54 — dust and water resistant |
| Casing | Shock-absorbing rubber |
| Power Source | 2 x AA batteries (included) or 3.7V Li-Ion battery (sold separately) |
| USB-C Charging | ✅ Via optional Li-Ion battery |
| Built-in Center Finder | ✅ |
| Built-in Marking Hole | ✅ |
| Audible Detection Signal | ✅ |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Target Materials | Wood studs, steel studs, magnetic metals, non-magnetic metals, live wiring |
| Warranty | 1 year limited — 2 years with registration within 8 weeks |
| What's in the Box | GMS120-27 Wall Scanner, 2 x AA batteries, soft protective pouch |
How We Tested the Bosch GMS120-27

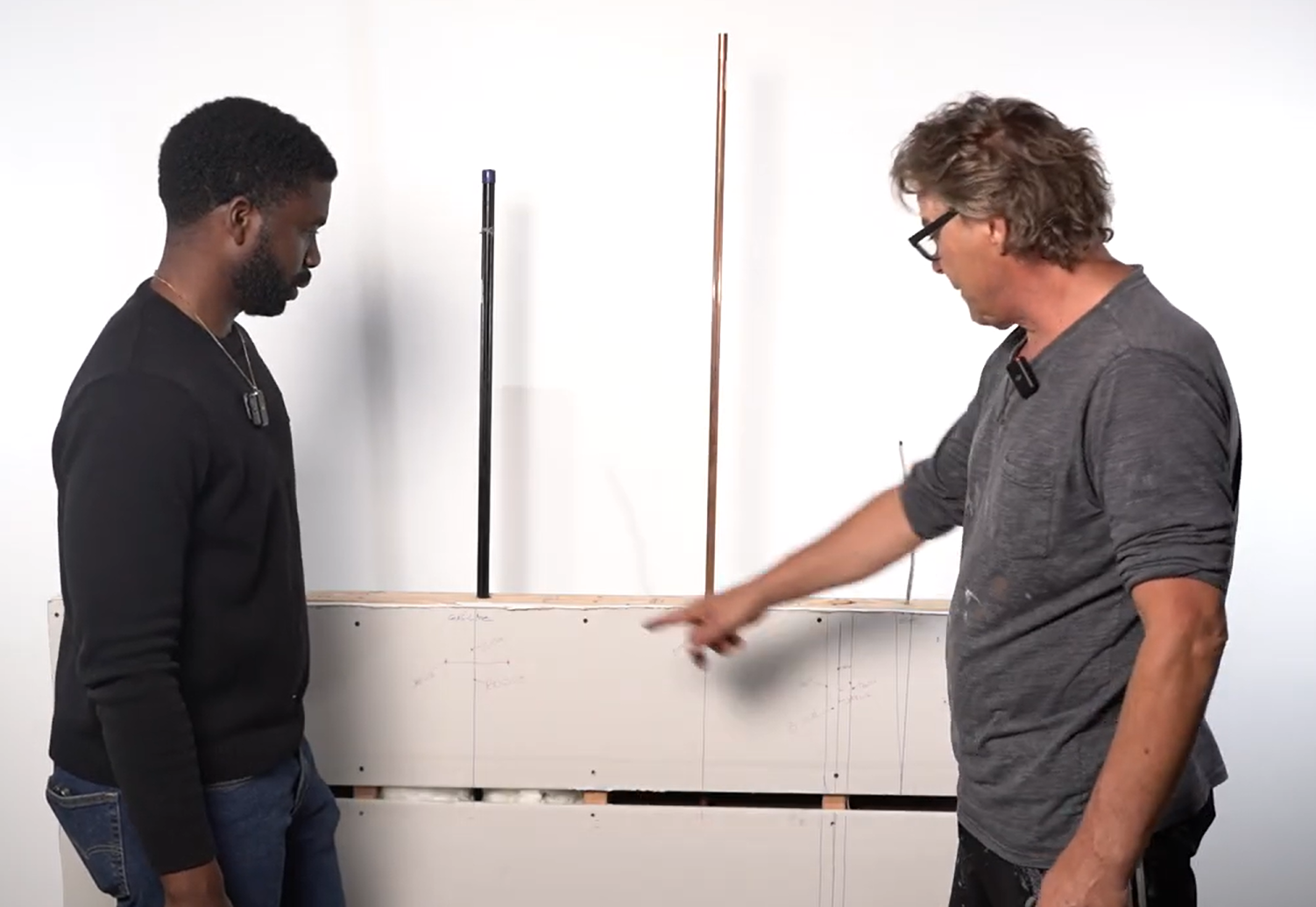

Testing Setup
We wanted this test to reflect what you would actually find inside a real wall not just metal studs. So we brought in a handyman to build a mock wall from the ground up. The wall was set up with wood studs spaced 16 inches apart, just like a standard home, and packed with the kinds of materials that are commonly hidden behind drywall:
Wood studs
Copper pipe
Gas line
Sewer pipe
Flexible ducting hose
Live electrical cable
Testing the Bosch GMS120-27 against all of these materials in one controlled setup gave us a far more complete and honest picture of what it can and cannot detect — something a basic stud-only test would never show.
Performance Test Results

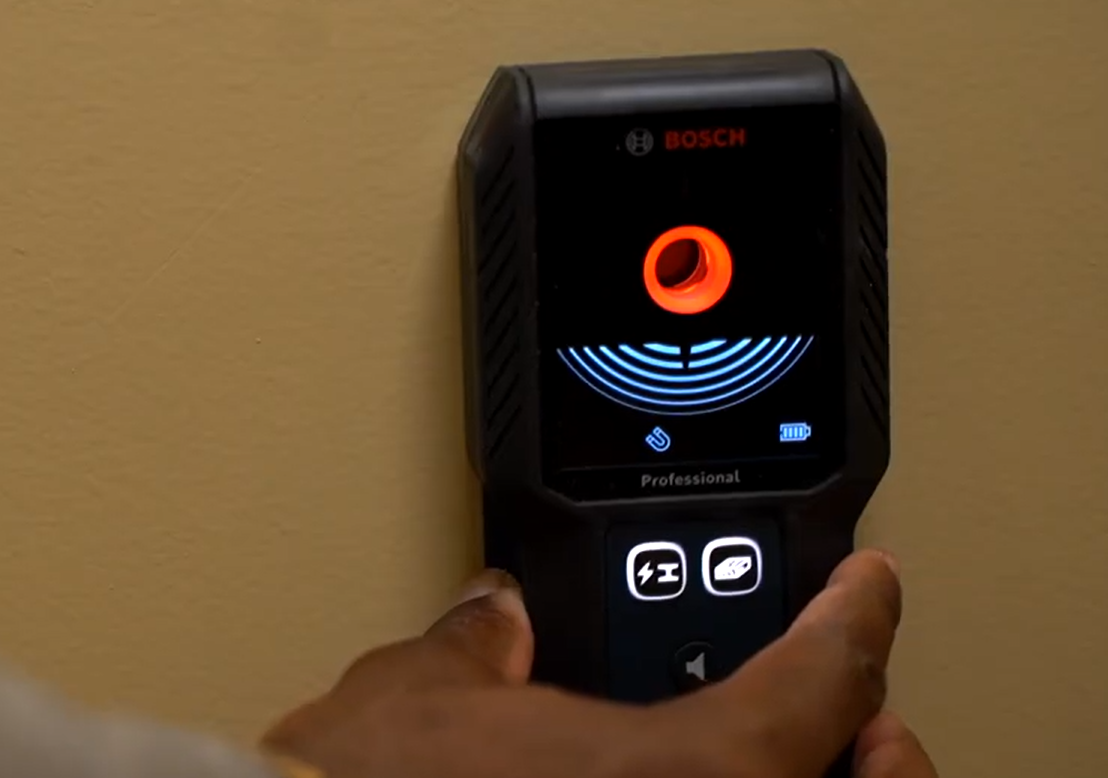

Wood Studs Detection
Observation

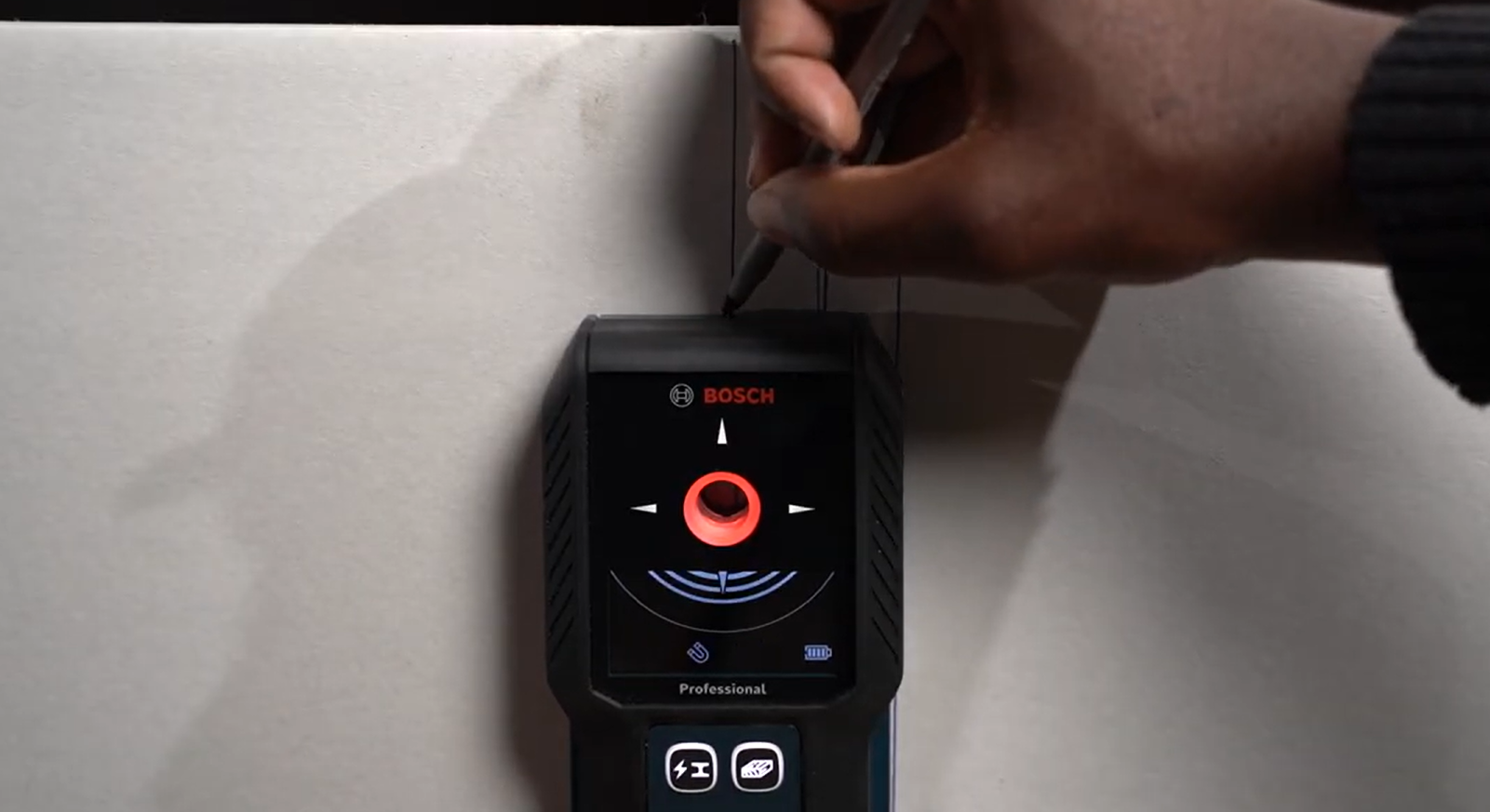

The Bosch GMS120-27 delivered a wide and accurate reading when scanning over the wood studs. It clearly identified the general stud location and provided a reliable center point without any hesitation.
Result
The Bosch wall scanner passed this test without issue. It located the wood studs accurately and gave a clear, confident center indication which is exactly what you would expect from a professional-grade wall scanner.

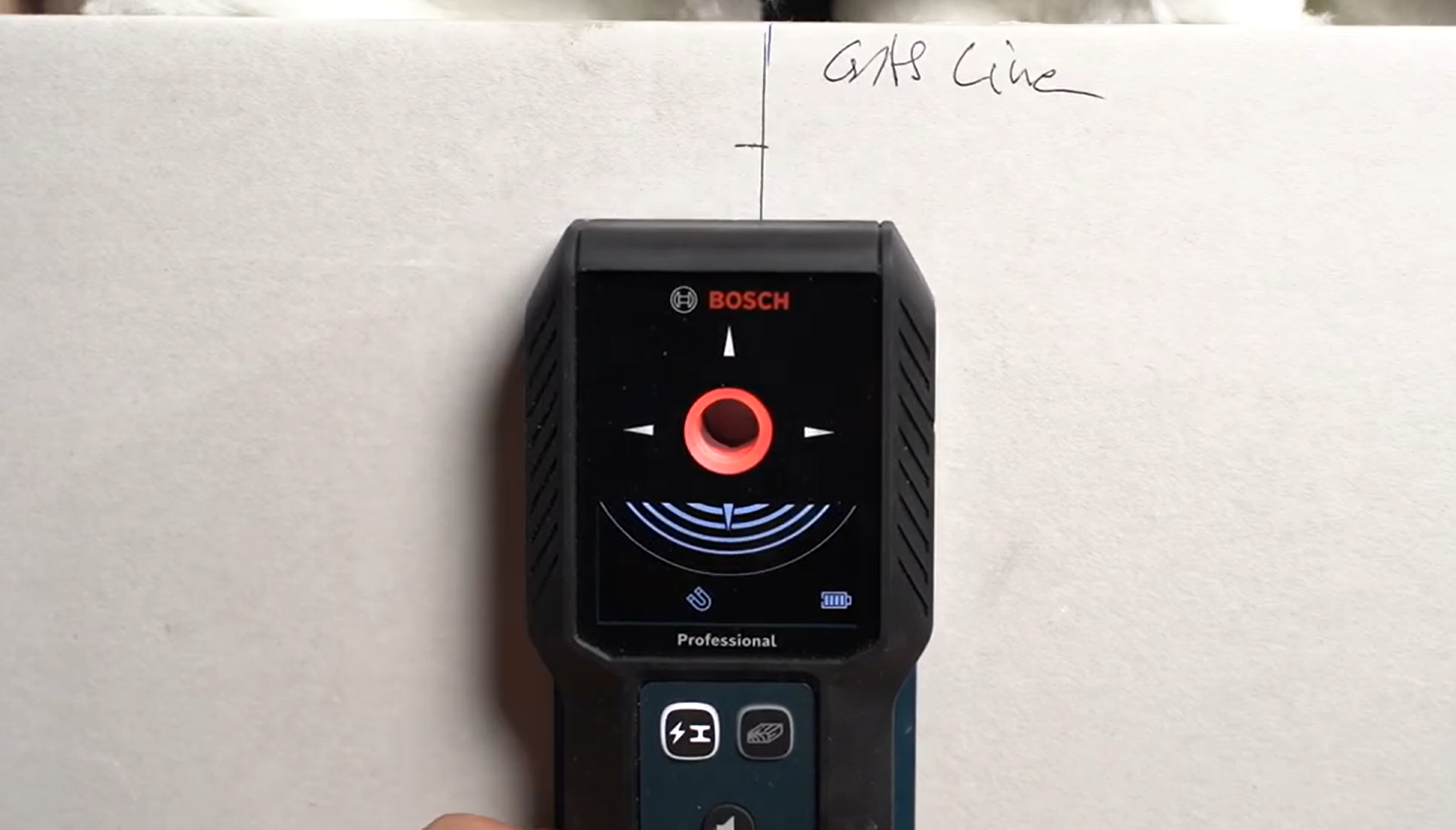

Gas Line Detection
Observation
Running the Bosch GMS120-27 over the gas line multiple times, it did pick up the metal — the beeping and flashing indicators fired as expected. However, the reading came in slightly off-center, consistently detecting to the left of the actual gas line location rather than directly over it.
Result
The Bosch detected the metal gas line and showed a clear signal, but the reading came in slightly off-center. It recognized that something was there and got close — just not precise enough to pinpoint the exact location with full confidence. Reliable for detection, but double-checking the exact spot before drilling is recommended.

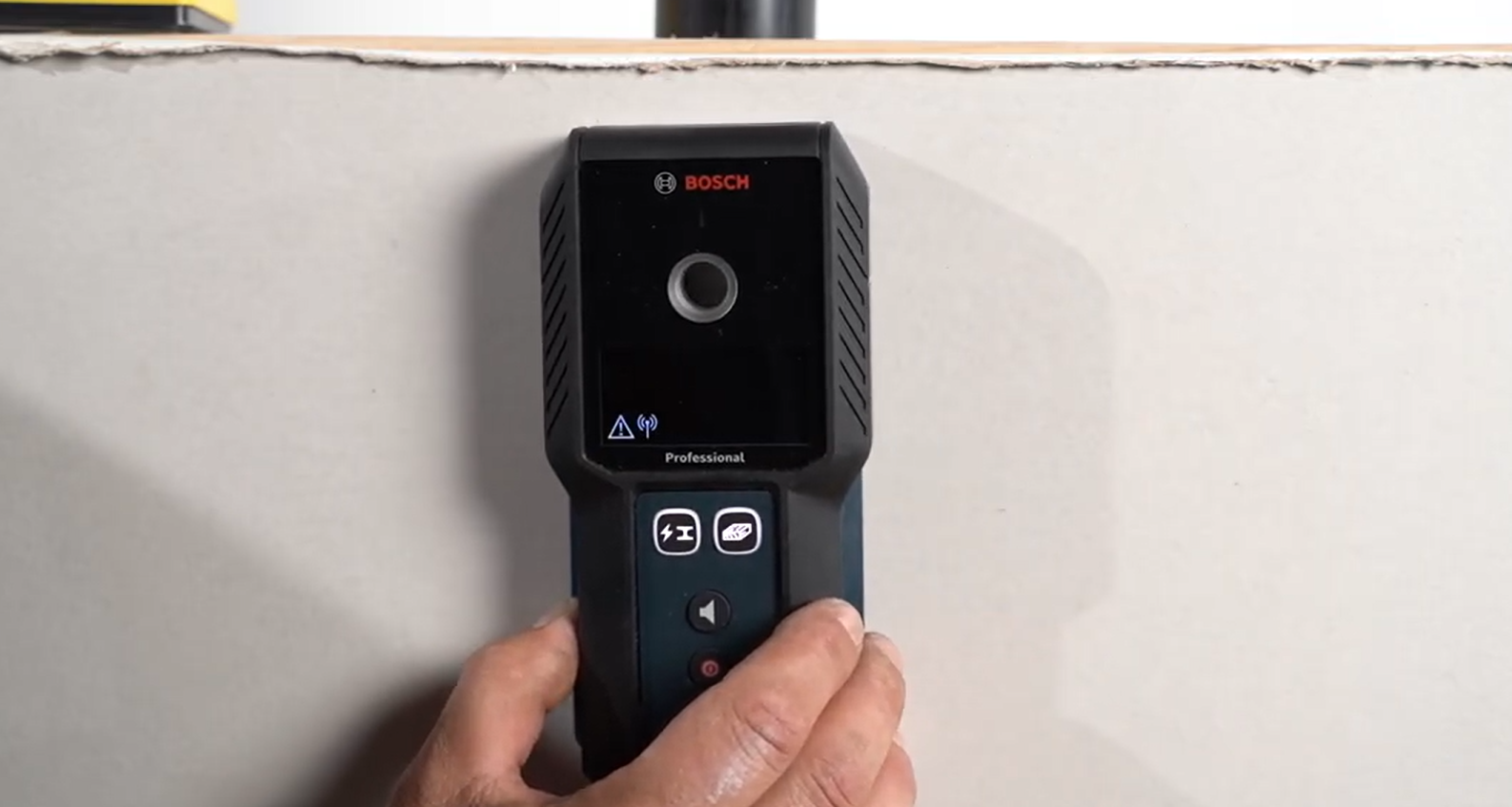

Sewer Pipe Detection
Observation
This was one of the more surprising results of the entire test. As the Bosch GMS120-27 passed over the sewer pipe, it suddenly displayed a warning symbol indicating the presence of electrical wiring — despite there being no electrical cable anywhere near that section of the wall. The device appeared confused and gave an erratic, unreliable reading throughout.
Result
The Bosch failed this test due to a clear false positive. Triggering an electrical warning where no electrical cable exists is a significant concern — it could easily mislead a user into thinking there is live wiring behind the wall when there is not, or cause unnecessary hesitation and confusion on the job. For sewer pipe detection, the Bosch GMS120-27 is not reliable.

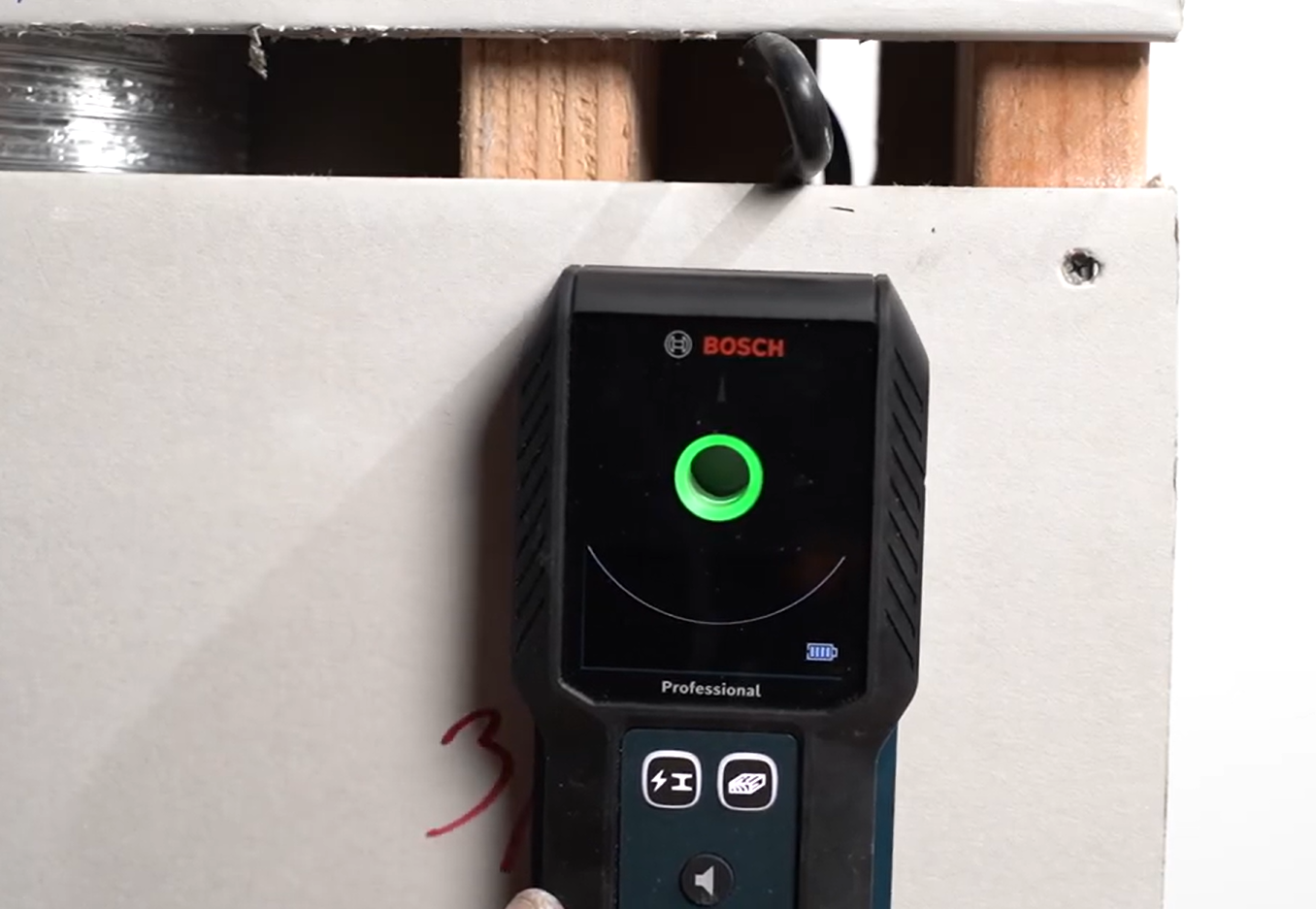

Electrical Wire Detection
Observation
The Bosch GMS120-27 struggled to pick up the live electrical wire hidden behind the drywall. It showed no reliable response during normal scanning. The only time it registered any detection was when the cable was placed directly against the device itself — completely bypassing the wall entirely.
Result
The Bosch failed this test under real wall conditions. A wall scanner that only detects live wiring when the cable is pressed directly against it offers no practical safety value on an actual job. For live electrical wire detection through drywall, the Bosch GMS120-27 did not perform as expected and cannot be relied upon in this specific scenario.

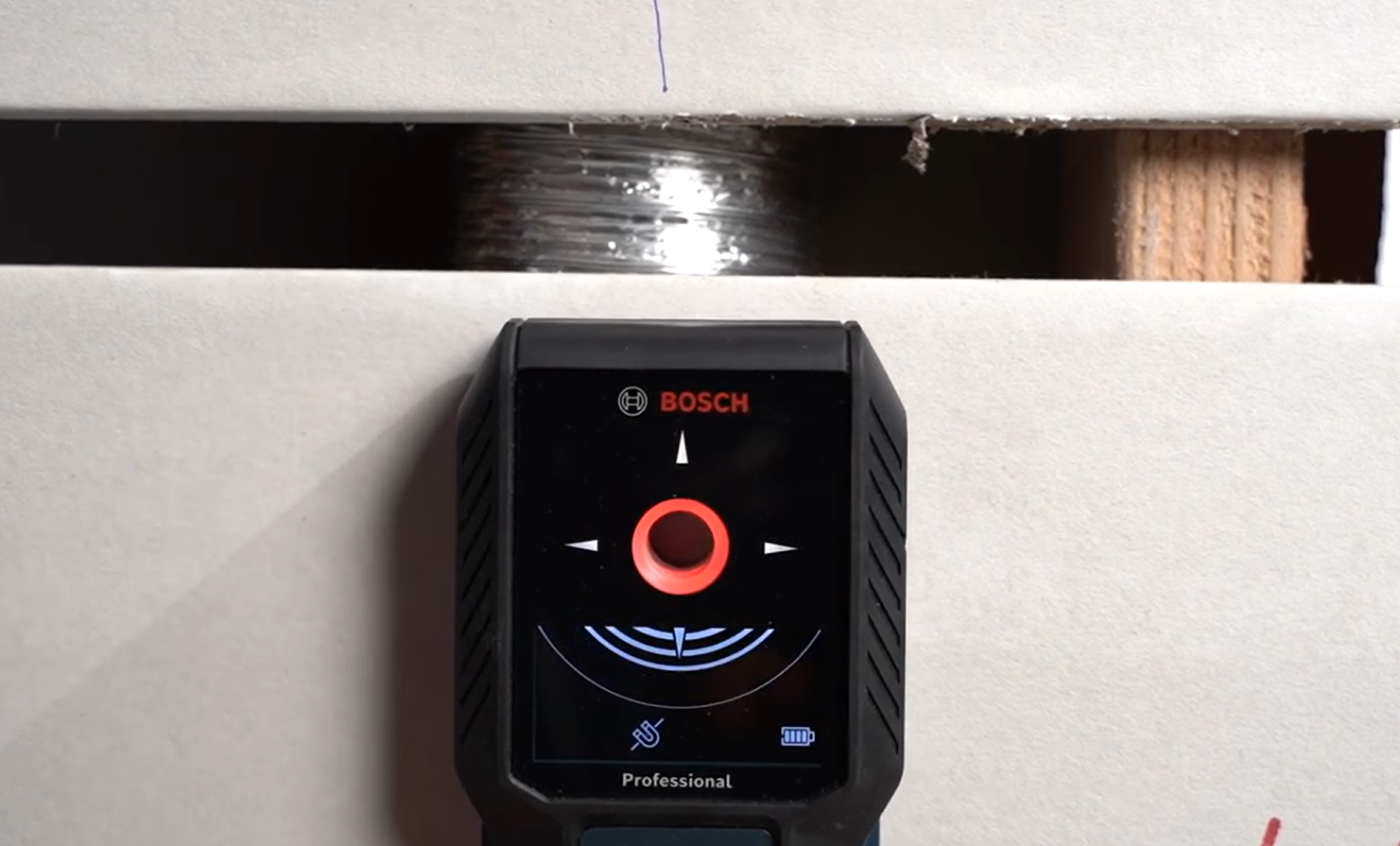

Ducting Hose Detection
Observation
Running the Bosch GMS120-27 across the wall multiple times, it consistently picked up the ducting hose with accurate and reliable readings each time. The detection was clear and repeatable throughout the test.
Result
The Bosch passed this test without any issues, delivering accurate detection of the ducting hose location behind the drywall consistently across every pass.

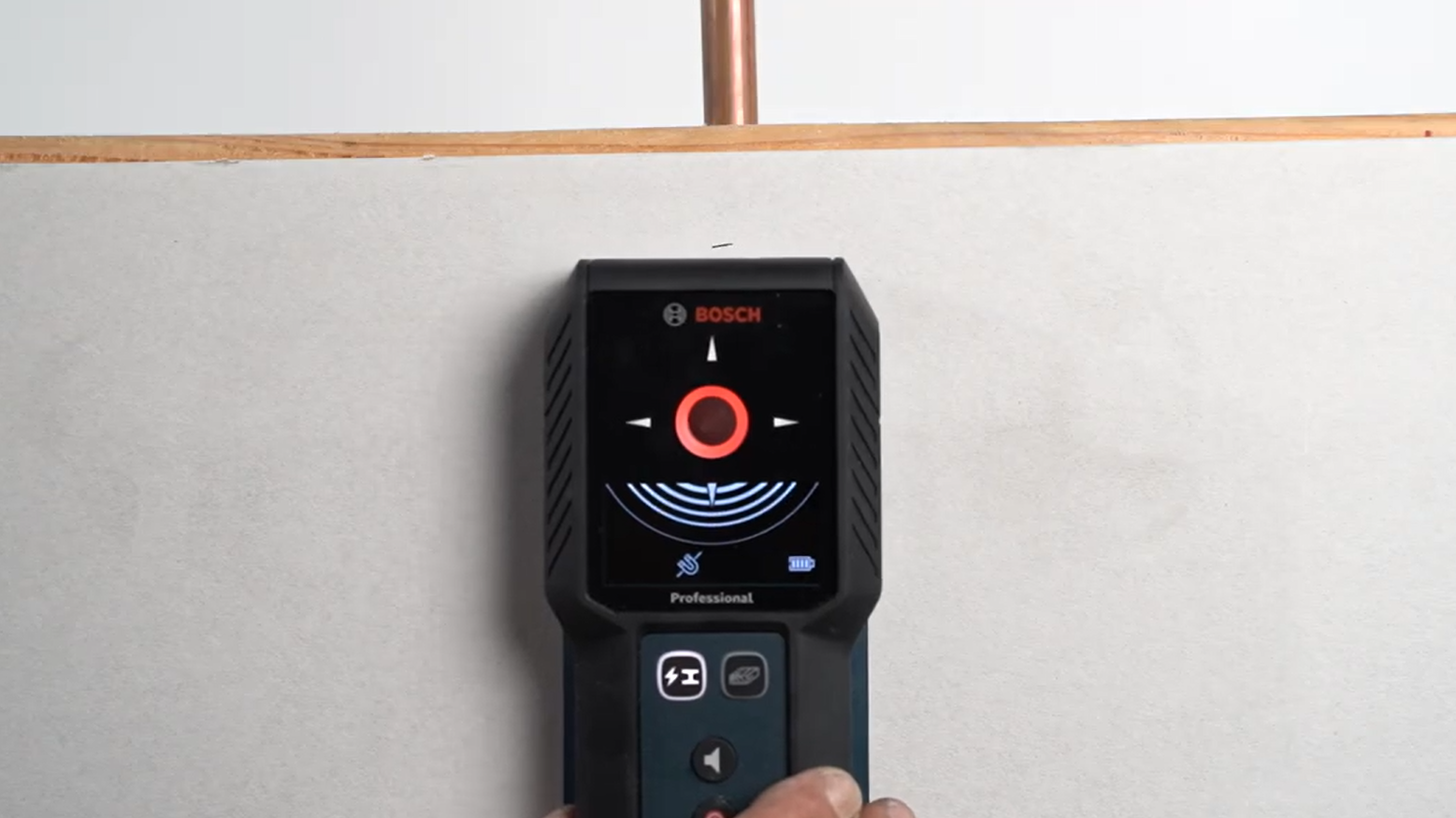

Copper Pipe Detection
Observation
As the Bosch GMS120-27 passed over the copper pipe, it beeped and signaled that it had recognized the material. The reading came in slightly to the left of the actual pipe location but remained close enough to give a generally accurate indication of where the copper pipe was positioned behind the wall.
Result
The Bosch passed this test with a mostly accurate result. The slight left shift in the reading is a minor inconsistency but does not take away from the fact that it successfully identified the copper pipe — something most basic stud finders cannot do at all. For copper pipe detection, the Bosch GMS120-27 proves its value as a multi-material scanner.
Overall Results
| Test | Expected Outcome | Actual Result | Verdict |
|---|---|---|---|
| Wood Stud Detection | Accurately detects and locates wood studs behind drywall | Delivered a wide, accurate reading with a reliable center point indication | ✅ PASSED |
| Gas Line Detection | Accurately detects and pinpoints metal gas line location | Detected the gas line but reading came in slightly off-center | ⚠️ PARTIAL |
| Sewer Pipe Detection | Detects and locates sewer pipe behind drywall | Triggered a false positive electrical warning with no electrical cable present | ❌ FAILED |
| Electrical Wire Detection | Detects and warns of live electrical cable through drywall | Only responded when cable was pressed directly against the device — not through the wall | ❌ FAILED |
| Ducting Hose Detection | Accurately detects flexible ducting hose behind drywall | Consistently delivered accurate and repeatable detection readings | ✅ PASSED |
| Copper Pipe Detection | Accurately detects and locates copper pipe behind drywall | Successfully detected copper pipe with a slightly off-center reading | ⚠️ PARTIAL |
Bosch GMS120-27 Wall Scanner Pros and Cons
✅ Pros
Detects multiple materials in one device — wood studs, steel studs, magnetic and non-magnetic metals, live wiring, and copper pipes
Deep scan capability of up to 4.7 inches — significantly deeper than most stud finders
Successfully detected copper pipe — a material most basic stud finders completely miss
Consistent and accurate ducting hose detection
Color-coded marking hole (illuminated marking ring) makes results easy to read at a glance
Built-in center finder with marking hole for precise drilling point identification
Dual power options — AA batteries or rechargeable Li-Ion battery
USB-C charging via optional Li-Ion battery
IP54 rated — dust and water resistant for jobsite use
Shock-absorbing rubber casing for added durability
Audible detection signal for hands-free awareness
1 year limited warranty — 2 years with registration
Professional grade build designed for electricians, plumbers, and contractors
❌ Cons
Gas line and copper pipe readings came in slightly off-center — not precise enough to drill without double-checking
Failed to detect live electrical wiring through drywall under real wall conditions
Triggered a false positive electrical warning during sewer pipe detection — a significant reliability concern
Higher price point at $103.38
Li-Ion rechargeable battery sold separately — not included in the standard kit
Requires manual mode switching between wood, metal, and AC wiring detection
Heavier and bulkier than basic single-purpose stud finders
Detection depth for wood studs is only 1.5 inches — less than some competitors
Bosch GMS120-27 Wall Scanner Vs. Franklin Sensors Prosensor 710+
| Feature | Bosch GMS120-27 | Franklin Sensors ProSensor 710+ |
|---|---|---|
| Type | Multi-function wall scanner | Multi-sensor stud finder |
| Number of Sensors | Single scanning sensor | 13 sensors |
| Detection Depth | Up to 4.7 inches (120mm) | Up to 1.6 inches |
| Wood Stud Detection | ✅ | ✅ |
| Metal Detection | ✅ Magnetic & non-magnetic metals | ✅ Metal studs only |
| Live Wire Detection | ✅ | ❌ |
| Copper Pipe Detection | ✅ | ❌ |
| Gas Line Detection | ⚠️ Slightly off-center | ⚠️ Inconsistent |
| Sewer Pipe Detection | ❌ False positive | ❌ |
| Ducting Hose Detection | ✅ | ✅ |
| Simultaneous Detection | ❌ Single object at a time | ✅ Up to 2 objects at once |
| Calibration Required | ✅ Yes | ❌ No |
| Display Type | Color-coded LED ring with center indicator | 13 LED indicators |
| Full Stud Width Display | ❌ Center only | ✅ |
| Built-in Ruler | ❌ | ✅ |
| Built-in Bubble Level | ❌ | ✅ |
| IP Rating | ✅ IP54 | ❌ None |
| Battery Type | 2 x AA or 3.7V Li-Ion (sold separately) | 2 x AA batteries |
| Rechargeable Battery | ✅ Li-Ion option available | ❌ Not compatible |
| Made in USA | ❌ | ✅ |
| Best For | Professionals needing multi-material detection | DIY homeowners needing stud detection with leveling |
| Price | $103.38 | $54.95 |
At $103.38, the Bosch GMS120-27 sits at a higher price point than the Franklin ProSensor 710+ at $54.95 — but the difference in capability is significant. The Bosch is a true multi-material wall scanner that delivers more precise detection of wood and steel studs, magnetic and non-magnetic metals, copper pipes, and live wiring at scan depths of up to 4.7 inches. For anyone who needs to know everything behind a wall before drilling, it is in a different league from a standard stud finder.
The Franklin ProSensor 710+ is faster, simpler, and more affordable — but it is purpose-built for stud detection only. It cannot detect live wiring, copper pipes, or gas lines with any reliability. If your project involves more than just studs, it will fall short.
If you are a professional electrician, plumber, or contractor who needs confident multi-material detection and more precise detection on the job, the Bosch GMS120-27 is the more capable and appropriate tool. For everyday DIY stud finding, the Franklin is the better value.
Read our complete Franklin Sensors ProSensor 710+ review to see how it performed in our live wall test.
Is the Bosch GMS120-27 Wall Scanner Right for You?
The Bosch GMS120-27 is built for anyone who needs more than just a stud finder but a professional-grade multi-material scanner designed for people who need to know exactly what is behind a wall before they drill.
Who Will Get the Most Out of It:
Electricians and Contractors
If your work regularly involves drilling or cutting into walls, knowing where live wiring is hidden is not optional — it is a safety requirement. The Bosch GMS120-27 is designed specifically for trade professionals who need reliable multi-material detection on every job.
Plumber
Finding copper pipes behind walls before cutting into them can save significant time, money, and damage. The Bosch detected copper pipe in our test — something most basic stud finders simply cannot do.
Remodelers and Renovators
If you are taking down walls, installing new fixtures, or running new lines through existing structures, having a scanner that detects multiple materials in one pass is a genuine time-saver and safety net.
Homeowners Tackling Complex Projects
For everyday picture hanging or shelf mounting, the Bosch is more tool than you need. But if you are doing a major home improvement project that involves drilling into unfamiliar walls, the added detection capability gives you confidence that a basic stud finder cannot.
Anyone Working on Older Homes
Older homes often have unpredictable layouts behind walls — irregular stud spacing, older wiring, and mixed pipe materials. The Bosch’s multi-material detection and deep scan capability make it better suited for these situations than a standard stud finder.
Who Should Skip the Bosch GMS120-27
Anyone who only needs to find studs for basic hanging and mounting tasks
Budget-conscious buyers who don’t need multi-material detection
DIY beginners who want a simple, straightforward tool without a learning curve
Anyone who needs a tool that displays full stud width rather than center point only
Those who prefer a Made in USA product
Frequently Asked Questions
1. What can the Bosch GMS120-27 detect?
The Bosch GMS120-27 detects four types of materials — wood and steel studs, magnetic and non-magnetic metals, live electrical wiring, and copper pipes. It uses three dedicated modes — Wood, Metal, and AC Wiring — allowing you to switch between detection types depending on what your project requires.
2. How deep does the Bosch GMS120-27 detect?
Detection depth varies by material. It scans up to 4.7 inches for non-magnetic metals, up to 4 inches for magnetic metals, up to 2 inches for live electrical wiring, and up to 1.5 inches for wood studs. This makes it one of the deepest-scanning wall detectors available at its price point.
3. Does the Bosch GMS120-27 detect live electrical wiring?
It is designed to — but our live wall test showed mixed results. The device only responded to the electrical cable when it was placed directly against the tool rather than detecting it through the drywall under real conditions. For critical electrical safety checks, using a dedicated wire detector alongside the Bosch is recommended.
4. What batteries does the Bosch GMS120-27 use?
The GMS120-27 comes ready for immediate out-of-the-box use and included two AA batteries. It also supports an optional Bosch 3.7V Li-Ion rechargeable battery pack that charges via USB-C — sold separately. This dual power option makes it flexible for both occasional home use and extended professional job site use.
5. Is the Bosch GMS120-27 worth the price?
For trade professionals — electricians, plumbers, and contractors — who need reliable multi-material detection on the job, the $103.38 price tag is justified. It detects materials that most stud finders cannot, has a deep scan range, and is built to handle tough job site conditions with its IP54 rating and rubber casing. For basic home use where only stud detection is needed, a more affordable option like the Franklin Sensors ProSensor 710+ would be the better value.
6. What is the difference between the Bosch GMS120-27 and the Bosch D-TECT 120?
The GMS120-27 is designed primarily for drywall scanning — detecting studs, metal objects, and wiring in standard walls. The D-TECT 120 is a more advanced radar-based scanner capable of detecting objects in concrete, screed, and other dense materials at significantly greater depths. The D-TECT 120 is a higher-end professional tool with a considerably higher price point, while the GMS120-27 covers the most common wall scanning needs at a more accessible price.
Final Verdict: Bosch GMS120-27 Wall Scanner Review — Does It Live Up to the Hype?
The Bosch GMS120-27 is a strong, well-built wall scanner and one of the most capable all-around tools in its category. It does more than a basic stud finder, giving reliable results for wood studs, ducts, and copper pipes, along with deep scanning up to 4.7 inches. Features like dual power options and a durable IP54 build make it especially useful for professional work.
However, our live wall test showed a few limitations. Some readings (like pipes) were slightly off-center, electrical wire detection didn’t always work reliably under real drywall, and there was a false positive in one test. These issues mean it’s not perfect, especially when safety is critical.
Overall, the Bosch GMS120-27 is still worth it for electricians, plumbers, contractors, and remodelers who need a most capable all-around wall scanner for general detection before drilling. Just don’t rely on it as the only check for live wiring or safety-critical tasks.
